Pemko #317N Door Bottom, L Shaped Aluminum Casing with .25" Neoprene Bulb Seal

This Door Bottom seal has an aluminum casing with a .250" neoprene bulb seal. Alternate positions for installation are possible for optimal sealing potential. Various aluminum finishes are offered.

PRICED PER FOOT



See tabs below for additional information
    • SKU
      PK317AN
    • Market price:$23.98
      • save 10%
    • Starting price: Price: $21.58 per foot


    This Door Bottom seal has an aluminum casing with a .250" neoprene bulb seal. Alternate positions for installation are possible for optimal sealing potential.

    Dimensions and Installation: See product specs and installation instructions in tabs to the right.

    Neoprene Seal: Neoprene bulb seal presses down beneath the door to seal the gap. Neoprene is a stable rubber that maintains flexibility over a wide temperature range.

    Screws: Screws are colored to blend unobtrusively into casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, color may vary slightly and size may be enlarged to show detail. See our product specs for exact measurement.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click to view our
    Full Warranty Policy.

    Click here to return to our Door Bottoms/Sweeps category page.

      • SKU
        PK317AN
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      317AN, 317DN. 317GN
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Neoprene Rubber Seal
      • Mounting
        Underside Mount, Surface Mounted

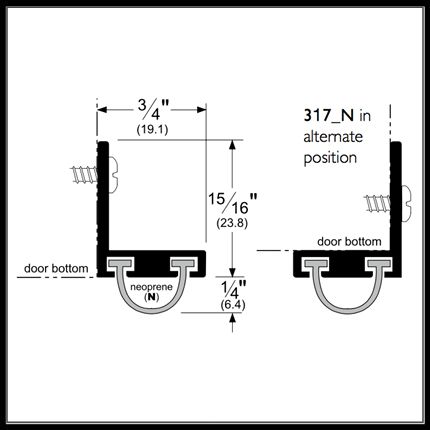

    • Dimensions
      • Seal Height
        1/4" Height
      • Total Height
        1-3/16" Height
      • Additional Dimensions
        Door seal is 3/4" thick
      • Length
        Custom Cut to Size
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        GreenGuard Gold Certified, BHMA Certified
      • ANSI Designation
        R3G416
      • Warranty
        5 Year Limited Warranty

    Click to Print



    P317N Product Specs:

    Pemko Aluminum Door Sweep with Neoprene .25" Bulb Seal

    Click to Print

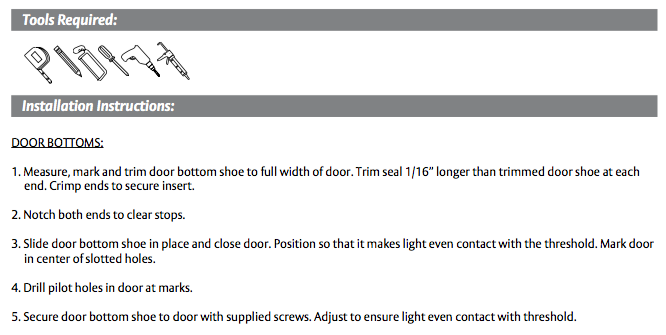

    P317N Installation Guide:

    Installation instructions for Pemko Aluminum L Shaped Door Sweep with Neoprene Bulb Seal

    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688
