Zero #153 Door Shoe Sweep, L Shaped with .187" Neoprene Fingered Seal

This Zero #153 door shoe can be used on various door widths. It is comprised of an aluminum anodized track that is fitted with durable fingered neoprene insert which creates a long-lasting reliable seal. Compatible with a hollow metal door or with a wooden door, with a hollow mortised channel. Available in options of finishes and is custom cut to size.

SOLD BY THE FOOT.

See tabs below for additional information

Finish
Length

Quantity

Add to compare

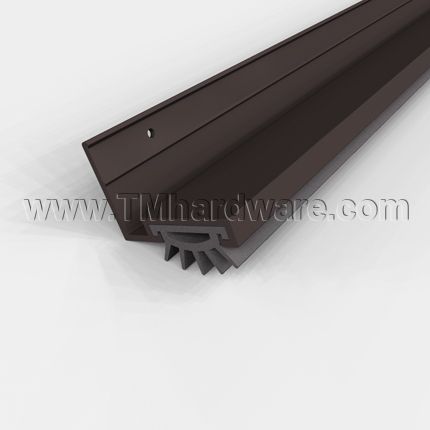

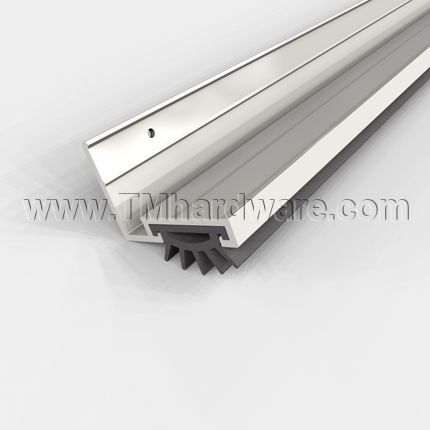

This smoke rated L shaped door shoe can be fit to doors of varied widths to create a reliable weatherstrip. It is comprised of an aluminum anodized track that is fitted with a solid neoprene fingered insert. The seal is made of high quality material that will last through many usages and will remain flexible in all weather conditions. Additionally, it conforms well to surface irregularities to ensure a proper seal at all times. Seal can fill small gaps up to .187".

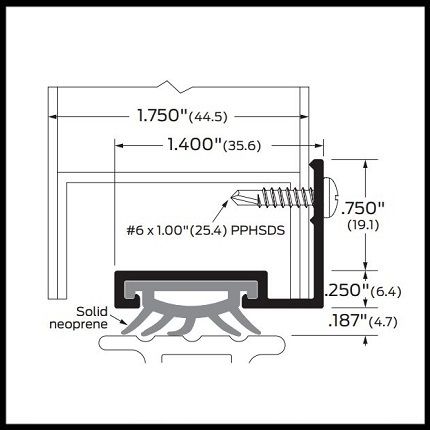

The design of the retainer is compatible with a hollow metal door or with on a wooden door that has a mortised channel of 1.024" x .25", see product specs.

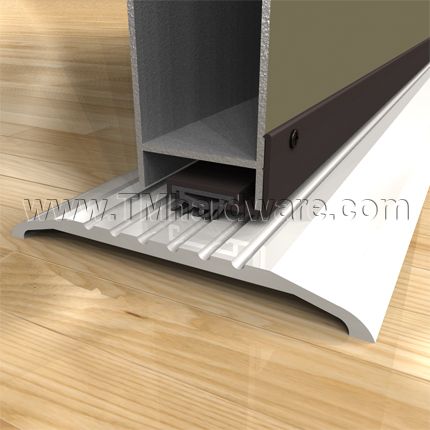

It is recommended that this product be used in conjunction with a doorway threshold. Product in detailed images are used in conjunction with our 5" Utility Threshold #655.

All installation screws provided. Screws are colored to blend unobtrusively into casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to return to our Door Hardware category page.

- SKU
  ZR153A
QuickShip
No
Manufacturer
Zero International
MPN
153
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Metal Door, Wooden Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Door Shoe Mount
Dimensions
- Seal Height
  1/8" Height
- Total Height
  1-1/8" Height
- Additional Dimensions
  Door seal is 1.400" thick
- Length
  Custom Cut to Size
- Door Thickness
  1-3/4" Thick
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)

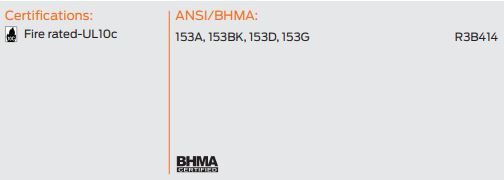

Compliance Details
- Compliance Details
  Fire Rated
- ANSI Designation
  R3B414
- Warranty
  1 Year Limited Warranty

Click to Print

product specs 153

compliance 153
