Zero #253 Door Sweep, Mortised Track with .187" Fingered Neoprene Seal

Need it sooner? Select sizes are in stock, ready to ship within 1 business day. See our Barzen Door Sweep - Quick Ship.

This Zero #253 door bottom sweep provides reliable sill protection, while maintaining the clean and neat look of the door. It is fitted with a smoke rated solid neoprene fingered insert that will effectively minimize infiltration of dust, smoke, drafts and moisture. Available in aluminum mill finish, and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      ZR253
    • Market price:$7.08
      • save 5%
    • Starting price: Price: $6.73 per foot


    This smoke rated door sweep provides reliable sill protection while still maintaining the clean and neat look of the door. It is comprised of an aluminum casing which is fully mortised within a slot of 1.024" (w) x .25" (h). The track is fitted with a solid neoprene fingered insert which can fill gaps up to .187". The seal is made with high quality material that will last through many usages and ensure smooth operation. The seal remains flexible in all weather conditions and conforms well to surface irregularities.

    It is recommended that this product be used in conjunction with a Doorway Saddle.

    The fully mortised aspect of this product makes it ideal for high end designer doors and luxury hotels and condo units that seek to maintain a clean look for on doors.

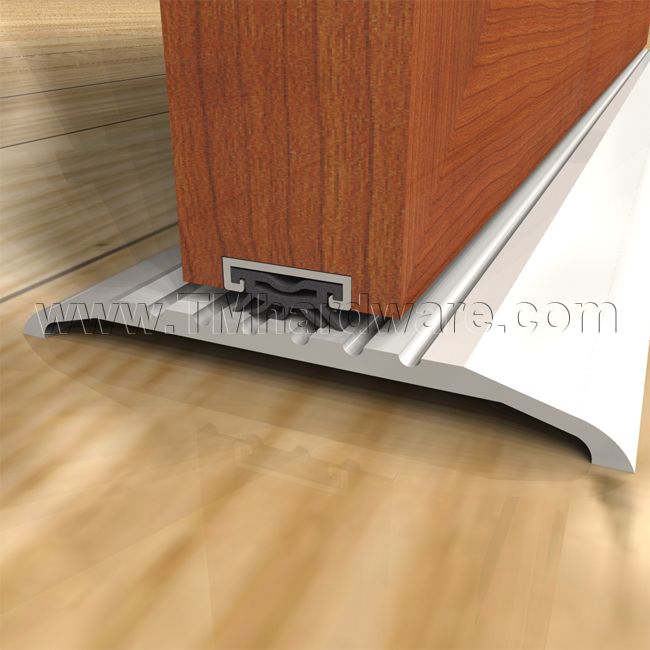

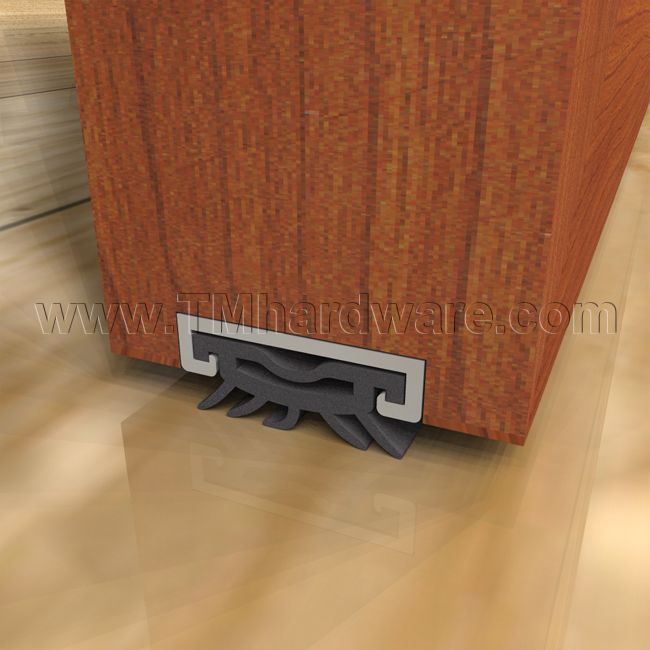

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

     For a surface mounted option, see our Zero International #111 U-Shaped Door Shoe Sweep with Fingered Neoprene Seal.

      • SKU
        ZR253
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      253
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Neoprene Rubber Seal
      • Mounting
        Fully Mortised
    • Dimensions
      • Seal Height
        .187" Height
      • Total Height
        .437" Height
      • Additional Dimensions
        Door seal is 1.024" thick
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 1.00" (25.4) PPHSDS Provided
    • Special Features
      • Add Unnotched Seal
        Yes
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28)

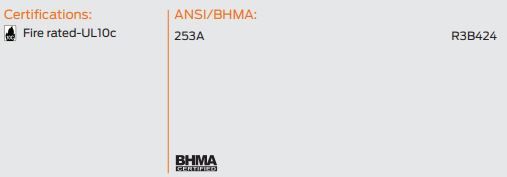

    • Compliance Details
      • Compliance Details
        Smoke Rated, Fire Rated, BHMA Certified
      • ANSI Designation
        R3B424

    compliance details z253
