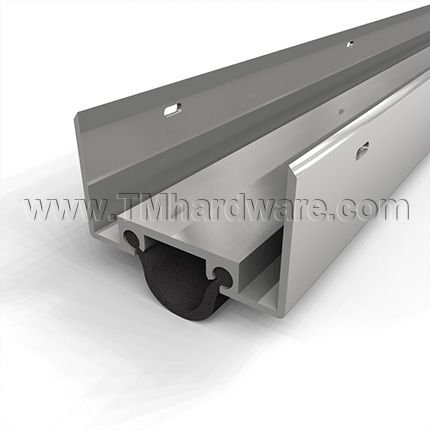

NGP 15N Door Shoe Sweep, U Shaped Aluminum Casing with a .5" Neoprene Seal for Hollow Metal Doors

NGP 15N Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .5". It is compatible with 1.75" hollow metal doors. Comes with a neoprene seal. Available in various aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Length

Quantity

Add to compare

NGP 15N Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .5".

Seals: Contains a .5" Black Neoprene Seal. It has very good abrasion resistance, tensile strength and memory.

Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 26N Door Shoe Sweep, U Shaped Aluminum with .75" Neoprene Seal

- SKU
  NG15NA
QuickShip
No
Manufacturer
National Guard Products
MPN
15N
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  -20°F thru 200°F
- Door Type
  Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Door Shoe Mount

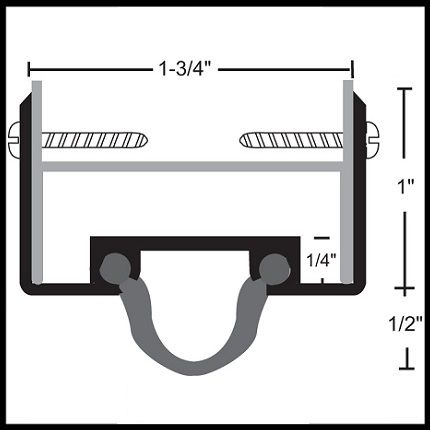

Dimensions
- Seal Height
  1/2" Height
- Total Height
  1-1/2" Height
- Additional Dimensions
  Door seal is 1-3/4" thick
- Length
  Custom Cut to Size
- Door Thickness
  1-3/4" Thick
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 3/4" stainless steel SMS screws provided
Finishes
- Finish

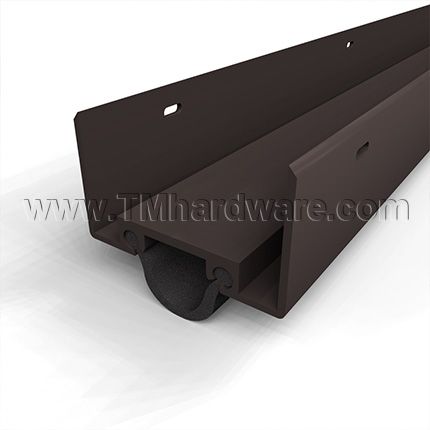

  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  Smoke Rated, Fire Rated, BHMA Certified, UL Classified, Air Infiltration Rated
- ANSI Designation
  R3B416
- Warranty
  3 Year Limited Warranty

Click to Print

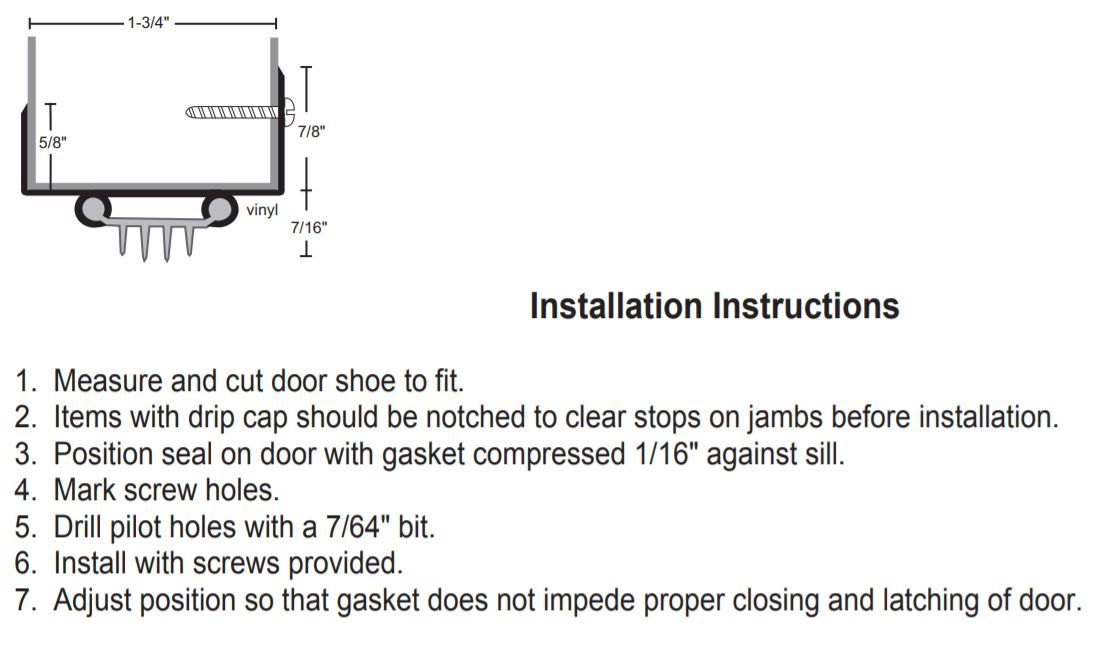

Click to Print Installation Guide

Anodized Aluminum complies with ANSI/BHMA Codes US28 / 628
