NGP 200S Door Sweep, 1.25" Aluminum, Brass, or Stainless Steel Casing with .4375" Silicone Seal
NGP 200S door sweep, with a 1.25" sleek casing, is fitted with a silicone extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Casing comes in aluminum, brass, and stainless steel with choice of finishes. Length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 200S door sweep, with a 1.25" sleek casing, is fitted with a silicone extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface.
Seal Material: Gray Silicone. Seal has very good abrasion resistance, tensile strength, and memory.

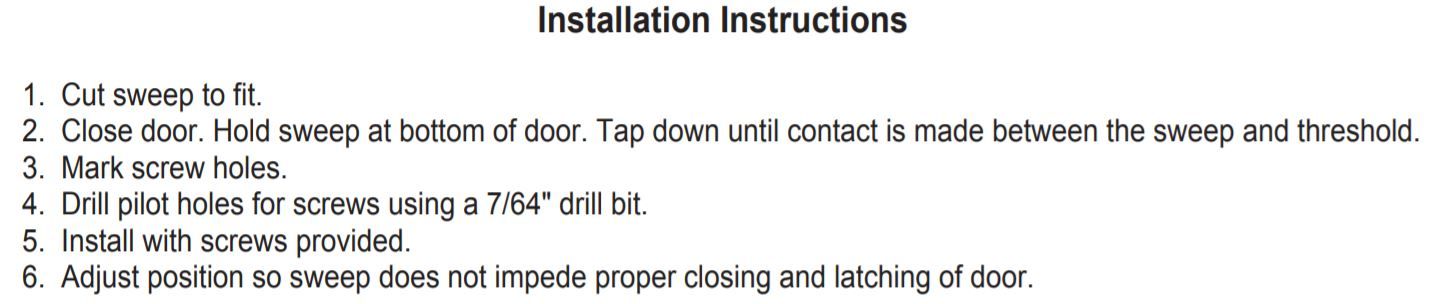

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
See also our NGP 200U Door Bottom, Aluminum, Bronze, or Stainless Steel Casing with .375" Polyurethane Seal
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN200S
- About this Product
-
Door Shoe Retainer MaterialAluminum, Stainless Steel, Brass
-
Temperature Range-100°F to 500°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeSilicone Rubber Seal
-
MountingSurface Mounted
-

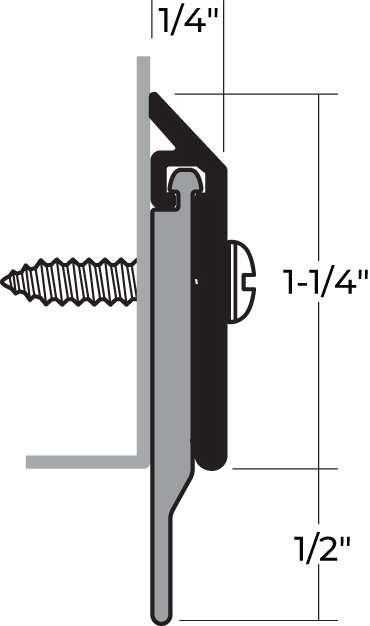

- Dimensions
-
Seal Height7/16"
-
Total Height1-11/16"
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation Screws#6 x 3/4" stainless steel sheet metal screws provided
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Bronze Finish, Dark Bronze Anodized Aluminum (313), Satin Stainless Steel (US32D)
-
- Compliance Details
-
Compliance DetailsFire Rated, Air Infiltration Rated, Smoke Rated, BHMA Certified
-
ANSI DesignationR3E436
-
Warranty3 Year Limited Warranty
-
