NGP 312V x 131N Accoustical Door Shoe, Aluminum Track with Vinyl Fins and Neoprene Sponge Seal

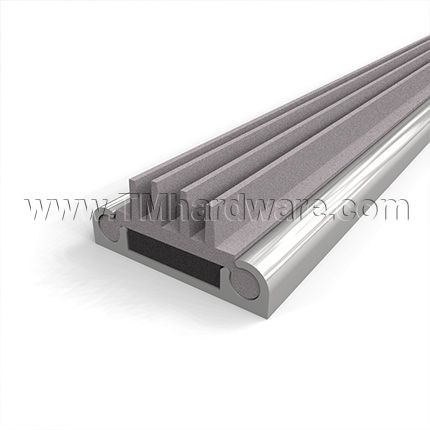

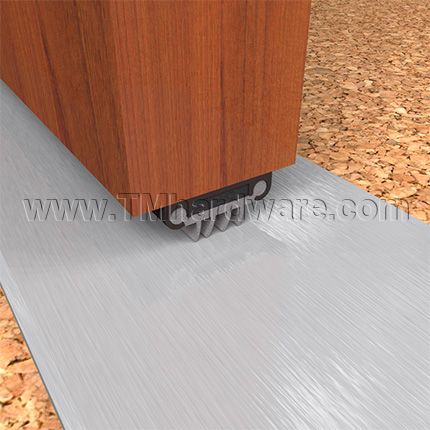

NGP 312V x 131N Acoustical Door Shoe is comprised of a 1.1875" aluminum track with a vinyl fins seal, and an optional neoprene sponge seal that prevents sound, air, light, and moisture from infiltrating the gap under the door. Available in choice of finishes and length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 312V x 131N Acoustical Door Shoe is comprised of a 1.1875" aluminum track with a vinyl fins seal, and an optional neoprene sponge seal that prevents sound, air, light, and moisture from infiltrating the gap under the door.
Seals: Contains a Vinyl Fins Seal and an optional Neoprene Sponge Seal, 7/16" Height. Seal is flame and moisture resistant, has oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.
Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional door shoes see our NGP 313V Door Shoe Sweep, L Shaped Aluminum Casing with .1875" Vinyl Finned Seal for Hollow Metal Doors
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN312Vx131N
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range0°F thru 140°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeVinyl Rubber Seal
-
- Dimensions
-

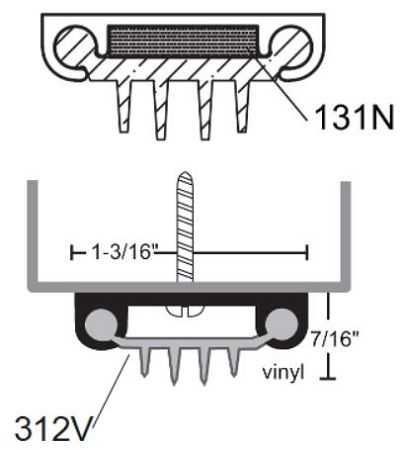

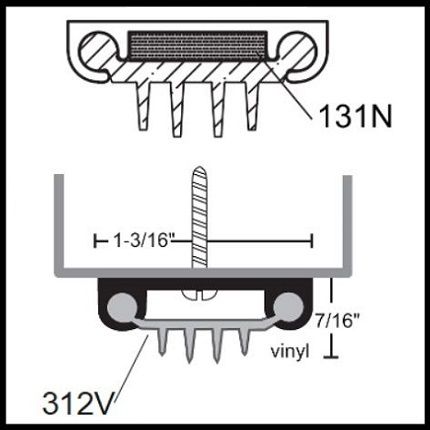

Seal Height7/16" Height
-
Total Height1-5/16" Height
-
Additional DimensionsDoor seal is 1-3/16" thick
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation Screws#6 x 3/4" stainless steel SMS provided
-
- Finishes
-

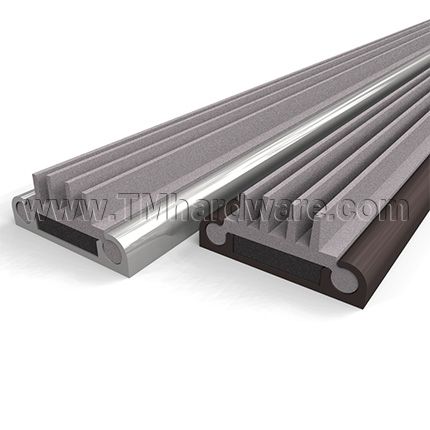

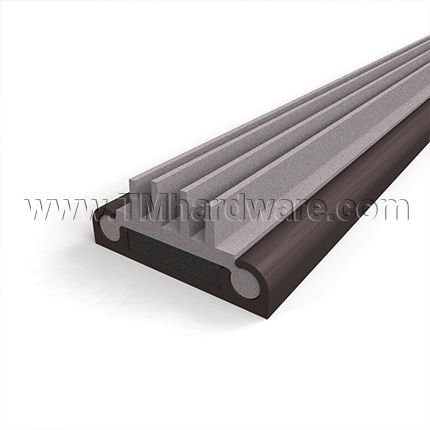

FinishDark Bronze Anodized Aluminum (313), Mill Finish Aluminum (US27)
-
- Compliance Details
-
Compliance DetailsUL Classified, Fire Rated, Air Infiltration Rated, Smoke Rated, Sound Rated
-
ANSI DesignationR3C166
-
Warranty3 Year Limited Warranty
-
