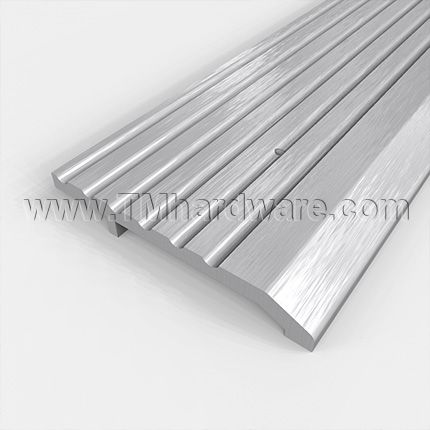

NGP 324 Half Threshold, 4" Aluminum, .5" Height

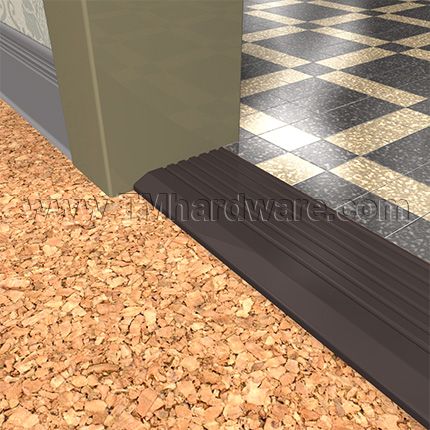

NGP 324 Half Threshold has a width of 4" with an offset of .5" which is a simple way to correct a floor offset between rooms and eliminate the tripping hazard associated with differences in floor surface heights. This threshold is wheelchair accessible. Available in two aluminum finishes and length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 324 Half Threshold Key Features:
Material: Aluminum alloy 6063
Width: 4"
Height: .5" (1/2")
Length: Custom cut to size.Â

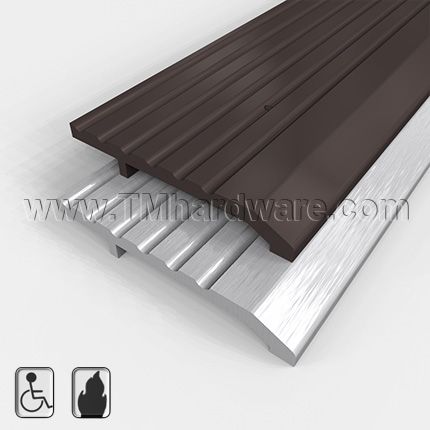

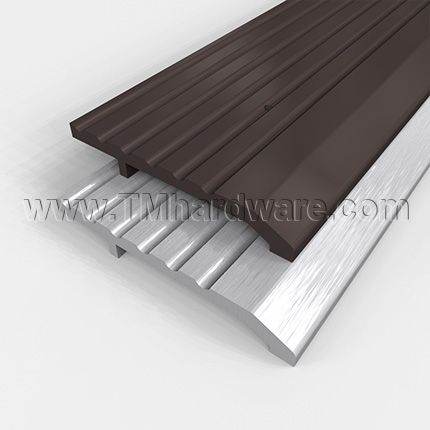

Finishes: Mill Aluminum, Dark Bronze Anodized
Weight: 1.20Â lbs/ft.

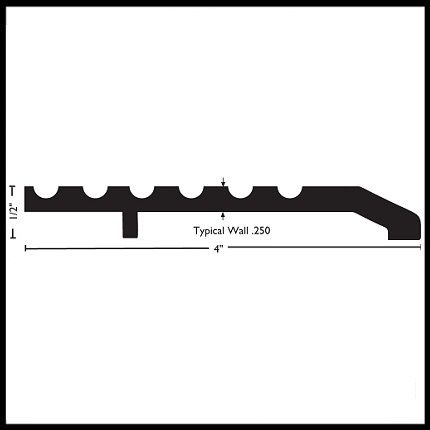

Typical Wall Thickness: .250"Â
Compliance Details:Â ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs;Â UL Listed;Â ANSI/BHMA Certified;Â Positive Pressure Certified.
Installation: See Installation Guide tab.
- #10 x 1-1/2" FH zinc plated wood screws included, DKB supplied with DKB threshold.
Drilling: Threshold is drilled along the center line in standard factory locations.
Options (Can be purchased through our office at 845-388-1300):Â
- Slip-Resistant Finish
- Vinyl foot seal used instead of caulking to increase the weather resistance of the threshold
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3Â year guarantee against defects in material and workmanship.
 Click here to view our Full Warranty Policy.
For additional half thresholds, see our NGP 325 Half Threshold, 5" Aluminum or Brass with .5" Height.
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN324
- Dimensions
-
Overall Height.5" Height
-
Overall Width4" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.250" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeHalf Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-
FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
