NGP 325HD Half Threshold, 5" Aluminum Heavy Duty Up to 10,000 lbs., .5" Height

NGP 325HD Half Threshold, 5" Aluminum Heavy Duty Up to 10,000 lbs., .5" Height
National Guard Products

NGP 325HD Heavy Duty Half Threshold has a width of 5" with a clearance of .5" which creates a barrier against dirt, dust, drafts and light infiltration. This heavy duty threshold can accomodate up to 10,000 lbs. and is wheelchair accessible. Available in two finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG325HD
    • Market price:$47.85
      • save 15%
    • Starting price: Price: $40.67 per foot


    NGP 325HD Heavy Duty Half Threshold Key Features:

    For use where forklift or vehicular traffic occurs

    Recommended for delivery/storage doorways where heavier loads travel. It can accomodate up to 10,000 lbs.

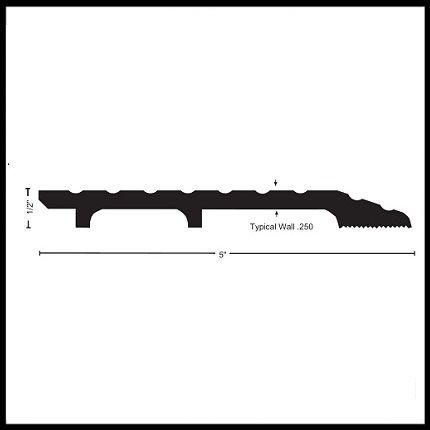

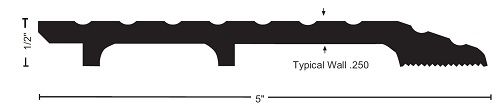

    Width: 5"

    Height: .5" (1/2")

    Length: Custom cut to size.

    Weight: 1.65 lbs/ft.

    Typical Wall Thickness: .250"

    Compliance Details: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs, UL Listed, ANSI/BHMA Certified, Positive Pressure Certified.

    Installation: See Installation Guide tab.

    • If threshold is being drilled into concrete, an Expansion Anchor is recommended.
    • #10 x 1-1/2" FH zinc plated wood screws included, DKB supplied with DKB threshold.

    Drilling: Threshold is drilled along the center line in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300):

    • Slip-Resistant Finish - recommended in moisture prone areas

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional thresholds, see our NGP 426HD Heavy Duty Utility Threshold 6" Aluminum, .5" Height.

      • SKU
        NG325HD
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      325HD
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
      • Thickness
        .250" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Half Threshold
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    All finishes comply with BHMA / ANSI Codes

    • Mill Finish Aluminum - US27 / 719

    ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship

    Exception: Bronze Anodized products require 4 - 5 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, resalable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
