NGP 36V Door Shoe Sweep, U Shaped Aluminum Casing with Square Edges and a .4375" Vinyl Finned Seal
NGP 36V Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .4375". It is compatible with 1.75" thick doors. Comes with a vinyl finned seal and square edges. Available in two aluminum finishes and length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 36V Door Shoe with U Shaped Aluminum Casing is ideal for protecting the bottom of doors while sealing the gap up to .4375". It is compatible with 1.75" thick doors. Comes with a vinyl finned seal and square edges.
Seals: Contains a .4375" Gray Vinyl Fin Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

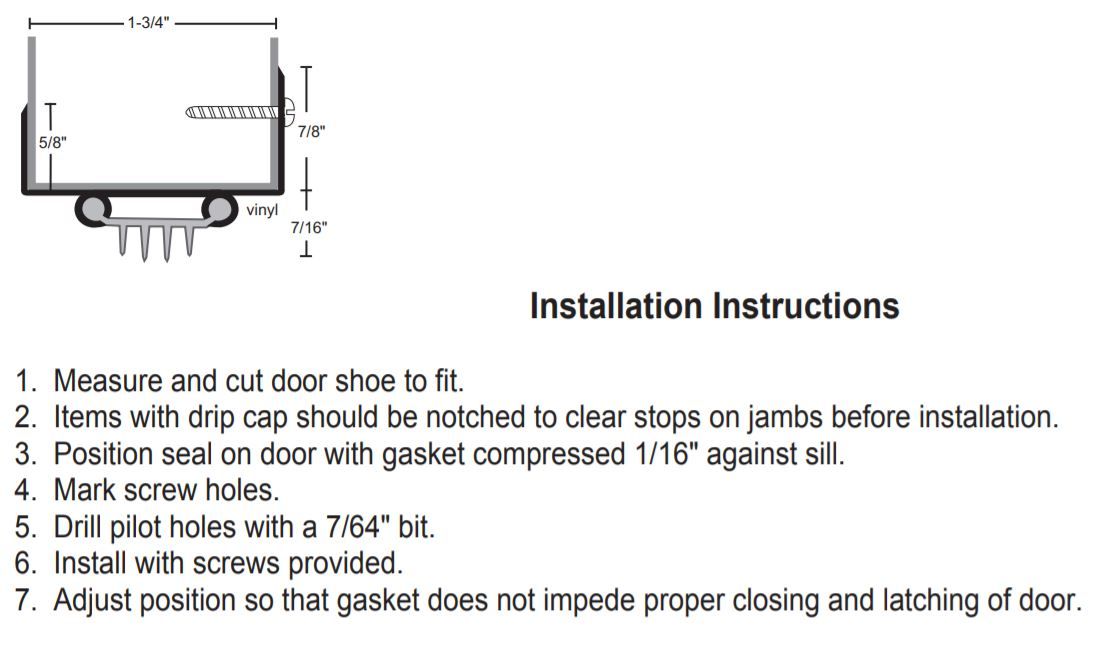

Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

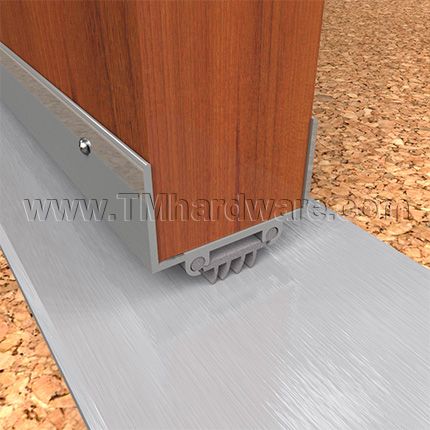

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional Door Shoes see our NGP 31V x 131N Accoustical Door Shoe Sweep, Aluminum Casing with .1875" Vinyl Finned Seal and Neoprene Insert
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN36V
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range0°F thru 140°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeVinyl Rubber Seal
-
MountingDoor Shoe Mount
-

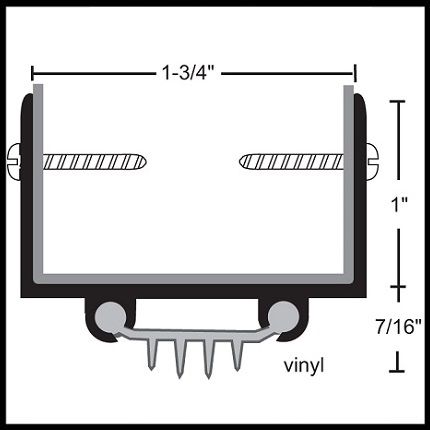

- Dimensions
-
Seal Height7/16" Height
-
Total Height1" Height
-
LengthCustom Cut to Size
-
Door Thickness1-3/4" Thick
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation Screws#6 x 3/4" stainless steel SMS
-
- Finishes
-

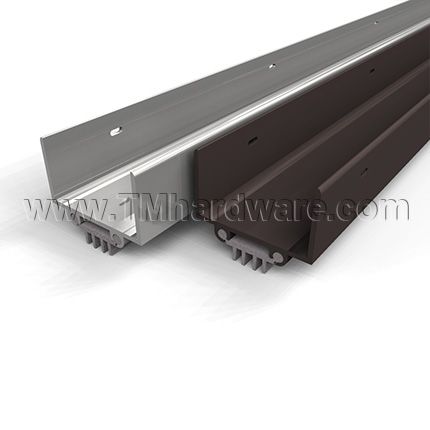

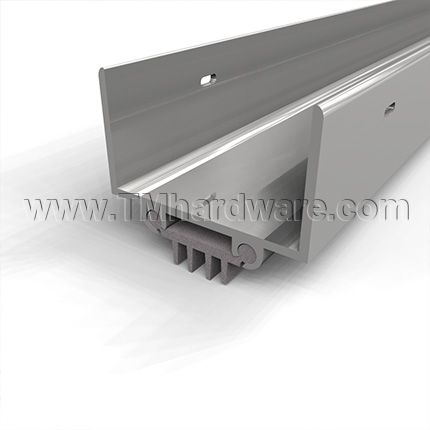

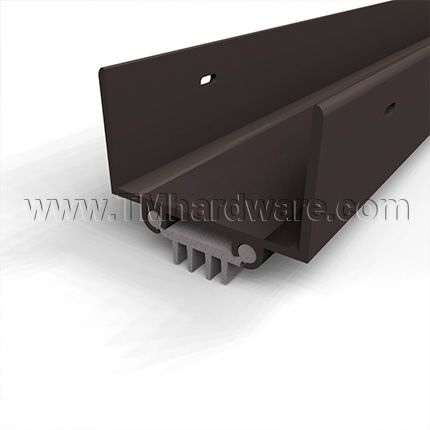

FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsUL Classified, Air Infiltration Rated, Smoke Rated
-
Warranty3 Year Limited Warranty
-
