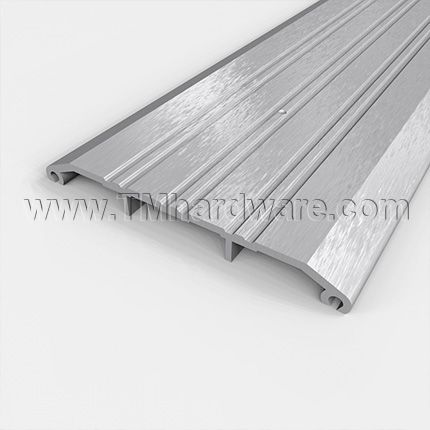

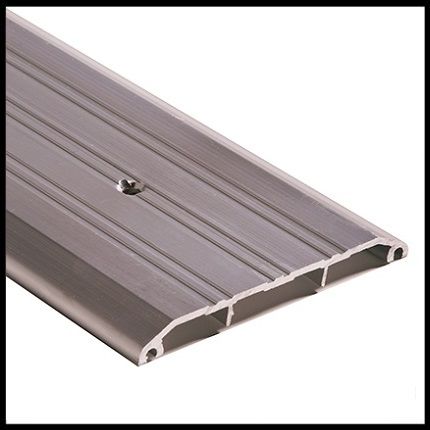

NGP 425E Utility Threshold, 5" Aluminum, .5" Height

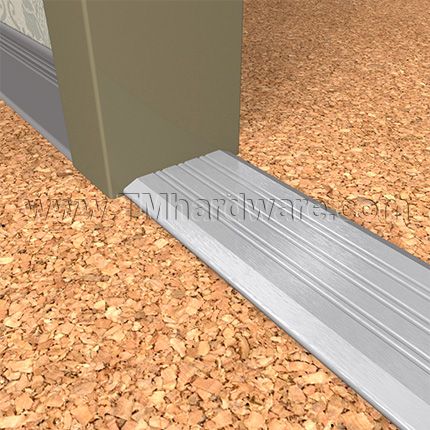

NGP 425E Utility Threshold has a width of 5" with a clearance of .5" which creates a barrier against dirt, dust, drafts and light infiltration. This threshold is wheelchair accessible. Available in two finishes and length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 425E Utility Threshold Key Features:
Width: 5"
Height: .5" (1/2")
Length: Custom cut to size.
Weight: .80 lbs/ft.
Typical Wall Thickness: .109"
Compliance Details: ADA Compliant, UL Listed, ANSI/BHMA Certified, Positive Pressure Certified.
Installation: See Installation Guide tab.
- If threshold is being drilled into concrete, an Expansion Anchor is recommended.
- #10 x 1-1/2" FH zinc plated wood screws included, DKB supplied with DKB threshold.
Drilling: Threshold is drilled along the center line in standard factory locations.
Options (Can be purchased through our office at 845-388-1300):
- Slip-Resistant Finish
- Vinyl Foot Seal instead of caulking to increase the weather resistance of the threshold
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional thresholds, see our NGP 426E Utility Threshold with .5" Height.
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN425E
- Dimensions
-
Overall Height.5" Height
-
Overall Width5" Width
-
Threshold LengthCustom Cut to Size
-
Required Door Clearance.625" Height
-
Thickness.109" Thick
-
- Product Design
-
Flat Saddle DesignFluted (Grooved) Design
-
Threshold TypeFlat Utility Threshold
-
MaterialAluminum
-
- Installation
-
Drilling HolesDrilling holes provided
-
FastenersFasteners Provided
-
- Finishes
-

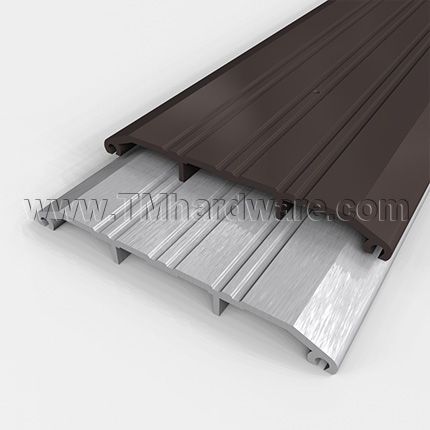

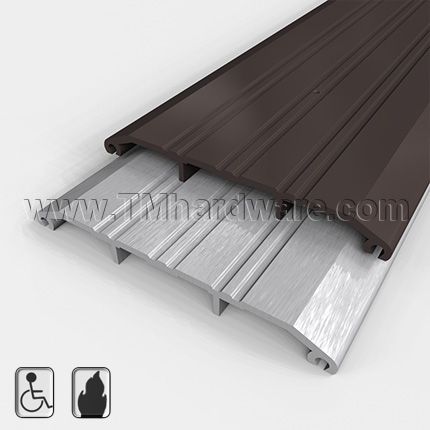

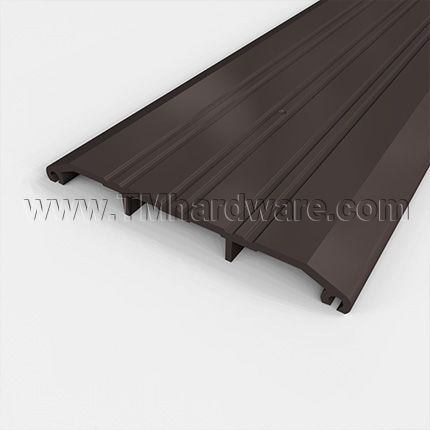

FinishMill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Warranty3 Year Limited Warranty
-
