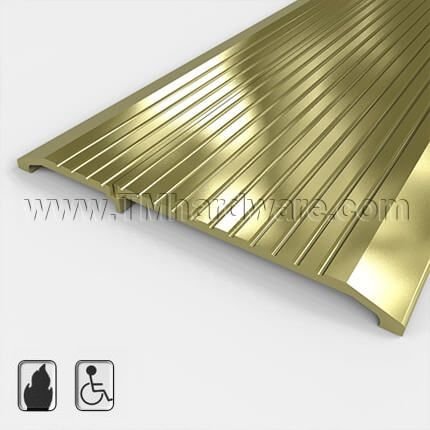

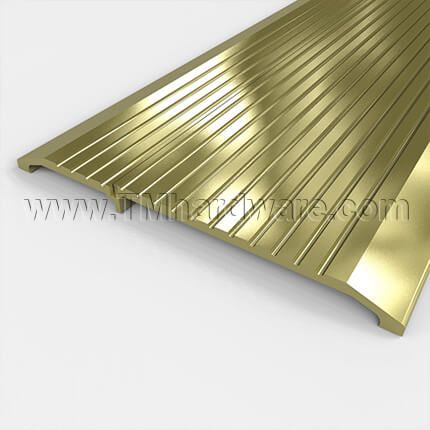

NGP 428BR Utility Threshold, 8" Brass, .5" Height

NGP 428BR Utility Threshold has a width of 8" with a clearance of .5" which creates a barrier against dirt, dust, drafts and light infiltration. Available in satin finish bronze and length is custom cut to size.

See full product details and specs in the tabs below

PRICED PER FOOT

See tabs below for additional information

Length

Quantity

Add to compare

NGP 428BR Utility Threshold Key Features:

Material: Alloy CDA 385 (Copper Alloy No. C38500)

Width: 8"

Height: .5" (1/2")

Length: Custom cut to size.

Weight: 5.06 lbs/ft.

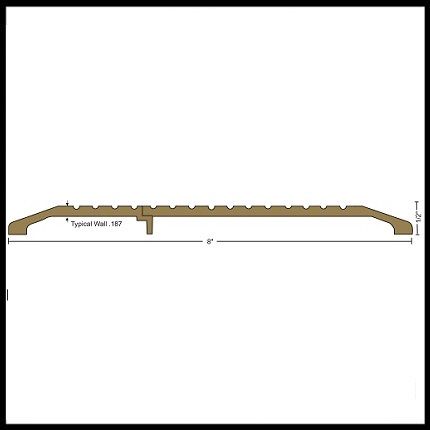

Typical Wall Thickness: .187"

Finish: Satin Finish Bronze

Compliance Details: ADA Compliant, UL Listed, ANSI/BHMA Certified, Positive Pressure Certified.

Installation: See Installation Guide tab.

If threshold is being drilled into concrete, an Expansion Anchor is recommended.
#10 x 1-1/2" FH brass wood screws included.

Drilling: Threshold is drilled along the center line in standard factory locations.

Options (Can be purchased through our office at 845-388-1300):

Slip-Resistant Finish
Polished (721) Finish
Dark Oxidized Oil Rubbed (722) Finish
Vinyl Foot Seal instead of caulking to increase the weather resistance of the threshold

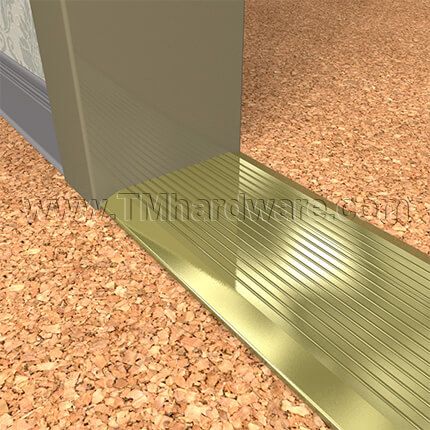

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional thresholds, see our NGP 429E Utility Threshold with .5" Height.

- SKU
  NG428BR
QuickShip
No
Manufacturer
National Guard Products
MPN
428BR
Dimensions
- Overall Height
  .5" Height
- Overall Width
  8" Width
- Required Door Clearance
  .625" Height
- Thickness
  .187" Thick
Product Design
- Flat Saddle Design
  Fluted (Grooved) Design
- Threshold Type
  Flat Utility Threshold
- Material
  Brass
Installation
- Drilling Holes
  Drilling holes provided
- Fasteners
  Fasteners Provided
Finishes
- Finish
  Bronze Mill Finish (Brass)
Compliance Details
- Warranty
  3 Year Limited Warranty

Click to Print

All finishes comply with BHMA / ANSI Codes

Satin Finish Bronze - US4 / 728

Click to Print Installation Guide
