NGP 484BR Interlocking Threshold, 4" Brass Inswing with Water Return, .875" Height

This NGP high quality Interlocking Threshold prevents air, wind and water infiltration. It is ideal for an exterior door and is compatible with in-swing doors. The water return design catches moisture that passed over the threshold and returns it to the outside through a sloped drain pan. Length is custom cut to size.

See full product details and specs in the tabs below

PRICED PER FOOT

See tabs below for additional information
    • SKU
      NG-484BR
    • Market price:$217.50
      • save 20%
    • Starting price: Price: $174.00 per foot


    NGP Brass Interlocking Threshold Key Features:

    Material: Alloy CDA 385 (Copper Alloy No. C38500)

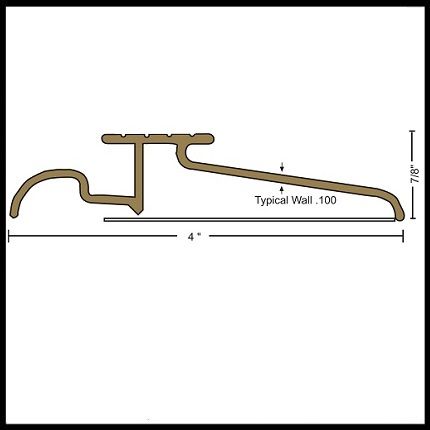

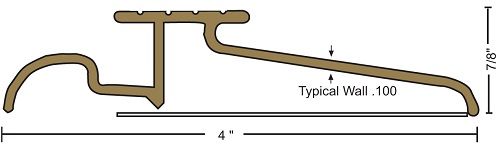

    Width: 4"

    Height: .875" (7/8")

    Length: Custom cut to size.

    Weight: 1.83 lbs/ft.

    Typical Wall Thickness: .100"

    Compliance Details: UL Listed, Positive Pressure Certified.

    Door: for in-swing doors.

    Interlocking: This product needs to be installed in conjunction with a J Interlocking Hook which is provided. The J Hook will interlock with the threshold when the door is closed, preventing infiltration of air, wind, and water.

    Weep Hole: The water return catches any water which may run under the door and returns it to the outside through interior weep holes. Select from the options above if weep holes are required.

    Drain Pan: The pan aids in draining internal water. Select from options above if pan is required.

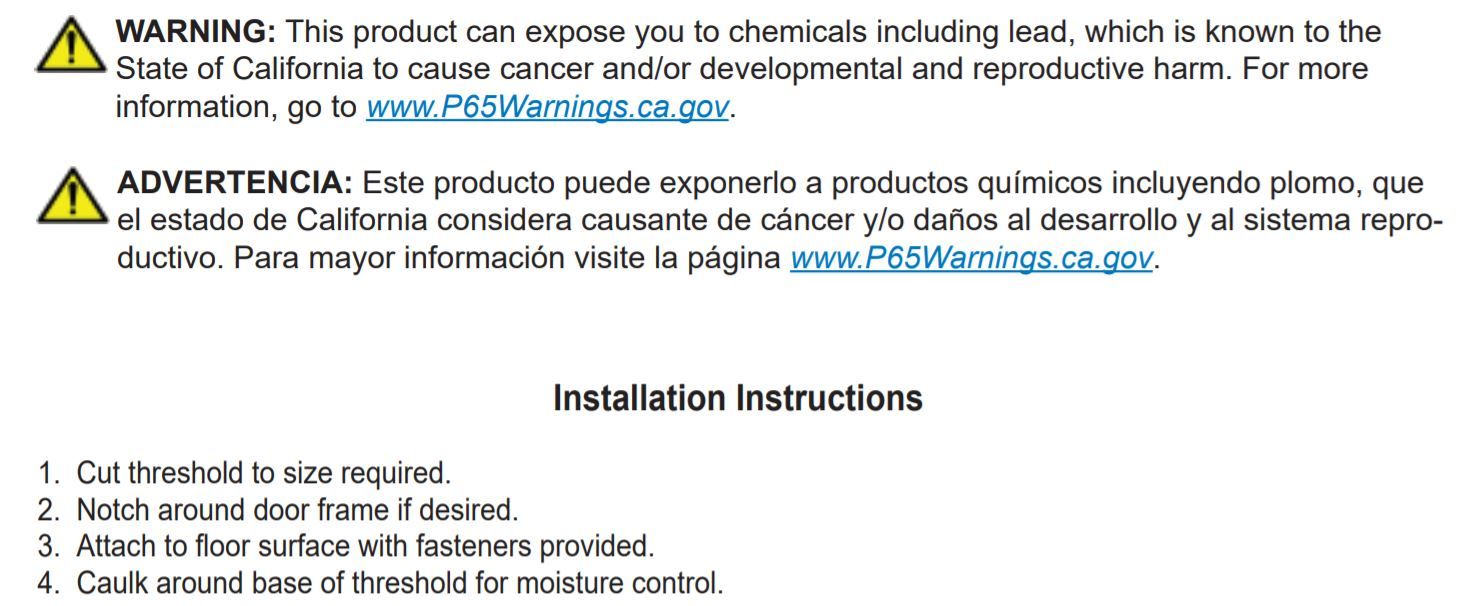

    Installation

    • Bronze Hook supplied, comes furnished with #18 x 7/8" nails. This is installed on the rabbeted underside of a door.
    • #10 X 1-1/2" brass wood screws included.

    Options (Can be purchased through our office at 845-388-1300):

    • SIA - Slip Resistant Finish
    • Polished (721) Finish
    • Dark Oxidized Oil Rubbed (722) Finish

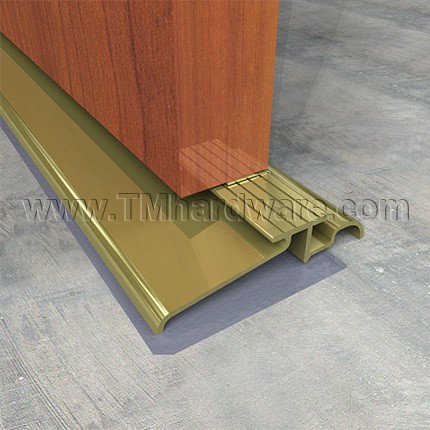

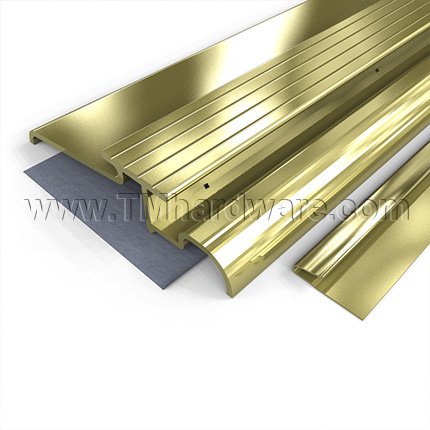

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional interlocking thresholds, see our NGP 80B Interlocking Accessory, J Hook

      • SKU
        NG-484BR
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      484BR
    • Drain Pan
      Not Required, Required
    • Weep Holes
      Not Required, Required
    • Dimensions
      • Overall Height
        .875" Height
      • Overall Width
        4" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        1" Height
      • Thickness
        .100" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Interlocking Threshold
      • Material
        Brass
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Bronze Mill Finish (Brass)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    Satin Finish Bronze complies with ANSI/BHMA US4 / 728
