NGP 5020 Self-Adhesive Weatherstrip, .5" Wide TPE Batwing Seal

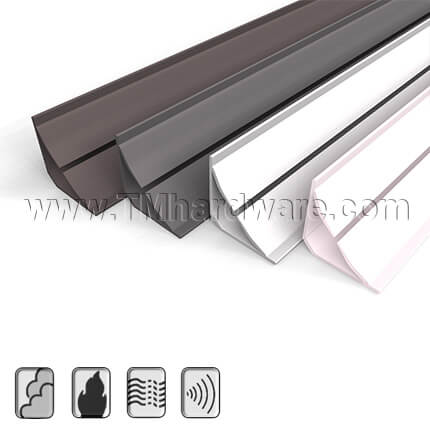

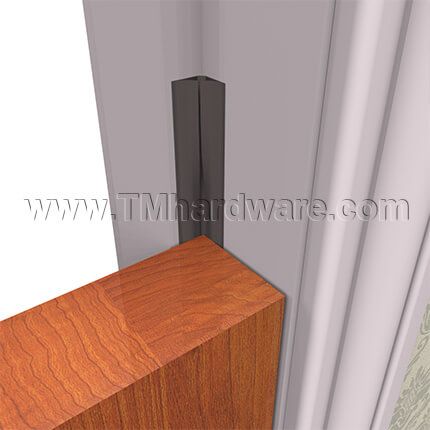

NGP 5020 Adhesive Weatherstrip TPE Batwing Seal can be installed onto the perimeter of a door frame to slow / prohibit the passage of smoke, fire, weather, sound and dirt. It is easily installed with a self-adhesive backing. Available in 4 colors and in various sized coils.

Priced per item - See full product details and specs in the tabs below.

See tabs below for additional information

Quantity

Add to compare

NGP 5020 Adhesive Weatherstrip, Batwing TPE Seal Seal Key Features:

Width: .5" (1/2")

Height: .5" (1/2")

Length: See sizing options. Coils can be easily sized with a household scissor, as needed.

Seal Material: TPE material is resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals.

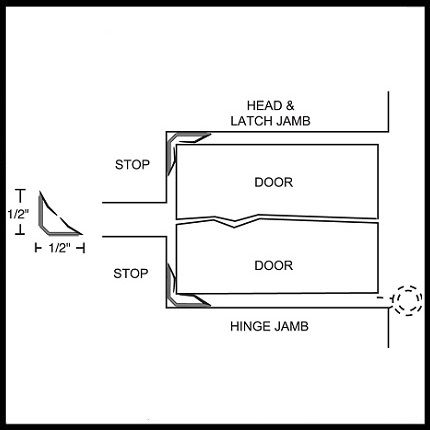

Batwing Design: The batwing design ensures a low closing force it begins compressing at 5/16" up to 1/16" gap.

Compliance Details: REACH and RoHS compliant; Smoke and draft control; UL Listed; ANSI/BHMA Certified; Positive Pressure Tested; Air Infiltration Rated; Anti-Microbial (clear weatherstrip is not anti-microbial).

Temperature Range:

-60°F to 275°F
End use temperature range of adhesive, long term exposure -30°F up to 250°F

Installation:

This gasket has a self-adhesive backing, for easy installation.
Modified acrylic pressure sensitive adhesive protected by release liner
Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less

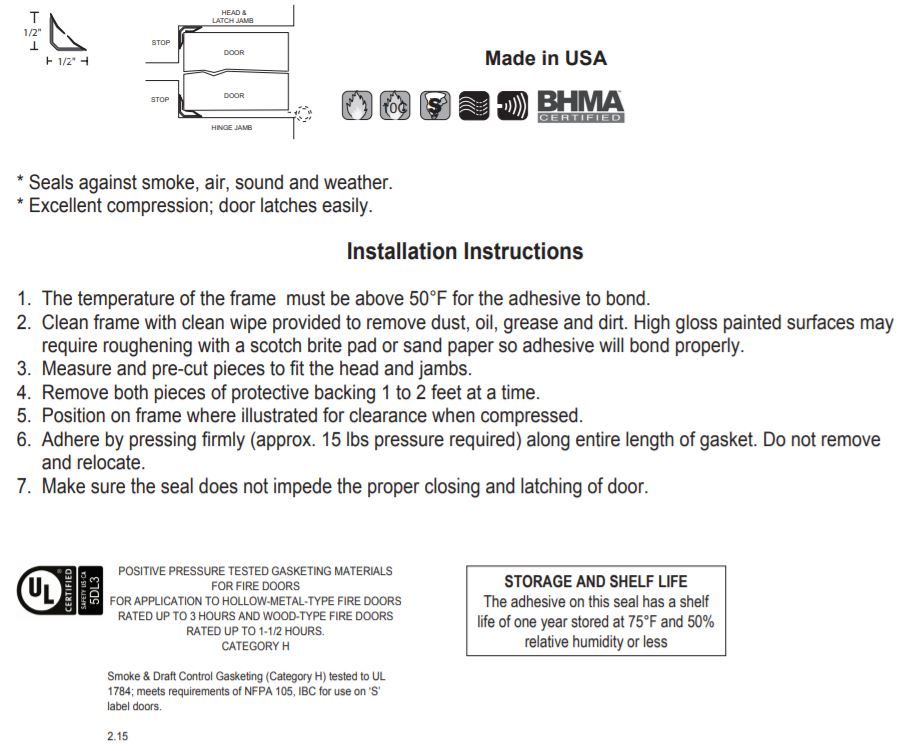

See Installation Guide tab for more info.

This gasket has a limited shelf-life. Product must be used within 1 year of purchase.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional weatherstripping, see our NGP 5025 Adhesive Weatherstrip, .5" Wide TPE Double Batwing Seal

- SKU
  NG5020CL3
QuickShip
No
Manufacturer
National Guard Products
MPN
5020
Length
36", 48", 72", 84", 94"
Finishes
- Finish
  Clear, Charcoal

Click to Print

Click to Print Installation Guide

REACH and RoHS compliant
