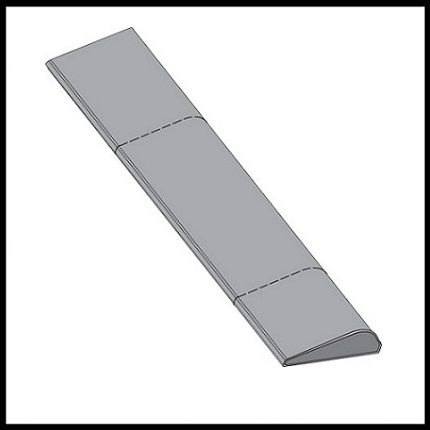

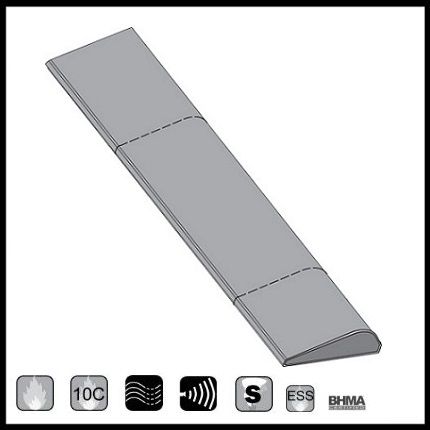

NGP 5050 Self-Adhesive Weatherstrip, .5" Wide Anti-Ligature Silicone Bulb
NGP 5050 Adhesive Weatherstrip Silicone Bulb Seal can be installed onto the perimeter of a door frame to slow / prohibit the passage of smoke, fire, weather, sound and dirt. This Anti-Ligature Seal comes with serrations every 8" designed to break apart, preventing it from being used to hang or strangle. It is best used in phsychiatric facilities, prisons, and treatment areas for safety. It is easily installed with a self-adhesive backing. Available in 4 silicone colors and in various sized coils.
Priced Per Foot - See full product details and specs in the tabs below.
NGP 5050 Adhesive Weatherstrip, Anti-Ligature Silicone Bulb Seal Key Features:
Width: .5" (1/2")
Height: .25" (1/4")
Length: See sizing options. Coils can be easily sized with a household scissor, as needed.
Seal Material: Silicone is resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals.
Bulb Design: The bulb design ensures a low closing force. It begins compressing at 1/4" (.25”) and compress to seal gaps as small as 1/16" (.0625”).
Anti-Ligature: Comes with serrations every 8" designed to break apart preventing it from being used to hang or strangle.
Applications include psychiatric facilities, prisons and other treatment facilities
Compliance Details: Edge Sealing System - category “G” for 20 minute rated category B wood doors perimeter application up to: single swing 4'0 x 8'0, pairs 8'0 x 8'0. Use 9550 at the meeting edge of pairs; Smoke and draft control - category “H”, up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors; UL Listed; ANSI/BHMA Certified, Accoustical Tested; Positive Pressure Tested; Air Infiltration Rated; Meets requirements of RoHS directive.
Temperature Range:
- -100°F to 500°F, remains flexible at extreme temperatures
- End use temperature range of adhesive, long term exposure -30°F up to 250°F
Installation:
- This gasket has a self-adhesive backing, for easy installation.
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- Modified acrylic pressure sensitive adhesive protected by release liner
- Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
- Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
- See Installation Guide tab for more info.
This gasket has a limited shelf-life. Product must be used within 1 year of purchase.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additonal weatherstripping, see our NGP 5050 Adhesive Weatherstrip, .5" Wide Silicone Bulb
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPNANTI-LIG 5050
-
Length10', 11', 12', 13', 14', 15', 16', 17', 18', 19', 20', 21', 22', 23', 24', 25', 26', 27', 28', 29', 30', 31', 32', 33', 34', 35', 36', 37', 38', 39', 40', 41', 42', 43', 44', 45', 46', 47', 48', 49', 50', 51', 52', 53', 54', 55', 56', 57', 58', 59', 60', 61', 62', 63', 64', 65', 66', 67', 68', 69', 70', 71', 72', 73', 74', 75', 76', 77', 78', 79', 80', 81', 82', 83', 84', 85', 86', 87', 88', 89', 90', 91', 92', 93', 94', 95', 96', 97', 98', 99', 100', 101', 102', 103', 104', 105', 106', 107', 108', 109', 110', 111', 112', 113', 114', 115', 116', 117', 118', 119', 120', 121', 122', 123', 124', 125', 126', 127', 128', 129', 130', 131', 132', 133', 134', 135', 136', 137', 138', 139', 140', 141', 142', 143', 144', 145', 146', 147', 148', 149', 150', 151', 152', 153', 154', 155', 156', 157', 158', 159', 160', 161', 162', 163', 164', 165', 166', 167', 168', 169', 170', 171', 172', 173', 174', 175', 176', 177', 178', 179', 180', 181', 182', 183', 184', 185', 186', 187', 188', 189', 190', 191', 192', 193', 194', 195', 196', 197', 198', 199', 200', 201', 202', 203', 204', 205', 206', 207', 208', 209', 210', 211', 212', 213', 214', 215', 216', 217', 218', 219', 220', 221', 222', 223', 224', 225', 226', 227', 228', 229', 230', 231', 232', 233', 234', 235', 236', 237', 238', 239', 240', 241', 242', 243', 244', 245', 246', 247', 248', 249', 250', 251', 252', 253', 254', 255', 256', 257', 258', 259', 260', 261', 262', 263', 264', 265', 266', 267', 268', 269', 270', 271', 272', 273', 274', 275', 276', 277', 278', 279', 280', 281', 282', 283', 284', 285', 286', 287', 288', 289', 290', 291', 292', 293', 294', 295', 296', 297', 298', 299', 300'
- Finishes
-
FinishBrown, Charcoal, Clear, White
-
