NGP 515 Half Threshold Extended Width Component, 3" Aluminum, .25" Height

NGP 515 Half Threshold Extended Width Component, 3" Aluminum, .25" Height
National Guard Products

NGP 515 Half Threshold is used as a bridge to connect two .25" half thresholds or to create a wider half threshold. This threshold is wheelchair accessible. It has a width of 3" and an offset of .25". Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG-515
    • Market price:$14.15
      • save 15%
    • Starting price: Price: $12.03 per foot

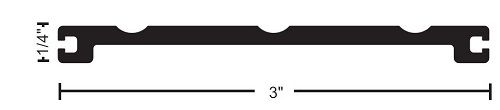

    NGP 515 Half Threshold Extended Width Component Key Features:

    This threshold can be used as bridge to connect two half thresholds together, to create a wider threshold. Or it can be used to make a wider half threshold.

    This threshold can be combined with NGP 215, 315, or 415 to create wider thresholds. It is furnished with 2 aluminum splines for field assembly.

    Material: Aluminum alloy 6063

    Width: 3"

    Height: .25" (1/4")

    Length: Custom cut to size.

    Finishes: Mill Aluminum, Dark Bronze Anodized

    Weight: .45 lbs/ft.

    Compliance Details: ADA Compliant; UL Listed; Positive Pressure Certified.

    Installation: See Installation Guide tab.

    • #10 x 1-1/2" FH zinc plated/brass wood screws included, DKB supplied with DKB threshold.

    Drilling: Threshold is drilled along the center line in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300):

    • Slip-Resistant Finish

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For additional half thresholds, see our NGP 315 Half Threshold, 3" Aluminum with .25" Height.

      • SKU
        NG-515
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      515
    • Dimensions
      • Overall Height
        .25" Height
      • Overall Width
        3" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .375" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Half Threshold
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    All finishes comply with BHMA / ANSI Codes

    • Mill Finish Aluminum - US27 / 719


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship

    Exception: Bronze Anodized products require 4 - 5 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, resalable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
