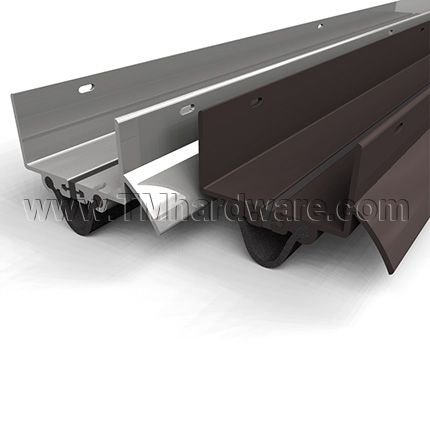

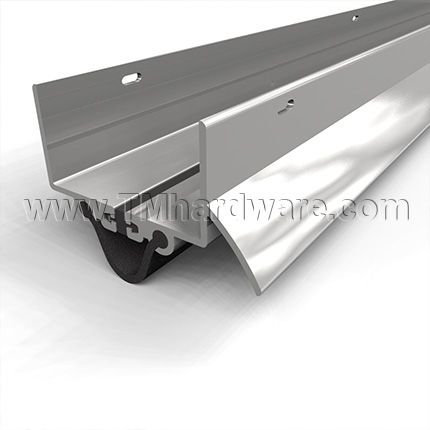

NGP 819N Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break and Rain Drip, .75" Neoprene Seal

NGP 819N Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break and Rain Drip, .75" Neoprene Seal
National Guard Products

This item has been discontinued.

For a similar product, see our NGP #319EV Door Shoe Sweep.

See tabs below for additional information
    • SKU
      NG819NA
    Call for price!
    845-388-1300

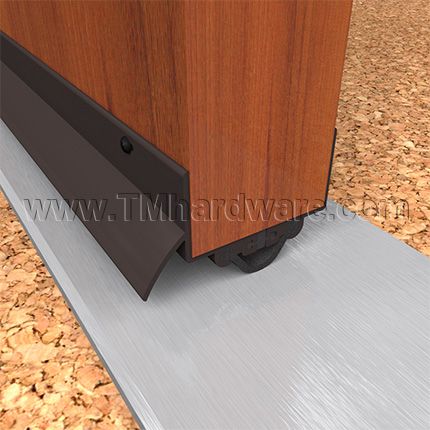

    NGP 819 Door Shoe combines a U Shaped Casing, Thermal Break, and Rain Drip to provide a superior seal at the bottom of doors. This model is made specifically for 1.75” doors and fills gaps of .75".

    Seals: Contains a .75"  Black Neoprene Seal. It has very good abrasion resistance, tensile strength and memory. The neoprene seal is flame and moisture resistant.

    Rain Drip Design: The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door and preventing seepage.

    Thermal Break: Thermal break door shoes feature a rigid PVC spline creating a separation to prevent the transfer of outside temperature and frost through the door shoe.

    Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional Door Shoes see our NGP 819 Door Shoe, U Shaped 1.75" Aluminum Casing with Thermal Break and Rain Drip, .6875" Thermoplastic Triple Fin Seal

      • SKU
        NG819NA
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      819N
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -20°F thru 200°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Neoprene Rubber Seal

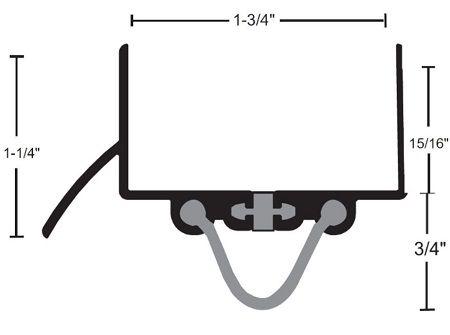

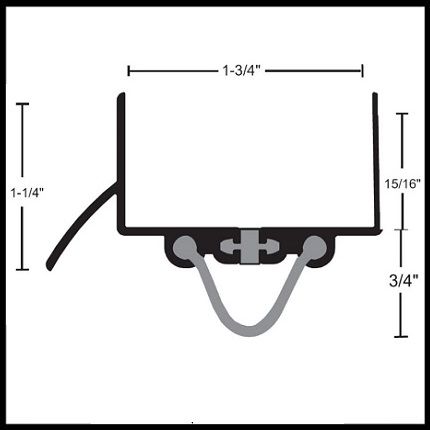

    • Dimensions
      • Seal Height
        3/4" Height
      • Total Height
        1-11/16" Height
      • Additional Dimensions
        Door seal is 1-3/4" thick
      • Length
        Custom Cut to Size
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Installation Screws
        #6 x 3/4" stainless steel SMS screws provided
    • Special Features
      • Rain Drip Cap
        Yes
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        BHMA Certified, Air Infiltration Rated
      • Warranty
        3 Year Limited Warranty
    • Anodized Aluminum complies with ANSI/BHMA Codes US28 / 628
    • BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
