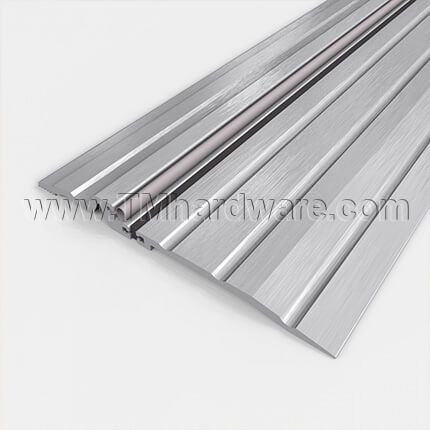

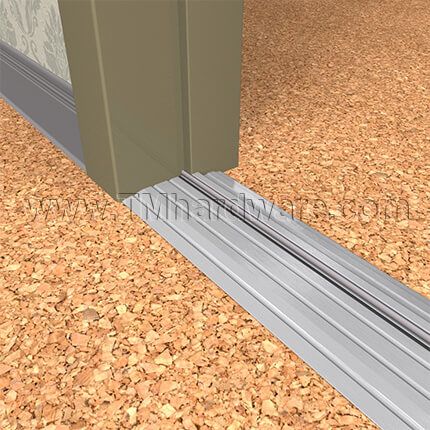

NGP 8533 Latching Panic Exit Threshold, 5.125" Aluminum with Thermal Break and Choice of Seals, .5" Height

NGP 8533 Latching Panic Exit Threshold, 5.125" Aluminum with Thermal Break and Choice of Seals, .5" Height
National Guard Products

NGP 8533 Latching Panic Exit Threshold  is designed to be used with a surface applied vertical rod exit device and as a door bumper with a seal at the bottom of doors. The thermal break creates a separation to prevent the transfer of outside temperature and frost through the threshold. It has a width of 5.125" with a full height of .5". Available in two aluminum finishes with a choice of seals. Length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG8533V
    • Market price:$26.80
      • save 15%
    • Starting price: Price: $22.78 per foot


    NGP 8533 Latching Panic Exit Threshold with Thermal Break Key Features:

    Threshold design is compatible with a surface applied vertical rod exit device.

    Material: Aluminum Alloy 6063, T5 Temper

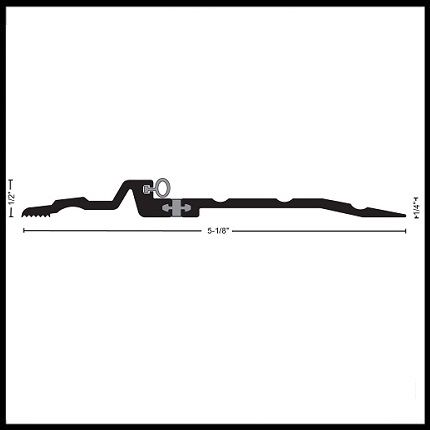

    Width: 5.125" (5-1/8")

    Height: .5" (1/2")

    Length: Custom cut to size

    Weight: .83 lbs./Ft.

    Inserts:  Gray Vinyl, Black Silicone, Black NGP-TPV

    Compliance Details: ADA Compliant.

    Installation: See Installation Guide tab.

    • If threshold is being drilled into concrete, an Expansion Anchor is recommended.
    • #10 x 1-1/2” FH zinc plated wood screws provided.
      • Dark Bronze Aluminum thresholds are supplied with dark bronze plated screws

    Drilling: Threshold is drilled in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300): Available with Slip Resistant Textured Finish

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For additional thresholds see our NGP 8633 Latching Panic Exit Threshold, 6.125" Aluminum with Thermal Break and Choice of Seals, .5" Height

      • SKU
        NG8533V
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      8533
    • Seal
      Vinyl, Silicone, NGP-TPV
    • Dimensions
      • Overall Height
        .5" Height
      • Overall Width
        5.125" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold, Thermal Break Threshold
      • Seal Type
        Vinyl Seal, Silicone Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish

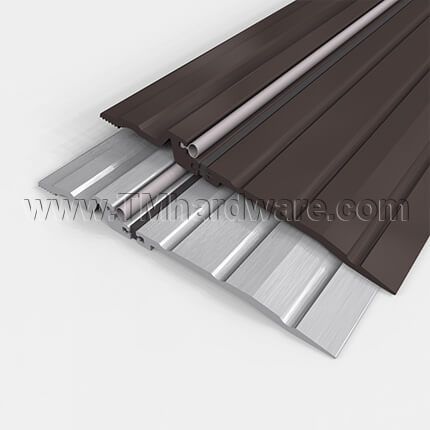

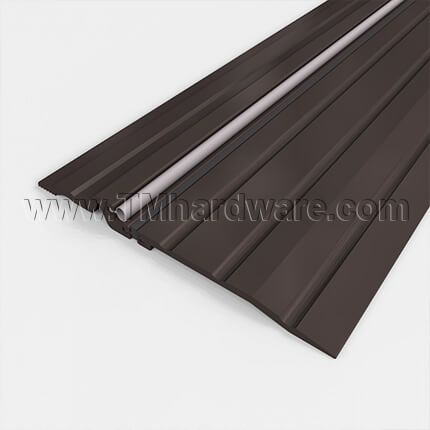

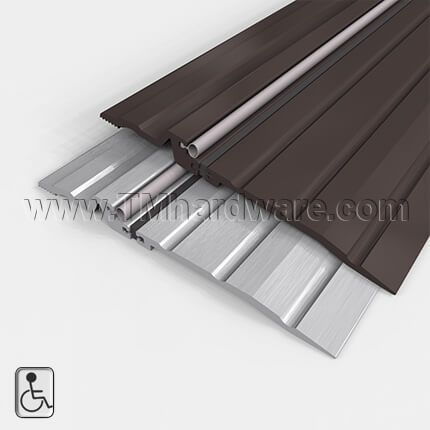

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    Mill Aluminum complies with ANSI/BHMA US27 / 627
