NGP 890 Rabbeted Threshold, 5" Aluminum with Choice of Seals, .75" Height

NGP 890 Rabbeted Threshold, 5" Aluminum with Choice of Seals, .75" Height
National Guard Products

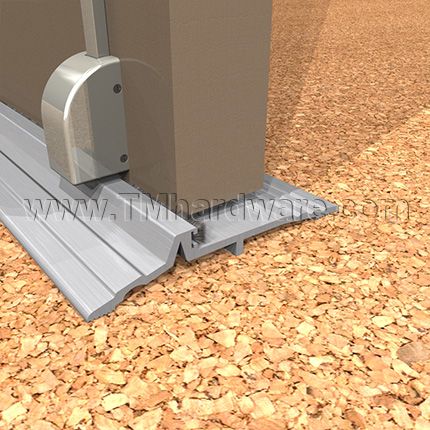

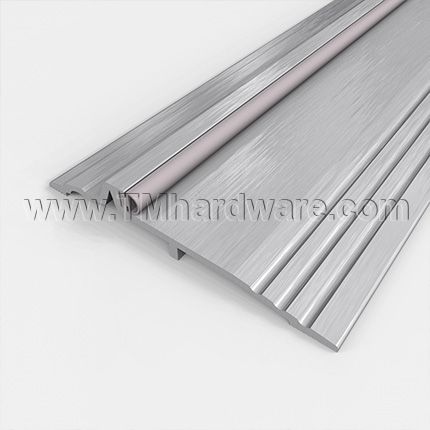

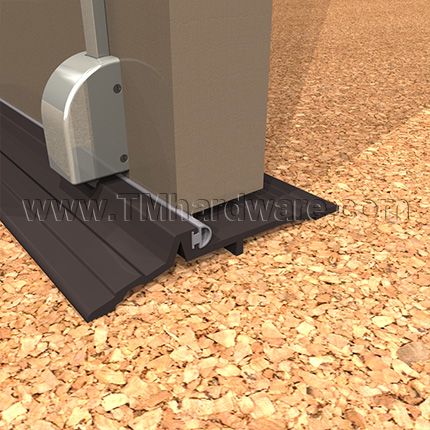

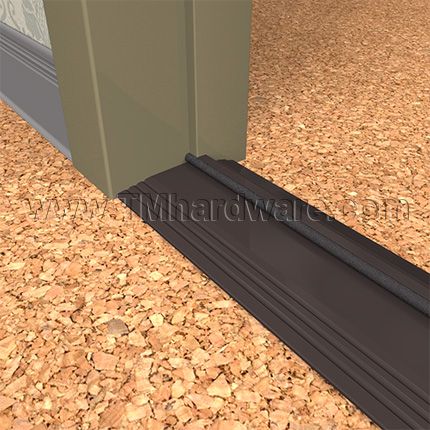

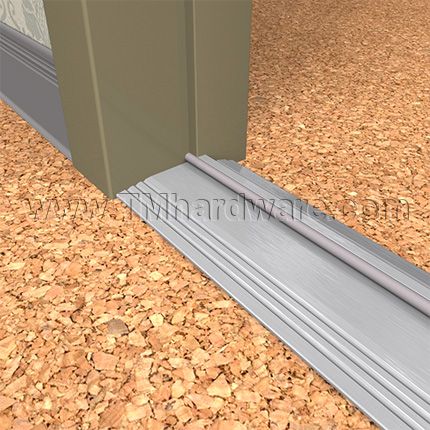

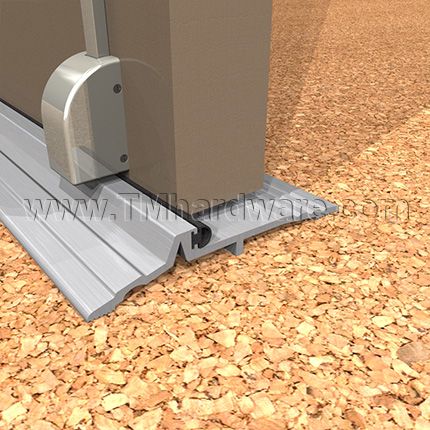

NGP 890 doorway threshold is fitted with a choice of seals to ensure a strong seal against dust, drafts and water from entering. Available in three high quality aluminum finishes. Length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG890V
    • Market price:$21.80
      • save 15%
    • Starting price: Price: $18.53 per foot


    NGP 890 Rabbeted Threshold Threshold Key Features:

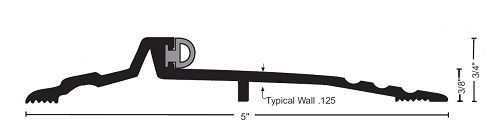

    Material: Aluminum Alloy 6063, T5 Temper

    Width: 5"

    Height: .375" (3/8")

    Total Height: .75" (3/4")

    Length: Custom cut to size

    Typical Wall Thickness: .125"

    Weight: .82 lbs./Ft.

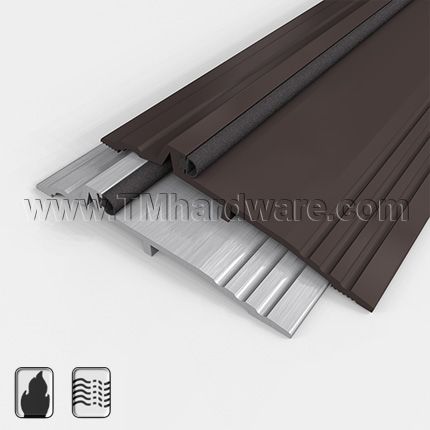

    Inserts:  Gray Vinyl, Black Silicone, Black NGP-TPV, Gray Pile

    Compliance Details: UL Listed, Air Infiltration Tested, Positive Pressure Certified.

    Installation: See Installation Guide tab.

    • If threshold is being drilled into concrete, an Expansion Anchor is recommended.
    • #10 x 1-1/2” FH zinc plated wood screws provided.
      • Dark Bronze Aluminum thresholds are supplied with dark bronze plated screws

    Drilling: Threshold is drilled in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300):

    • Slip Resistant Textured Finish for thresholds up to 24".
    • Vinyl Foot Seal Option - Used instead of caulking to increase the weather resistance of the threshold.

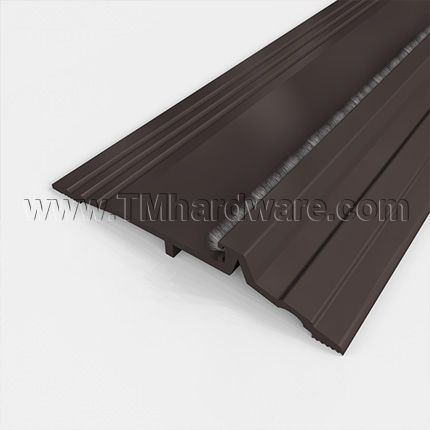

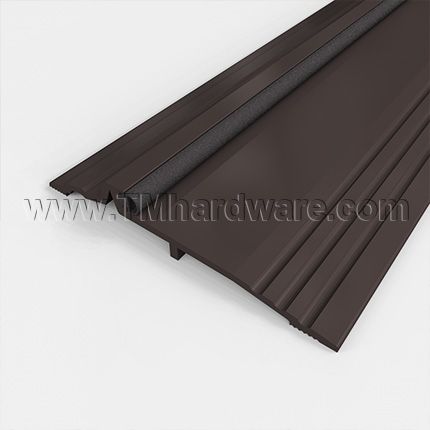

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For additional thresholds see our NGP 804 Rabbeted Threshold, 5" Aluminum with Choice of Seals, .875" Height

      • SKU
        NG890V
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      890
    • Seal
      Vinyl, Silicone, NGP-TPV, Pile
    • Dimensions
      • Overall Height
        .75" Height
      • Interior Height
        .375" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .5" Height
      • Thickness
        .125" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold, Rubber Seal / Bumper Threshold
      • Seal Type
        Silicone Seal, Vinyl Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Bronze Finish
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    Mill Aluminum complies with ANSI/BHMA US27 / 627
