NGP 9001 Door Gasket, 1.25" Aluminum Casing with .25" Premium Grade Silicone Seal

NGP 9001 Door Gasket, 1.25" Aluminum Casing with .25" Premium Grade Silicone Seal
National Guard Products

NGP 9001 Door Gasket is fitted with a .25" silicone plus seal, which is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration. Casing measures 1.25" in height. Available in three anodized finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG9001A
    • Market price:$14.80
      • save 15%
    • Starting price: Price: $12.58 per foot


    NGP 9001 Door Gasket Key Features:

    Recommended for areas using FM200 or Halon Fire Suppression Systems

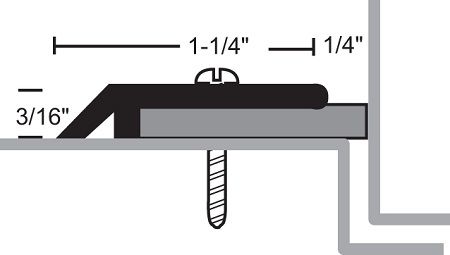

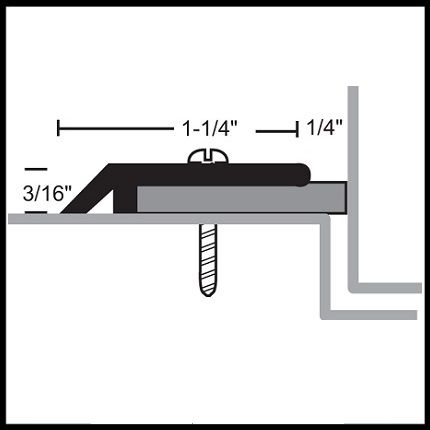

    Casing Height: 1-1/4" (1.25")

    Seal Height: 1/4" (.25")

    Total Width: 3/16" (.1875")

    Total Height: 1-1/2" (1.5")

    Retainer Material: Aluminum alloy 6063, T5 temper.

    Seal Material: Tan Silicone Plus. This premium grade seal is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration. Seal has excellent flexibility, memory, and resistance to ozone, sunlight and aging.

    Compliance Details: UL Listed; ANSI/BHMA Certified; Air Infiltration Rated; Smoke and Draft Control certified; Positive Pressure Rated.

    Temperature Range: -100°F to 500°F, remains flexible at extreme temperatures.

    Finishes: Anodized Aluminum, Dark Bronze Anodized, Gold Anodized

    Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.


    This product has a 3 year guarantee against defects in material and workmanship.

    Click here to view our Full Warranty Policy.

    For additional door gaskets, see our NGP 9002 Door Gasket, .875" Aluminum Casing with .3125" Silicone Plus Bulb Seal

      • SKU
        NG9001A
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      9001
    • Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94"
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Bronze Finish

    Anodized Aluminum complies with ANSI/BHMA US28 / 628
