NGP 9002 Door Gasket, .875" Aluminum Casing with .3125" Premium Grade Silicone Bulb Seal
NGP 9002 Door Gasket is fitted with a .3125" silicone plus bulb seal, which is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration. Casing measures .875" in height. Available in four anodized finishes and length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 9002Â Door Gasket Key Features:
Recommended for areas using FM200 or Halon Fire Suppression Systems

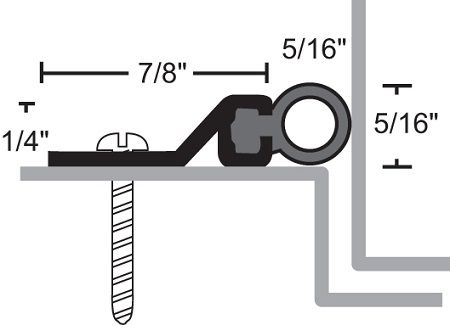

Casing Height: 7/8" (.875")Â
Casing Width:Â 1/4" (.25")
Seal Height: 5/16" (.3125")
Total Width: 5/16" (.31255")
Total Height: 1-3/16" (1.1875")
Retainer Material: Aluminum alloy 6063, T5 temper.
Seal Material: Tan Silicone Plus. This premium grade seal is specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration. Seal has excellent flexibility, memory, and resistance to ozone, sunlight and aging.
Compliance Details: UL Listed;Â ANSI/BHMA Certified; Air Infiltration Rated;Â Smoke and Draft Control certified; Positive Pressure Rated.
Temperature Range: -100°F to 500°F, remains flexible at extreme temperatures.
Finishes: Anodized Aluminum, Dark Bronze Anodized, Gold Anodized, Mill Aluminum
Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.
Mounting Options:
- Screws Only: Screw holes are slotted for easy adjustment once installed
- Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional door gaskets with Nylon Plus Brush, see our NGP 9000 Door Gasket, .75" Aluminum Casing with .4375" Nylon Plus Seal
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN9002
-
Length12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94", 94.25", 94.5", 94.75", 95", 95.25", 95.5", 95.75", 96", 96.25", 96.5", 96.75", 97", 97.25", 97.5", 97.75", 98", 98.25", 98.5", 98.75", 99", 99.25", 99.5", 99.75", 100", 100.25", 100.5", 100.75", 101", 101.25", 101.5", 101.75", 102", 102.25", 102.5", 102.75", 103", 103.25", 103.5", 103.75", 104"
-
MountingScrews, Screws + Adhesive
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Bronze Finish, Mill Finish Aluminum (US27)
-
