NGP 803 Rabbeted Threshold, 5" Aluminum with Choice of Seals, 1" Height

NGP 803 Rabbeted Threshold, 5" Aluminum with Choice of Seals, 1" Height
National Guard Products
Read 1 review

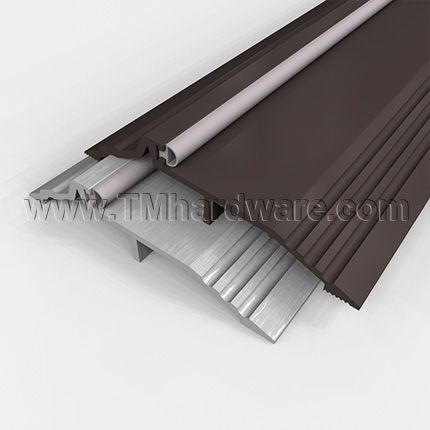

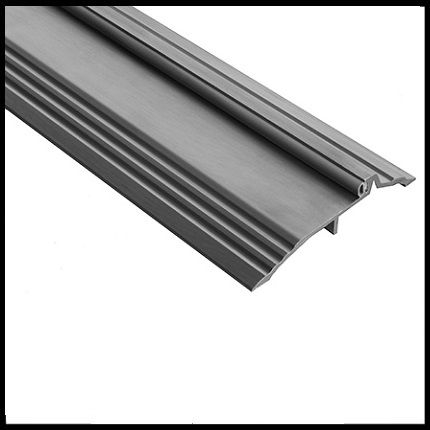

NGP 803 doorway threshold is fitted with a choice of seals to ensure a strong seal against dust, drafts and water from entering. Available in two high quality aluminum finishes. Length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG803V
    • Market price:$23.60
      • save 5%
    • Starting price: Price: $22.42 per foot

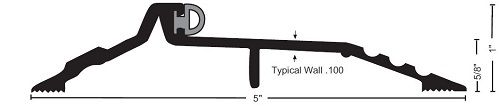

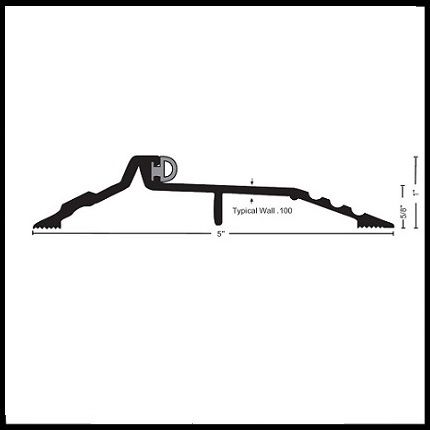

    NGP 803 Rabbeted Threshold Threshold Key Features:

    Material: Aluminum Alloy 6063, T5 Temper

    Width: 5"

    Height: .625" (5/8")

    Total Height: 1"

    Length: Custom cut to size

    Typical Wall Thickness: .100"

    Weight: .80 lbs./Ft.

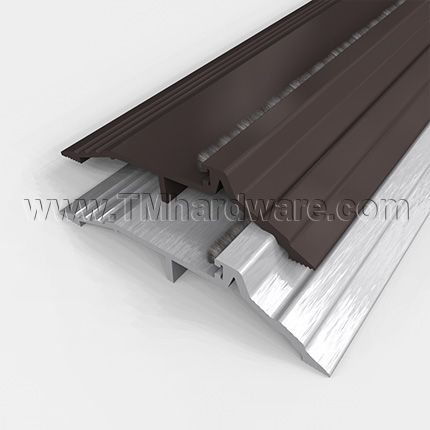

    Inserts:  Gray Vinyl, Black Silicone, Black NGP-TPV, Gray Pile

    Compliance Details: UL Listed, Air Infiltration Tested, Positive Pressure Certified, ANSI/BHMA Certified.

    Installation: See Installation Guide tab.

    • If threshold is being drilled into concrete, an Expansion Anchor is recommended.
    • #10 x 1-1/2” FH zinc plated wood screws provided.
      • Dark Bronze Aluminum thresholds are supplied with dark bronze plated screws

    Drilling: Threshold is drilled in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300):

    • Slip Resistant Textured Finish for thresholds up to 24".
    • Vinyl Foot Seal Option - Used instead of caulking to increase the weather resistance of the threshold.

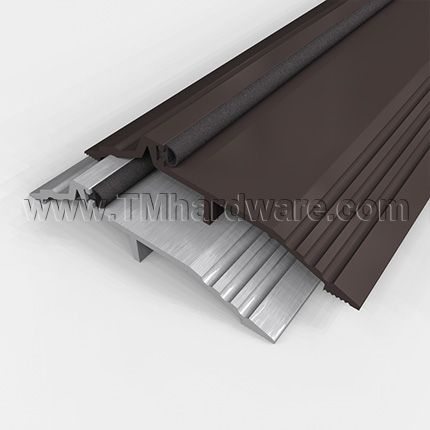

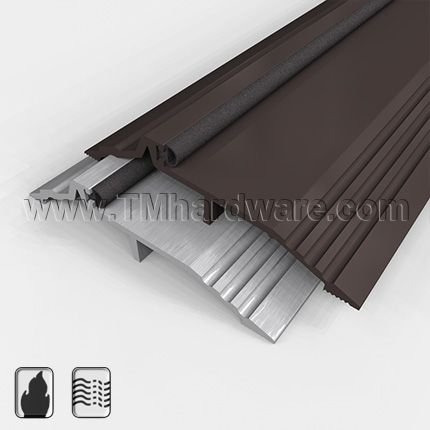

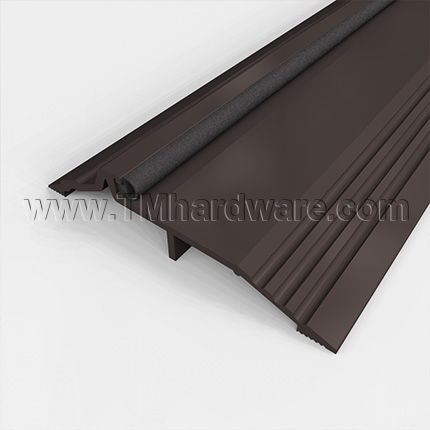

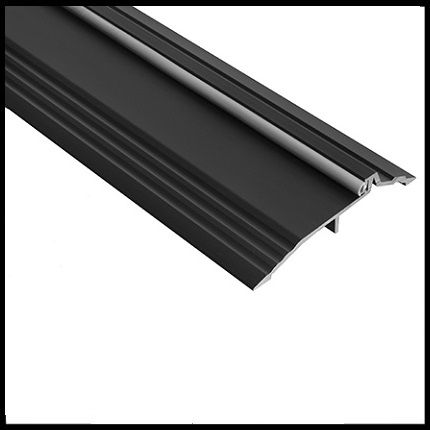

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For additional thresholds see our NGP 8135 Rabbeted Threshold, 3.75" Aluminum with Choice of Seals, Low Profile, .5" Height

      • SKU
        NG803V
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      803
    • Seal
      Vinyl, Silicone, NGP-TPV, Pile
    • Dimensions
      • Overall Height
        1" Height
      • Overall Width
        5" Width
      • Threshold Length
        Custom Cut to Size
      • Thickness
        .100" Thick
    • Product Design
      • Threshold Type
        Latching Panic Exit Threshold, Rubber Seal / Bumper Threshold
      • Seal Type
        Vinyl Seal, Silicone Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish

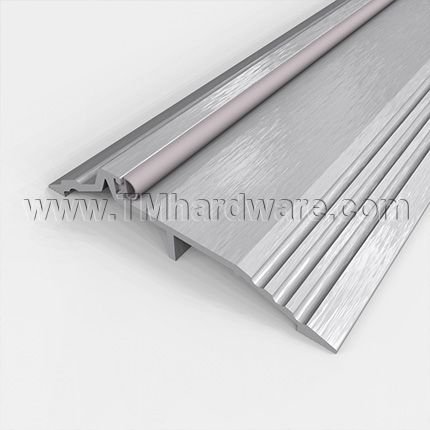

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty
    5.0
    1 Review

    Ratings Distribution

    5 Stars 100 1
    4 Stars 0 0
    3 Stars 0 0
    2 Stars 0 0
    1 Star 0 0

    Reviewed by 1 customer

    5

    It works

    Comments about NGP 803 Rabbeted Threshold, 5" Aluminum with Choice of Seals, 1" Height

    Replaced the original threshold for the door into garage with this. With proper measurements, it works well

    By Nicholas
    Verified Buyer

    Mill Aluminum complies with ANSI/BHMA US27 / 627


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship

    Exception: Bronze Anodized products require 4 - 5 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, resalable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
