NGP 884 Aluminum Latching Panic Exit Threshold, with Thermal Break and Choice of Seals, 6"- 8" Widths, .875" Height

NGP 884 Aluminum Latching Panic Exit Threshold, with Thermal Break and Choice of Seals, 6"- 8" Widths, .875" Height
National Guard Products

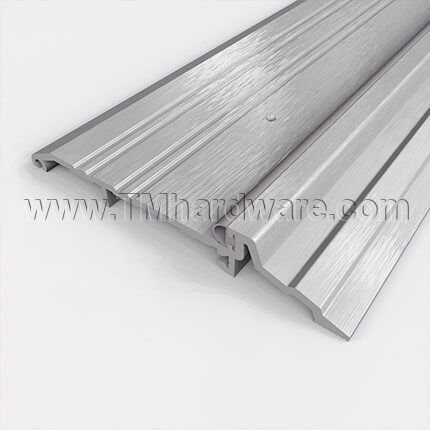

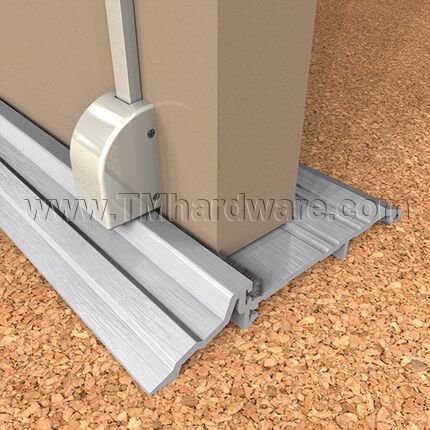

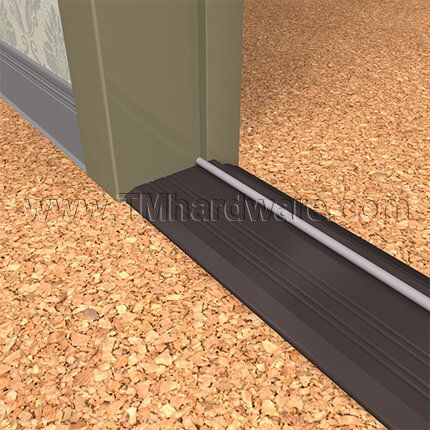

NGP 884 Latching Panic Exit Threshold  is designed to be used with a surface applied vertical rod exit device and as a door bumper with a seal at the bottom of doors. The thermal break creates a separation to prevent the transfer of outside temperature and frost through the threshold. It has a full height of .875". Available in two aluminum finishes and a choice of seals. Length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG884-6V
    • Market price:$64.75
      • save 14%
    • Starting price: Price: $55.72 per foot


    NGP 884 Latching Panic Exit Threshold with Thermal Break Key Features:

    Threshold design is compatible with a surface applied vertical rod exit device.

    Material: Aluminum Alloy 6063, T5 Temper

    Width: 6", 7", or 8". Choose from the options above.

    Height: .875" (7/8")

    Length: Custom cut to size

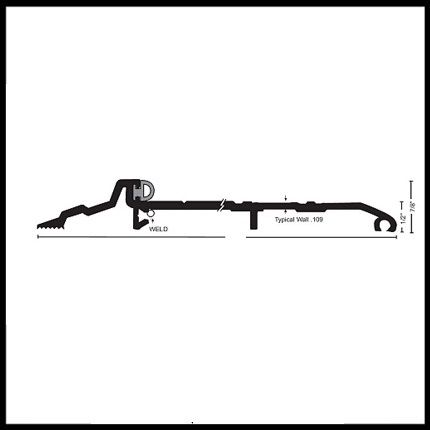

    Typical Wall Thickness: .109"

    Weight: 1.10 lbs./ft. for 6", 1.31 lbs/ft. for 7", 1.52 lbs./ft. for 8"

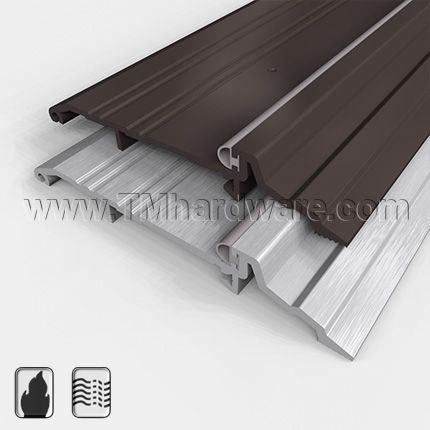

    Inserts:  Gray Vinyl, Black Silicone, Black NGP-TPV, Gray Pile

    Compliance Details: Air Infiltration Tested; UL Certified; Positive Pressure Certified.

    Installation: See Installation Guide tab.

    • If threshold is being drilled into concrete, an Expansion Anchor is recommended.
    • #10 x 1-1/2” FH zinc plated wood screws provided.
      • Dark Bronze Aluminum thresholds are supplied with dark bronze plated screws

    Drilling: Threshold is drilled in standard factory locations.

    Options (Can be purchased through our office at 845-388-1300):

    • Slip Resistant Textured Finish
    • Vinyl Foot Seal

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional thresholds see our NGP 8436 Latching Panic Exit Threshold, 6.125" Aluminum with Thermal Break and Choice of Seals, .875" Height

      • SKU
        NG884-6V
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      884-6, 884-7, 884-8
    • Width
      6", 7", 8"
    • Seal
      Vinyl, Silicone, NGP-TPV, Pile
    • Dimensions
      • Overall Height
        .875" Height
      • Overall Width
        6" Width, 7" Width, 8" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        1" Height
      • Thickness
        .109" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Latching Panic Exit Threshold, Thermal Break Threshold
      • Seal Type
        Vinyl Seal, Silicone Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish

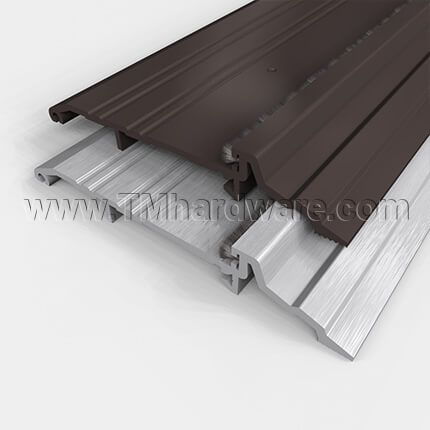

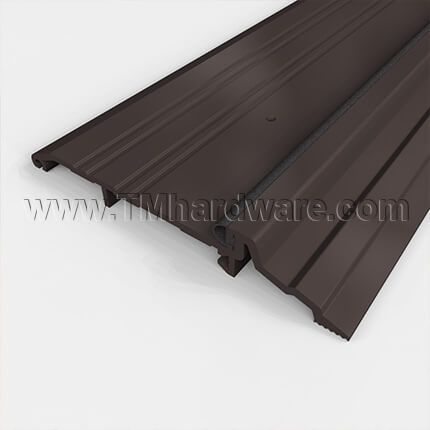

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

    Mill Aluminum complies with ANSI/BHMA US27 / 627
