NGP 92NWH Door Shoe Sweep, U Shaped Aluminum with 2" Kickplate and .75" Neoprene and Nylon Brush Seals

NGP 92NWH Door Shoe Sweep, U Shaped Aluminum with 2" Kickplate and .75" Neoprene and Nylon Brush Seals
National Guard Products

NGP 92NWH Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .75" at your door bottom.  It combines a 2" kick-plate with the casing for extra protection from traffic abuse or to restore a badly damaged door to an almost new condition, thus eliminating the need to replace the door. It is compatible with doors of 1.75" thickness. Comes with Neoprene and Nylon Brush inserts. Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG92NWHA
    • Market price:$28.30
      • save 15%
    • Starting price: Price: $24.06 per foot


    NGP 92NWH Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .75" at your door bottom.  It combines a 2" kick-plate with the casing for extra protection from traffic abuse or to restore a badly damaged door to an almost new condition, thus eliminating the need to replace the door.

    Seals: Contains a .75" Black Neoprene and Gray Nylon Brush Seal. The seals have very good abrasion resistance, tensile strength and memory.

    Kickplate: 2" kickplate for extra protection from traffic abuse or to restore a badly damaged door to an almost new condition, thus eliminating the need to replace the door.

    Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional Door Shoes see our NGP 92T Door Shoe Sweep, U Shaped Aluminum with 2" Kickplate and .6875" Thermoplastic Triple Fin Seal

      • SKU
        NG92NWHA
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      92NWH
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -20°F thru 200°F
      • Door Type
        Metal Door, Wooden Door
      • Seal Type
        Nylon Brush Seal
      • Mounting
        Door Shoe Mount
    • Dimensions
      • Seal Height
        3/4" Height
      • Total Height
        2-3/4" Height
      • Additional Dimensions
        Door seal is 1-3/4" thick
      • Length
        Custom Cut to Size
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 3/4" stainless steel SMS Provided
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        UL Classified, Smoke Rated, Air Infiltration Rated, Fire Rated
      • Warranty
        3 Year Limited Warranty

    Click to Print

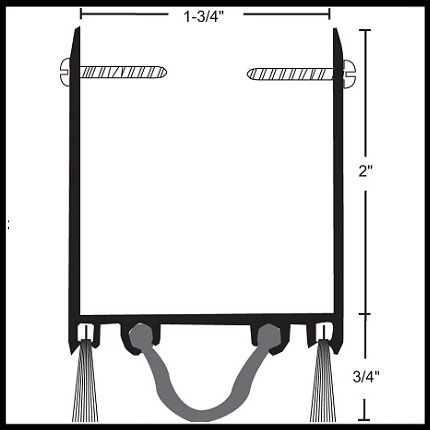

    92NWH Door Shoe, U Shaped Aluminum with 2" Kickplate

    End Caps Available, select from options above:

    End caps for 9250 Series Door Bottoms

    Anodized Aluminum complies with ANSI/BHMA US28 / 628
