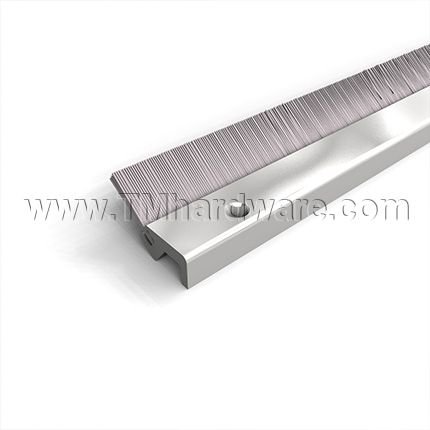

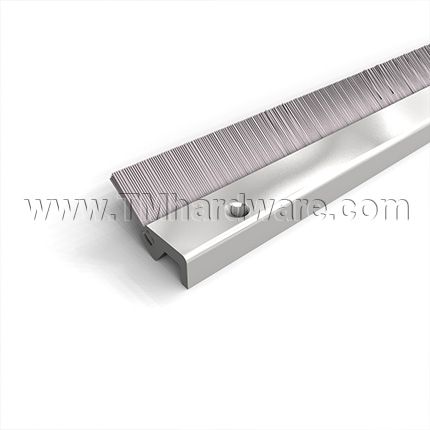

NGP A625 Door Sweep and Perimeter Gasket, .5" Aluminum Casing with .4375" Angled Nylon Brush

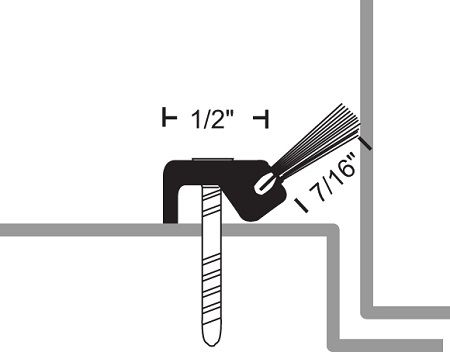

NGP A625 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures .5" H, while the angled brush portion has a height of .4375". Available in various anodized finishes.

PRICED PER FOOT - see product specs and details in the tabs below

See tabs below for additional information

Finish
Length

Quantity

Add to compare

Brush Material: Black or Gray Angled Nylon Brush. Seal has excellent abrasion resistance, flexibility and memory. It retains insecticides well and is moisture resistant, however it is not effective against water penetration.

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Compliance Details: Reach and RoHS compliant; Fire, Smoke and Air Infiltration Rated, BHMA and UL Certified, see Compliance Details tab for more information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

- SKU
  NGA625A
QuickShip
No
Manufacturer
National Guard Products
MPN
A625
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  -70°F to 425°F
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Nylon Brush Seal
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  7/16" Height
- Total Height
  15/16" Height
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 3/4" stainless steel sheet metal screws provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  Fire Rated, Smoke Rated, UL Classified, Air Infiltration Rated, BHMA Certified
- Warranty
  3 Year Limited Warranty

Click to Print

Click to Print Installation Guide

Anodized Aluminum complies with ANSI/BHMA codes US28 / 628
Reach and RoHS compliant
