NGP B606 Door Sweep and Perimeter Gasket, .75" Aluminum Casing with .5" Nylon Brush

NGP B606 Door Sweep and Perimeter Gasket, .75" Aluminum Casing with .5" Nylon Brush

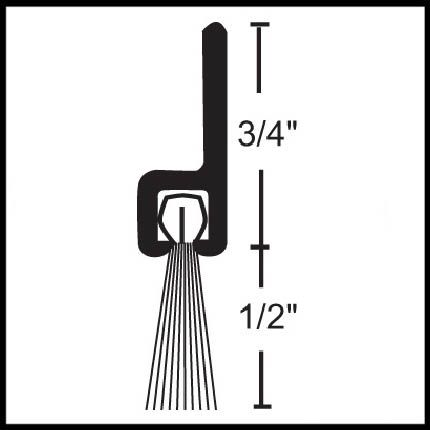

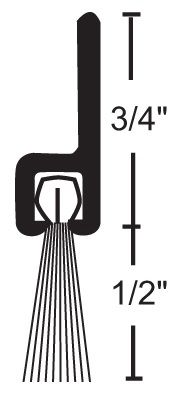

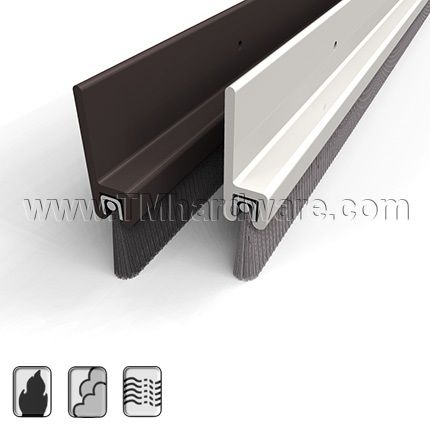

Product Specs of NGP B606 Door Bottom Sweep Actual Image of NGP Door Bottom Sweep Clear Aluminum Anodized Dark Bronze Aluminum Anodized Gold Aluminum Anodized

NGP #B606 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures .75" H, while brush portion has a height of .5". Available in 3 anodized finishes and is custom cut to size.

PRICED PER FOOT - see product specs and details in the tabs below

Price: $4.05
Size (Inches)
Save to wishlist
Made in USA
Shipping See Shipping Tab Below

NGP #B606 Door Sweep Key Features:

Casing Height: 3/4" (.75" )

Brush Height: 1/2" (.5")

Total Height: 1-1/4" (1.25")

Retainer Material: Aluminum alloy 6063, T5 temper

Brush Material: Nylon Brush

Temperature Range: -70°F to 425°F

Mounting Options: select from options above

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Finishes: Clear Anodized Aluminum (Gray Brush), Dark Bronze Aluminum (Black Brush), Gold Aluminum (Black Brush)

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Compliance Details: Fire, Smoke and Air Infiltration Rated, BHMA and UL Certified, see Compliance Details tab for more information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For a larger brush, see our NGP 607 Door Bottom Sweep with 9/16" Seal

Compliance Details
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
  • SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
  • REACH and RoHS compliant
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.
  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
