NGP I-624 Door Sweep and Perimeter Gasket, 1.5" Aluminum Casing with 4" Angled Nylon Brush

NGP I-624 Door Sweep and Perimeter Gasket, 1.5" Aluminum Casing with 4" Angled Nylon Brush

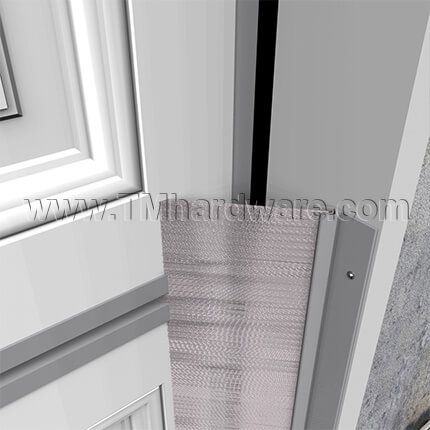

Product specs of NGP I-624 Door Sweep or Perimeter Gasket NGP I-624 Door Sweep NGP I-624 Anodized Aluminum NGP I-624 Dark Bronze Anodized NGP I-624 Application Image
0.0

NGP I-624 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 1.5" H, while the angled brush portion has a height of 4". Available in two anodized finishes.

PRICED PER FOOT - see product specs and details in the tabs below

Price: $20.55
Finish
Length (Inches)
Mounting
Qty
Save to wishlist
Made in USA
SKU NI-624A
Shipping See Shipping Tab Below
Description

NGP I-624 Door Sweep Key Features:

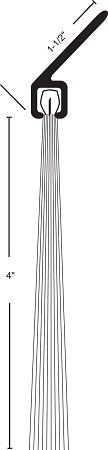

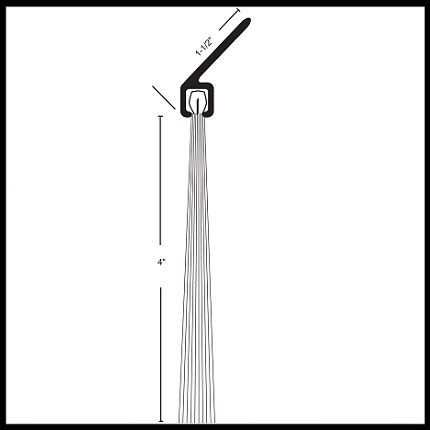

Casing Height: 1-1/2" (1.5")

Brush Height: 4"

Total Height: 5-1/2" (5.5")

Retainer Material: Aluminum alloy 6063, T5 temper

Brush Material: Black or Gray Angled Nylon Brush. Seal has excellent abrasion resistance, flexibility and memory. It retains insecticides well and is moisture resistant, however it is not effective against water penetration.

Temperature Range: -70°F to 425°F

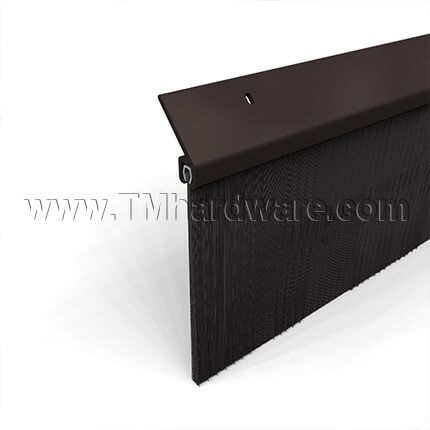

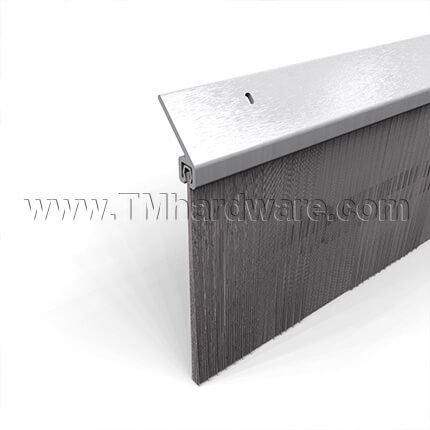

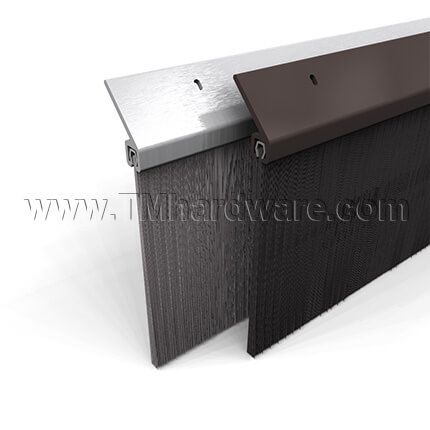

Finishes: Anodized Aluminum, Dark Bronze Anodized

InstallationInstallation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Mounting Options:

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Compliance Details: Reach and RoHS compliant; UL Certified; Positive Pressure Certified; For use on fire-rated metal doors up to 3 hours or wood doors up to 60 minutes, see Compliance Details tab for more information.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

See also our NGP I616 Door Sweep or Perimeter Gasket with 5.5" Aluminum Casing and 4" Nylon Brush.

Product Specs
Compliance Details
  • Anodized Aluminum Complies with ANSI/BHMA codes US28 / 628
  • Reach and RoHS compliant

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
