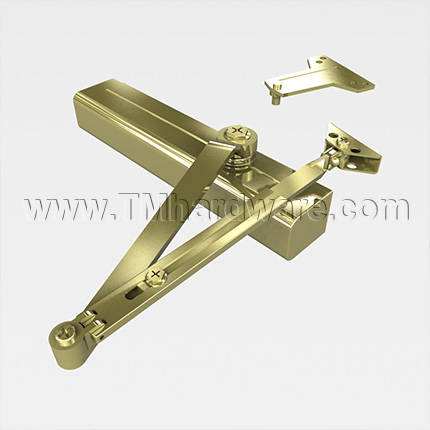

Norton 8301, Door Closer, Surface Closer, with Slim Line Cover, Non-Hold Open

Norton 8301, Door Closer, Surface Closer, With Slim Line Cover, Non-Hold Open, Regular, parallel or top jamb to 3" reveal, Aluminum Painted Finish
Norton

Surface closers in the 8301 Series door closer come in multiple sizes, provide a full range of arms, and have a sleek, minimalistic style that makes them ideal for architectural openings with moderate to heavy traffic. It is available in multiple sizes with a full range of arms, choose from the drop down menus. See more details in the description below.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-8301-689
    • Market price:$618.11
      • save 25%
    • Starting price: Price: $463.58 per item


    Surface closers in the 8301 Series door closer come in multiple sizes, provide a full range of arms, and have a sleek, minimalistic style that makes them ideal for architectural openings with moderate to heavy traffic.

    Features:

    • Cast aluminum closer
    • Adjustable spring sizes 1-6
    • Tri-packed
    • Exceeds 25 million cycles
    • Non-handed
    • Non-hold Open
    • Interior or exterior doors
    • Standard, separate, and independent latch, sweep, and backcheck intensity valves
    • 1-1/4" diameter piston
    • 2-1/8" projection (standard covers)
    • All standard arm applications allow doors to swing 180, conditions permitting
    • **CloserPlus® Arm
      • Door closers shall have a field reversible door stop. Hold open tension shall be adjustable effective at one point selected at installation, from 85° - 110° in five-degree increments. Closers shall be provided for parallel arm installation using a forged rigid steel main arm and secondary arm.
    • **Unitrol® Arm
      • Door closers shall have a fixed door stop feature effective at one point selected at installation, from 85° - 110° in five-degree increments. Door stop shall be cushioned by a shock-absorbing heavy-duty spring action effective at the [soffit plate] [arm shoe] pivot. [Closers shall be provided for parallel arm installation using rigid steel main arm and secondary arm lengths proportional to the door width.] [Closers shall be provided for top jamb installation using steel, rigid main arm and telescoping secondary arm adequate for the frame reveal of the openings.]
    • **CloserPlus Spring™ Arm
      • Door closers shall have built-in door stop [and holder] effective at one point selected at installation, from 85° - 110° in five-degree increments. Door stop mechanism shall be reversible and have a buffer spring that engages prior to the dead stop feature, reducing shock loads to the door and frame assembly. Door stop mechanism shall be attached to soffit plate. [Hold open mechanism shall have engage/disengage selection actuated by thumbturn]. Closers shall be provided for parallel installation using a forged rigid steel main arm and secondary arm.

    Benefits :

    • Constructed with robust materials and internal components
    • One package covers regular, top jamb and parallel arm mounting
    • Stringent testing supports a long-life of reliability
    • Staking limits ability to accidentally back out the valve while adjusting closer
    • Sleek, minimal design provides clean aesthetic
    • Arm configurations meet broad range of applications
    • Extensive offering of accessories to assist with the most difficult applications
    • Proprietary lubricate delivers optimal performance and efficiency

    Certifications:

    • ANSI/BHMA A117.1
    • ANSI/BHMA A156.4, Grade 1
    • Americans with Disabilities Act (ADA) Compliant
    • Environmental Product Declaration (EPD)
    • UL 10C Positive Pressure up to 3 hours
    • UL-cUL Listed

    PRICED PER UNIT

    This product has a 30-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton 1601SS, Door Closer, Surface Closer, Corrosion Resistant

      • SKU
        NR-8301-689
    • QuickShip
      No
    • Manufacturer
      Norton
    • MPN
      8301
    • Options
      Standard, Delayed action (DA), Double egress. Hinge side only (DE), Offset soffit plate(PRO), Regular rigid, heavy-duty arm. Torx® not included. (R)
    • Covers
      Standard, Plastic slim line cover, ABS plastic slim line cover, Pinion cap (used w/ slim line cover)
    • Description
      • Series
        Norton 8000 Series
      • Size
        Adjustable 1-6
      • Closer Performance
        Heavy Duty
      • BHMA Grade
        Grade 1
      • Arm Type
        Regular, parallel or top jamb to 3" reveal, Regular arm only, Top jamb only; 3" maximum reveal, Parallel arm only, Top jamb only; reveals 2-3/4 to 7", Low profile, regular arm, Parallel Rigid Arm, CloserPlus® Arm, CloserPlus Spring™ arm, Unitrol® parallel arm (specify door width on note), Unitrol® top jamb arm (specify reveal on note), Pull side slide track, Low profile, pull side slide track, Top jamb, pull side slide track (8146 drop plate included), Push side slide track, Low profile, push side slide track
      • Handing
        Non Handed
      • Closer Body Material
        Cast Aluminum
      • Cover Type
        Slimline Cover
    • Closer Dimensions
      • Closer Projection
        2-1/8" Projection
    • Door Description
      • Door Opening Degree
        up to 180° Degree
    • Features
      • Function
        No Hold Open
      • Adjustable Spring
        Yes
      • Hold Open
        No
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Black Painted (693), Medium Bronze Painted (694), Gold Painted (696), Dark Satin Bronze, Equiv (613e), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Compliance Details
        ADA Compliant, UL 10C Positive Pressure up to 3 hours, Ul-cUL Listed, Buy American Act, Environmental Product Declaration (EPD)
      • ANSI Designation
        ANSI/BHMA A156.4, Grade 1, ANSI/BHMA A117.1
      • Warranty
        30 Year Limited Warranty
