Norton Checkmate 10 Series, Adjustable, Surface, Standard Duty, Stop and Holder

Norton Checkmate 10 Series, Adjustable, Surface, Standard Duty, Stop And Holder, Friction, Aluminum Painted Finish
Norton

Norton's 10 Series Checkmate is an adjustable, standard-duty surface-mounted stop and holder. It is designed for medium-traffic, medium-weight interior doors. Available in different finishes.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton Checkmate 10 Series - QuickShip

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-10-016-689
    • Market price:$290.41
      • save 25%
    • Starting price: Price: $217.81 per item


    Norton's 10 Series Checkmate is an adjustable, standard-duty surface-mounted stop and holder. It is designed for medium-traffic, medium-weight interior doors. Available in different finishes.

    Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton Checkmate 10 Series - QuickShip

    Features:

    • Moderate traffic, medium-weight door applications
    • Degree of opening is fully adjustable and can be adapted to changing needs
    • Surface mounted
    • Adjustable, slide track arm
    • For use on interior, single-acting doors
    • Maximum opening is 110 degrees
    • A multi-function unit is shipped as a stop; can be converted to a hold open or friction in field. 5012-PKG (adapter kit) included
    • Standard door thickness is 1 3/4"
    • Friction, hold open, stop and multi-functions
    • 3/4" square channel
    • Heavy shock absorber spring provides compression before dead stop
    • Durable slider cam and shock block
    • Complete screw packet with thru-bolts for door, plus wood and machine screws for frame
    • For security areas, Torx® screws are optional
    • Hanging means other than standard butts or offset pivots require special templating and pricing; consult factory

    Benefits:

    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door-closing hardware

    Certification:

    • ANSI/BHMA A156.8, Grade 1
    • Stop functions UL listed

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 9ADJ Series, Adjustable, Surface, Heavy Duty, Stop and Holder

      • SKU
        NR-10-016-689
    • QuickShip
      No
    • Manufacturer
      Norton

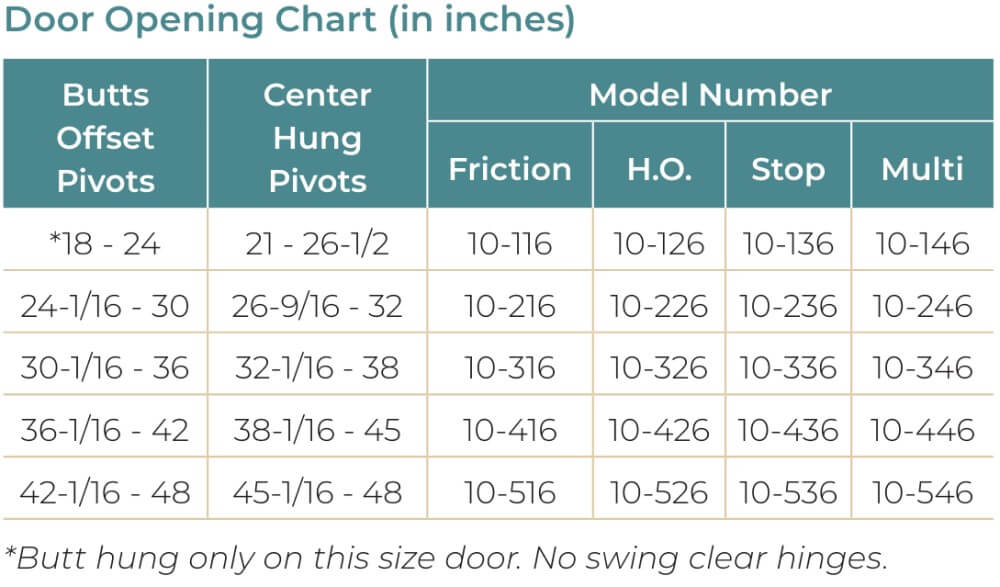

    • Door Opening
      18" - 24" Butts Offset or 21"-26 1/2" Center Hung, 24 1/16" - 30" Butts Offset or 26 -/16" - 32" Center Hung, 30 1/16" - 36" Butts Offset or 32 1/16" - 38 1/2" Center Hung, 36 1/16" - 42" Butts Offset or 38 9/16" - 45" Center Hung, 42 1/16" - 48" Butts Offset or 45 1/16" - 48" Center Hung
    • Description
      • Series
        10 Series checkmate
      • BHMA Grade
        Grade 1
      • Handing
        Non Handed
    • Door Description
      • Door Opening Degree
        Up to 110°
    • Features
      • Function
        Friction, Hold Open, Stop, Multi-Function
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Satin Chrome (652), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Dark Satin Bronze, Equiv (613e), Satin Stainless Steel (630), Satin Brass (633), Satin Bronze (639), Bright Stainless Steel (629), Flat Black (631), Polished Brass (632), Polished Bronze (637), Polished Nickel (645), Satin Nickel (646)
    • Compliance Details
      • Warranty
        2 Year Limited Warranty
