Norton Checkmate 9ADJ Series, Adjustable, Surface, Heavy Duty, Stop and Holder

Norton Checkmate 9ADJ Series, Adjustable, Surface, Heavy Duty, Stop And Holder, Hold Open, Aluminum Painted Finish
Norton

Norton's 9ADJ Series Checkmate is an adjustable, heavy-duty surface-mounted stop and holder. It is designed for high-traffic interior or exterior doors that withstand heavy abuse. Available in different finishes.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-9ADJ-026-689
    • Market price:$751.45
      • save 25%
    • Starting price: Price: $563.59 per item


    Norton's 9ADJ Series Checkmate is an adjustable, heavy-duty surface-mounted stop and holder. It is designed for high-traffic interior or exterior doors that withstand heavy abuse. Available in different finishes.

    Features:

    • High traffic, heavy abuse applications
    • Heavy duty construction
    • Surface mounted
    • Adjustable, slide track arm
    • For use on interior or exterior, single-acting doors
    • 110° maximum opening (except 9ADJ for center hung 30-36” door which is 105°)
    • Degree of opening is fully adjustable and can be adapted to changing needs
    • 1-3/4” minimum door thickness; for thicker doors consult factory
    • Hold open and stop functions
    • 1-3/16" square channel
    • Heavy shock absorber spring provides 5-7 degrees compression before dead stop
    • Durable slider cam and shock block
    • Complete screw packet with thru-bolts for door, plus wood and machine screws for frame
    • For high-security areas, Torx® screws available for exposed fasteners
    • Hanging means by other than standard butts or offset pivots requires special templating and pricing; consult factory

    Benefits:

    • Helps protect door and frame in abusive situations
    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door-closing hardware

    Certification:

    • ANSI/BHMA A156.8, Grade 1
    • Stop functions UL listed

    PRICED PER UNIT

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 9 Series, Surface, Heavy Duty, Stop and Holder

      • SKU
        NR-9ADJ-026-689
    • QuickShip
      No
    • Manufacturer
      Norton

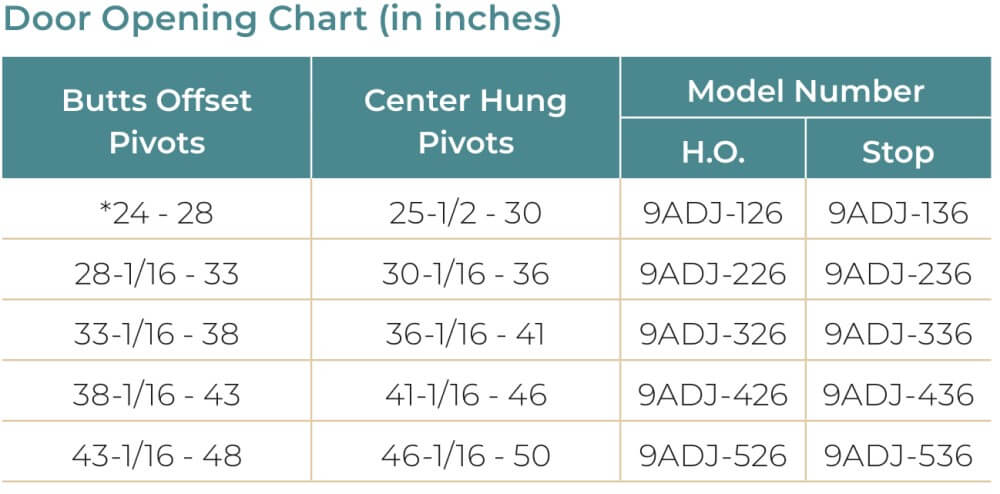

    • Door Opening
      24" - 28" Butts Offset, 28 1/16" - 33" Butts Offset or 30"-36" Center Hung, 33 1/16" - 38" Butts Offset or 36 1/16" - 41" Center Hung, 38 1/16" - 43" Butts Offset or 41 1/16" - 46" Center Hung, 43 1/16" - 48" Butts Offset or 46 1/16" - 50" Center Hung
    • Description
      • Series
        9 Series checkmate
      • Handing
        Non Handed
    • Door Description
      • Door Opening Degree
        Up to 110°
    • Features
      • Function
        Hold Open, Stop
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Satin Chrome (652), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Dark Satin Bronze, Equiv (613e), Satin Stainless Steel (630), Satin Brass (633), Satin Bronze (639), Bright Stainless Steel (629), Flat Black (631), Polished Brass (632), Polished Bronze (637), Polished Nickel (645), Satin Nickel (646)
    • Compliance Details
      • Warranty
        2 Year Limited Warranty
