Norton Checkmate 9 Series, Surface, Heavy Duty, Stop and Holder

Norton Checkmate 9 Series, Surface, Heavy Duty, Stop And Holder, Friction, Aluminum Painted Finish
Norton

Norton's 9 Series Checkmate is a heavy-duty surface-mounted stop and holder. It is designed for high-traffic interior or exterior doors that withstand heavy abuse. Available in different finishes.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton Checkmate 9 Series - QuickShip

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-9-016-689
    • Market price:$720.94
      • save 25%
    • Starting price: Price: $540.71 per item


    Norton's 9 Series Checkmate is a heavy-duty surface-mounted stop and holder. It is designed for high-traffic interior or exterior doors that withstand heavy abuse. Available in different finishes.

    Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton Checkmate 9 Series - QuickShip

    Features:

    • High traffic, heavy abuse applications
    • Heavy duty construction
    • Surface mounted
    • Slide track arm
    • For use on interior or exterior, single acting doors
    • Maximum opening is 110 degrees
    • 1-3/4” minimum door thickness
    • Friction, hold open and stop functions
    • 1-3/16" square channel
    • Heavy shock absorber spring provides 5-7 degrees compression before dead stop
    • The less spring (LS) option omits spring for special applications
    • Surface on/off knob on hold open models
    • Complete screw packet with thru-bolts for door, plus wood and machine screws for frame
    • For security areas, Torx® screws are optional
    • Hanging means other than standard butts or offset pivots requires special templating

    Benefits:

    • Helps protect door and frame in abusive situations
    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door closing hardware

    Certification:

    • Certain Models ANSI/BHMA A156.8, Grade 1 Certified
    • Stop functions UL listed

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 8HD Series, Surface, Extra Heavy Duty, Stop and Holder

      • SKU
        NR-9-016-689
    • QuickShip
      No
    • Manufacturer
      Norton

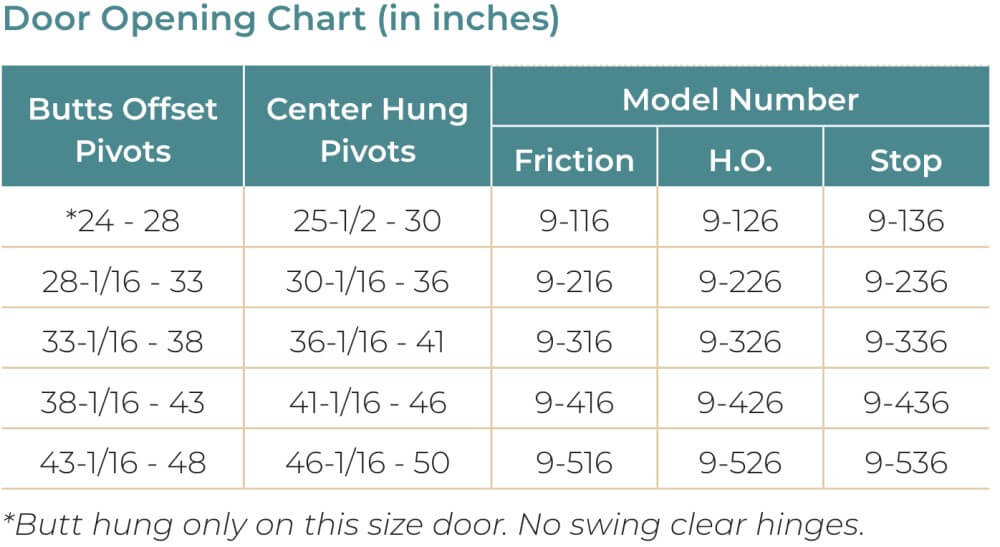

    • Door Opening
      24" - 28" Butts Offset, 28 1/16" - 33" Butts Offset or 30"-36" Center Hung, 33 1/16" - 38" Butts Offset or 36 1/16" - 41" Center Hung, 38 1/16" - 43" Butts Offset or 41 1/16" - 46" Center Hung, 43 1/16" - 48" Butts Offset or 46 1/16" - 50" Center Hung
    • Description
      • Series
        9 Series checkmate
      • Handing
        Non Handed
    • Door Description
      • Door Opening Degree
        Up to 110°
    • Features
      • Function
        Friction, Hold Open, Stop
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Satin Chrome (652), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Dark Satin Bronze, Equiv (613e), Satin Stainless Steel (630), Satin Brass (633), Satin Bronze (639), Bright Stainless Steel (629), Flat Black (631), Polished Brass (632), Polished Bronze (637), Polished Nickel (645), Satin Nickel (646)
    • Compliance Details
      • Warranty
        2 Year Limited Warranty
