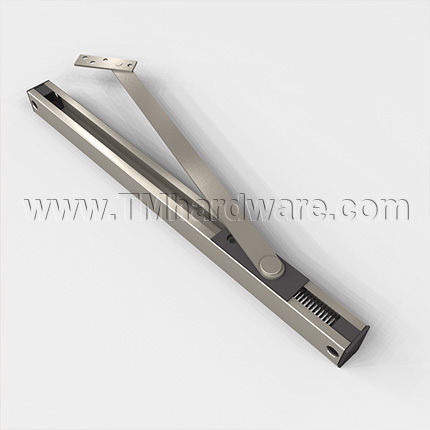

Norton Checkmate 9 Series, Surface, Heavy Duty, Stop and Holder, Satin Stainless Steel Finish - QuickShip

Norton's 9 Series Checkmate is a heavy-duty surface-mounted stop and holder. It is designed for high-traffic interior or exterior doors that withstand heavy abuse. Available in different finishes.

For more options and finishes, See Our Norton Checkmate 9 Series, Surface

Features:

• High traffic, heavy abuse applications
• Heavy duty construction
• Surface mounted
• Slide track arm
• For use on interior or exterior, single acting doors
• Maximum opening is 110 degrees
• 1-3/4” minimum door thickness
• Friction, hold open and stop functions
• 1-3/16" square channel
• Heavy shock absorber spring provides 5-7 degrees compression before dead stop
• The less spring (LS) option omits spring for special applications
• Surface on/off knob on hold open models
• Complete screw packet with thru-bolts for door, plus wood and machine screws for frame
• For security areas, Torx® screws are optional
• Hanging means other than standard butts or offset pivots requires special templating

Benefits:

• Helps protect door and frame in abusive situations
• Can be used on doors that do not have surface or floor closers
• Stop is independent of any door closing hardware

Certification:

• Certain Models ANSI/BHMA A156.8, Grade 1 Certified
• Stop functions UL listed

PRICED PER UNIT

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
