Norton Checkmate 6 Series, Concealed, Low Profile, Stop and Holder

Norton Checkmate 6 Series, Concealed, Low Profile, Electromechanical Closer, Stop, Aluminum Painted
Norton

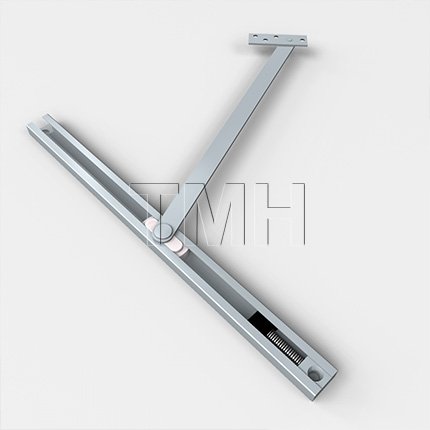

Norton's 6 Series Checkmate, a low-profile heavy-duty concealed stop and holder. It is designed to be used in high-traffic, heavy-abuse situations. Available with Friction Stay, Hold Open, Stop, or Multi-Functions in different finishes of your choice.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton Checkmate 6 Series - QuickShip

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-6-036-689
    • Market price:$742.41
      • save 25%
    • Starting price: Price: $556.81 per item


    Norton's 6 Series Checkmate, a low-profile heavy-duty concealed stop and holder. It is designed to be used in high-traffic, heavy-abuse situations. Available with Friction Stay, Hold Open, Stop, or Multi-Functions in different finishes of your choice.

    Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Norton Checkmate 6 Series - QuickShip

    Features:

    • High traffic, heavy abuse, aluminum storefront door applications
    • Concealed mounting
    • Slide track arm
    • For use on interior or exterior, single or double-acting doors
    • Maximum opening is 110 degrees
    • 1-3/4” minimum door thickness
    • Stop function
    • Heavy shock absorber spring provides 5-7 degrees compression before dead stop
    • Low profile channel is 1-1/4" wide and 1/2" deep
    • Complete screw packet for installation in wood and machine screws for door and frame
    • For security areas, Torx® screws are optional
    •  Hanging means other than standard butts or offset pivots require special templating and pricing; consult factory

    Benefits:

    • Concealed for added aesthetics
    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door-closing hardware

    Certification:

    • ANSI/BHMA A156.8, Grade 1
    • UL-cUL Fire-Rated Up to 3 Hours

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 5 Series, Concealed, Standard Duty, Electromechanical Closer

      • SKU
        NR-6-036-689
    • QuickShip
      No
    • Manufacturer
      Norton
    • Door Opening
      24" - 28" Butts Offset, 28 1/16" - 33" Butts Offset or 30"-36" Center Hung, 33 1/16" - 38" Butts Offset or 36 1/16" - 41" Center Hung, 38 1/16" - 43" Butts Offset or 41 1/16" - 46" Center Hung, 43 1/16" - 48" Butts Offset or 46 1/16" - 50" Center Hung
    • Description
      • Series
        6 Series checkmate
      • Handing
        Non Handed
    • Features
      • Function
        Stop
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Dark Satin Bronze, Equiv (613e), Satin Stainless Steel (630), Satin Brass (633), Satin Bronze (639), Bright Stainless Steel (629), Flat Black (631), Polished Brass (632), Polished Bronze (637), Polished Nickel (645), Satin Nickel (646)
    • Compliance Details
      • Compliance Details
        UL-cUL Fire-Rated Up to 3 Hours
      • ANSI Designation
        ANSI/BHMA A156.8, Grade 1
      • Warranty
        2 Year Limited Warranty
