Pemko #29310S Meeting Stile or Gasket, Concealed Screws, Rubber Seal, 84" Long

Pemko #29310S Opposing Seals close gaps
Pemko Manufacturing

Stop unwanted drafts, dirt, insects, light, and sound from infiltrating past your doors with this easy-to-install meeting stile or door gasket. A strong aluminum housing, equipped with a durable rubber seal, can seal the gap between and around doors to decrease energy waste and help you save money on utility bills. The seal is silicone rubber and metal housing is clear anodized aluminum. This Meeting Stile is fire and smoke rated and is 84" Long.

PRICED BY THE FOOT

How to Order: If required for both faces of a pair of double doors, select 'quantity 2' or as needed.

See tabs below for additional information
    • SKU
      PK29310CS84-085623
    • Market price:$76.61
      • save 10%
    • Starting price: Price: $68.95 per item

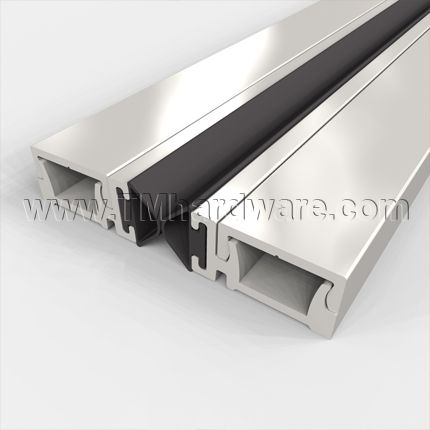

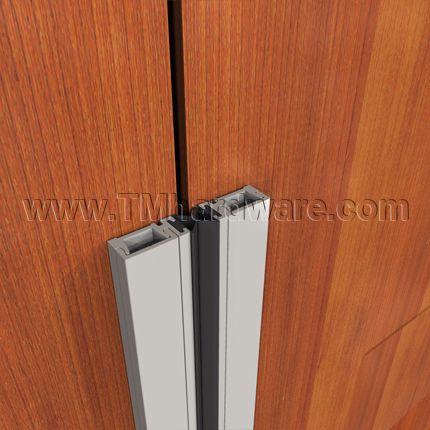

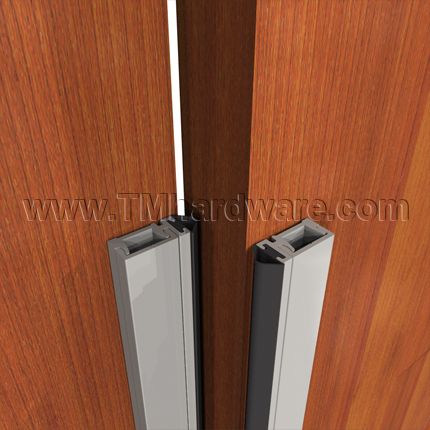

    This aluminum and rubber bulb door seal is surface mounted the faces of a pair of double doors. It can also be used as a door gasket to seal the perimeter of the door. Closing the gap between and around doors reduces energy waste and halts the passage of drafts, dirt, insects, light, and sound past your doors. The aluminum housing has a concealed screw compartment, which can help maintain the aesthetic, neat appearance of the doorway.

    Ratings: The Silicone seal is fire and smoke rated. Door seals with a fire rating may be mounted on pairs of doors that have a gap that meets the requirements of NFPA 80, 2-5.4.

    Applications: This meeting stile and door gasket can be surface mounted to the face of the door. In a gasketing application, it is mounted around the perimeter of the door. Surface mounted installations are quick and easy.

    Seal Options: This model comes with a Silicone seal. Silicone has inherent resistance to harsh environments, is generally non-reactive, stable, and resistant to extreme environments and temperatures.

    Installation Guide and screws provided. Screws are colored to coordinate with casing.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For a similar product with a pile brush seal, please see our Meeting Stile or Door Gasket, Concealed Screws, Pile, Up to .375" Gaps

      • SKU
        PK29310CS84-085623
    • QuickShip
      Yes
    • Manufacturer
      Pemko Manufacturing
    • MPN
      29310_S
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Silicone
      • Door Type
        Double Active Doors
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        3/16"
      • Total Height
        15/16"
      • Width
        3/8"
      • Size (Feet)
        84"
    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, UL Classified, GreenGuard Gold Certified
      • Warranty
        5 Year Limited Warranty

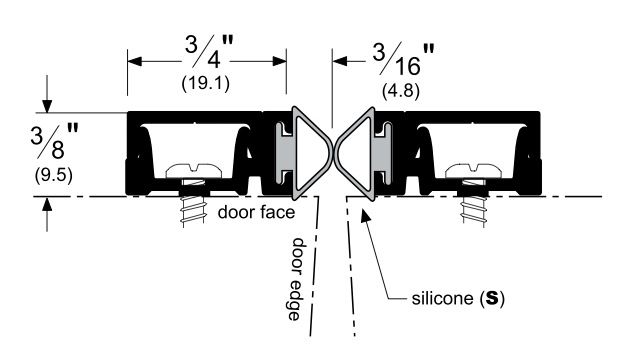

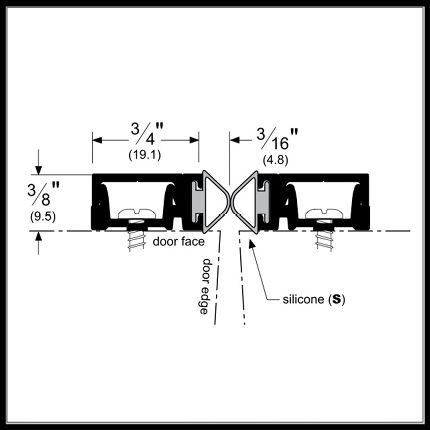

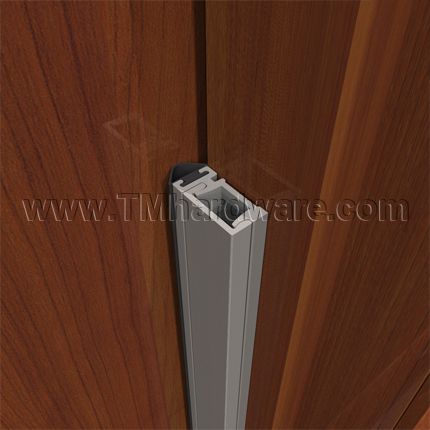

    Meeting Stile Application

    Click to Print Product Specs

    Silicone Seal, Aluminum Meeting Stile with Concealed Screw

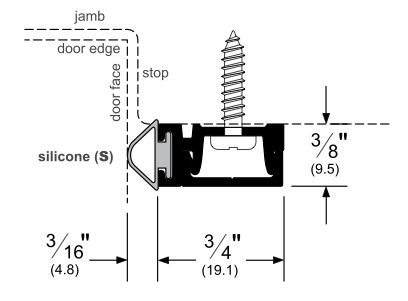

    Door Gasket Application

    Click to Print Product Specs



    Click to Print

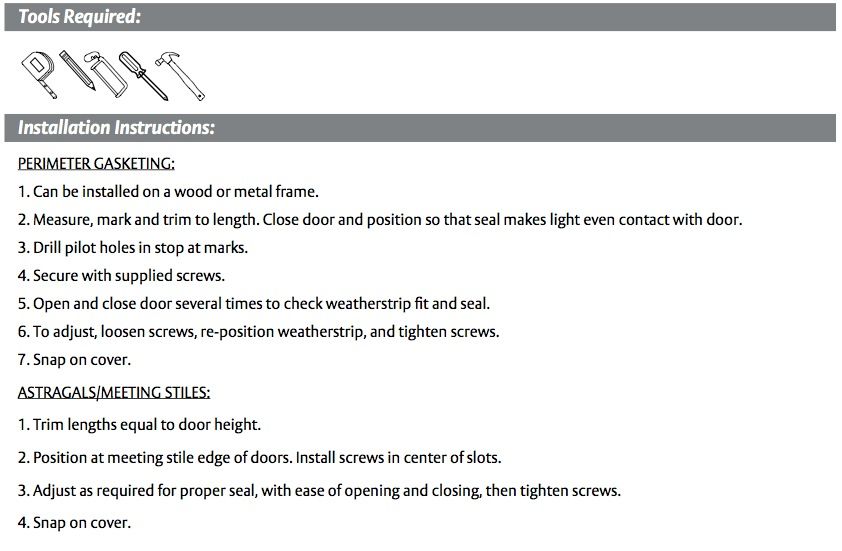

    P29310SPKV Installation Guide:

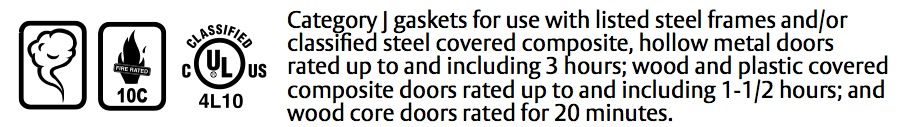

    Click to View Ratings Explained

                                                           * Eco-V (Vinyl) Seal has fire rating only.

    * GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.



    Complies with the ANSI / BHMA Code

    Silicone Rubber: A family of high performance synthetic materials, part mineral and part organic, also known as polysiloxane. In the manufacturing process, extrusions may be either solid or foamed with an integral protective skin. This material is capable of being formulated into a wide variety of compounds in varying hardnesses with inherent resistance to harsh environments. Silicone rubber is generally non-reactive, stable, and resistant to extreme environments and temperatures. It does not become brittle and hard in the cold or very soft in the heat. This material has excellent resistance to sunlight, weather, ozone, oxidization, water, and flame.
