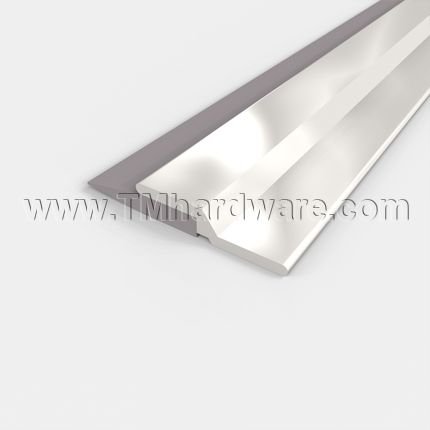

Pemko #305N Meeting Stile, Surface Mounted, Aluminum or Bronze and EPDM Seal
Meeting Stiles and Astragals seal the gap between double active doors, halting the transfer of temperatures between rooms and reducing the passage of undesirable sounds, light, drafts, insects, and dirt. This meeting stile is built to last and is rated for excellence in preventing fire, smoke, and air infiltration. Comes in clear aluminum with an EPDM seal.
PRICED BY THE FOOT
Note, if being purchased for both doors, select quantity 2, or as needed.Â
Â
Improving the seal between a pair of double active doors with a sturdy meeting stile can reduce energy waste and save money on utility bills. A good seal also keeps out unwanted sound, dirt, insects, and light. Designed with your safety in mind, this meeting stile allows the door to maintain its fire, smoke, and air- infiltration ratings.
Ratings: This meeting stile is fire, smoke, and air- infiltration rated. It can maintain fire ratings for steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to 1-1/2 hours; and wood core doors rated for 20 minutes.
Seal:Â Firm EPDM seals overlap when doors are closed to completely seal the gap, which improves energy efficiency and halts the infiltration of outside elements. EPDM is comparable to Sponge Neoprene, though it is more Eco Friendly and has
Easy Installation: Meeting Stile is installed on the face of both doors. When installing on pairs of fire doors care must be taken to maintain the requirements of NFPA 80.Â
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
To view meeting stile with a brush seal, please check out our Meeting Stile, .75" Aluminum Casing with .375" Brush Seal
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN305_N
-
Size84", 96"
- About This Product
-
Retainer MaterialAluminum, Bronze
-
Seal TypeEPDM
-
Door TypeDouble Active Doors
-
MountingSurface Mounted
-
- Dimensions
-
Seal Height3/8"
-
Total Height1-1/4"
-
Width3/16"
-
- Compliance Details
-
Compliance DetailsAir Infiltration Rated, Fire Rated, Smoke Rated, BHMA Certified, UL Classified
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
- Clear Anodized Aluminum - US28 / 628
- Dark Bronze Anodized Aluminum - US10B / 710
- Gold Anodized Aluminum - US4 / 688
- Bronze Mill Finish (Brass) - US4 / 72
