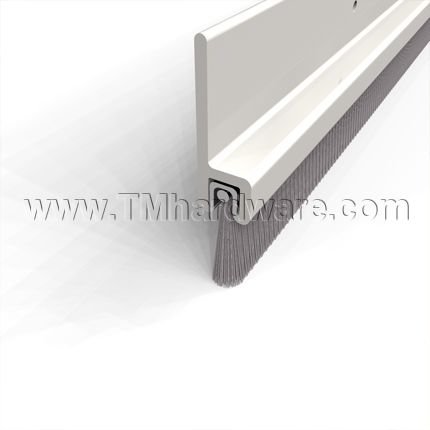

Pemko #18041 Meeting Stile, .75" Aluminum Casing with .375" Brush Seal

Pemko #18041 Meeting Stile, .75" Aluminum Casing with .375" Brush Seal
Pemko Manufacturing

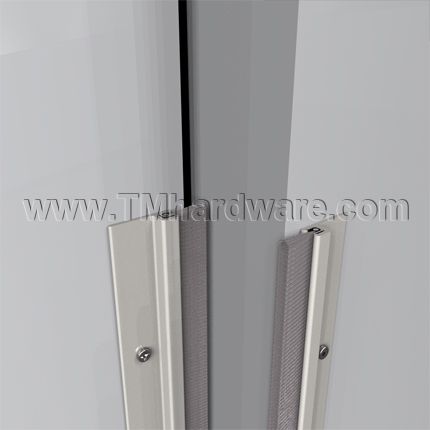

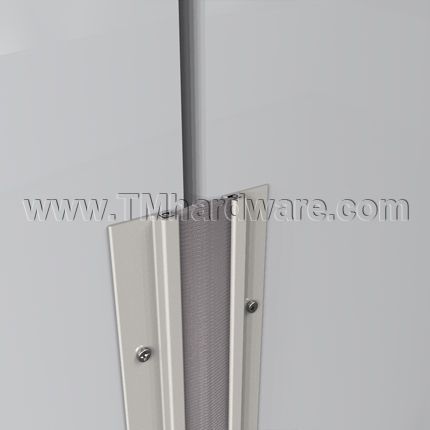

This meeting stile is designed to be surface mounted to the face of doors to seal a gap between a pair of double active doors. Options of nylon brush or soft brush available. Available in various anodized finishes and is custom cut to size.

PRICED PER FOOT.

Note, if being purchased for both doors, select quantity 2, or as needed.




See tabs below for additional information
    • SKU
      PK18041CNB
    • Market price:$9.56
      • save 10%
    • Starting price: Price: $8.60 per foot


    This meeting stile seals gaps up to .7" with minimum closing force. When applied, to ensure proper sealing properties, seals should mesh 1/32" - 1/13". The meeting stile in encased in a high quality aluminum anodized casing which is surface mounted to the face of the doors.

    Nylon Brush: is comprised of a dense type 6 nylon brush which is rated for smoke, fire and air infiltration and ensure a quality, long lasting product.

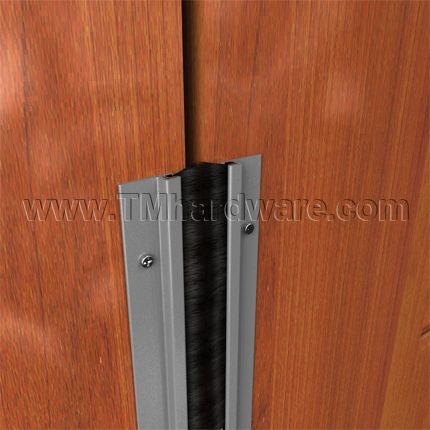

    Soft Brush: is made of very flexible, soft bristles.

    Installation screws provided. Screws are colored to blend unobtrusively with casing.

    Reminder: if being purchased for both doors, order quantity '2' or as needed.

    Insert Colors: Clear Anodized is supplied with Gray Insert. All other finishes are supplied with Black Inserts. For alternate combinations, contact us or call us at 845-388-1300 to place a request.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    This product can also be used as a Fire and Smoke Door Bottom.

      • SKU
        PK18041CNB
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      18041NB, 18041SB
    • About This Product
      • Retainer Material
        Aluminum
      • Seal Type
        Nylon Brush, Soft Brush
      • Door Type
        Double Active Doors
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        3/8"
      • Total Height
        1-1/8"
      • Width
        1/4"
      • Size (Feet)
        Custom Cut to Size
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Satin Bronze Powder Coat, White Suede Powder Coat (WSP)
    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, BHMA Certified, UL Classified
      • ANSI Designation
        R3A734
      • Warranty
        5 Year Limited Warranty

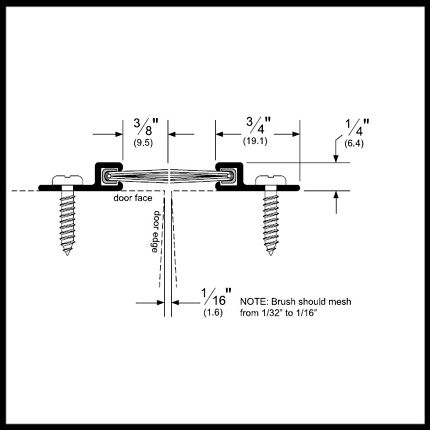

    Product Specs

    Click to Print Prodcut Specs

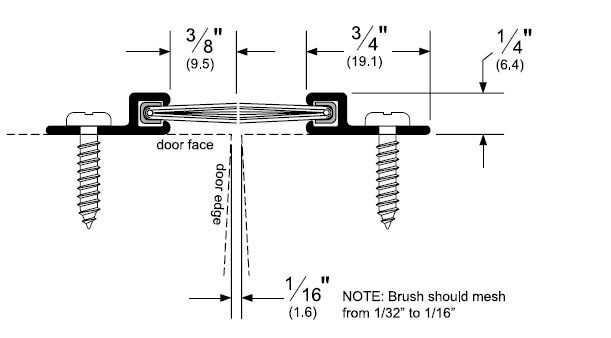

    Nylon Brush Version:

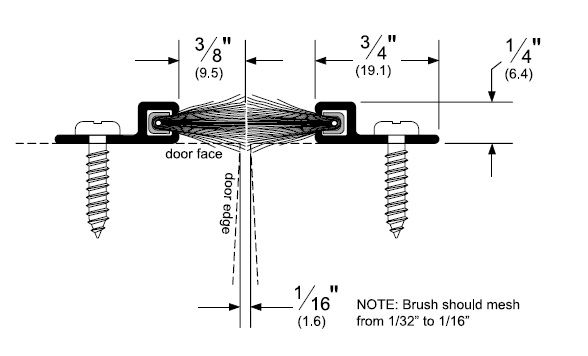

    Soft Brush Version:

    Compliance Details

    Click to View Ratings Explained

    Note, Ratings apply to Nylon Brush Version Only.

    Finishes Comply with the Following ANSI / BHMA Codes:
    • Clear Anodized Aluminum - US28 / 628
    • Dark Bronze Anodized Aluminum - US10B / 710
    • Gold Anodized Aluminum - US4 / 688
    • Satin Nickel Anodized Aluminum - US15 / 619
