Pemko #307 Door Bottom, Aluminum Casing with 1" Rubber Lip - QUICK SHIP

This door sweep can be used to seal up to a 1" the gap between the door and threshold or to the floor surface. It is fitted with an Eco-V™ (Vinyl) seal and is fire and smoke rated. Retainer is an aluminum mill finish, available in selection of sizes.

Finish: Aluminum Mill Finish

QUICKSHIP ITEM - this item is available in stock sizes and finishes and will ship in 1 business day! Additional custom sizes and options can be purchased here - Pemko #307 Door Bottom Sweep.

See tabs below for additional information

Quantity

Add to compare

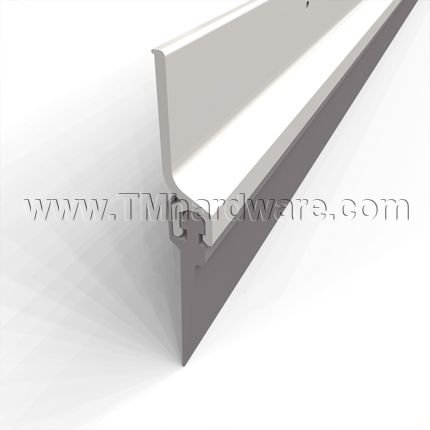

This door bottom is surface mounted to the face of a door. It is used to seal a door to a threshold or the floor surface. The 7/8" aluminum channel is fitted with an Eco-V™ (Vinyl) rubber gasket that can seal gaps up to 1".

Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See Insert Material Tab for more information.

Installation instructions and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Click here to see more rubber door bottoms.

- Weight
  3 lbs
- SKU
  PK307AV36
QuickShip
Yes
Manufacturer
Pemko Manufacturing
MPN
307V
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  -22°F to +220°F (PemkoPrene® Rubber Seal)
  -4°F to +122°F (Eco-Vinyl Rubber Seal)
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Vinyl Rubber Seal
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  1" Height
- Total Height
  1-7/8" Height
- Additional Dimensions
  Door seal is 1/4" thick
- Length
  36" Length, 48" Length
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish
  Mill Finish Aluminum (US27)
Compliance Details
- Compliance Details
  Fire Rated, Smoke Rated, UL Classified
- ANSI Designation
  R3G434
- Warranty
  5 Year Limited Warranty

PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.

Eco-V™(Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.

Click to Print

P307 Product Specs:

Click to Print

P307 Installation Guide:
