Pemko Hide Slide™ Series for Wood Doors, Hidden Sliding Door System

Pemko Hide Slide™ Series for Wood Doors, Hidden Sliding Door System
Pemko Manufacturing

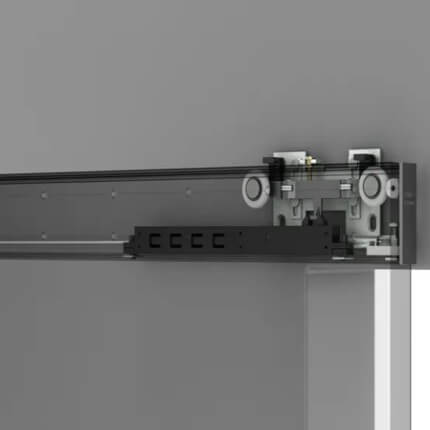

The Hide Slide Series from Pemko is a hidden sliding door system made specifically for wood doors. It completely and effectively hides the hardware from view, regardless of whether your sliding barn door is open, closed, or moving. The nylon wheels with steel ball bearings provide a smoother performance, and the simple design makes your door seem to float as it moves smoothly over the door opening.

SOLD PER SET

See tabs below for additional information
    • SKU
      PKHIDESLIDE/48
    • Market price:$1,007.39
      • save 10%
    • Starting price: Price: $906.65 per set


    The Hide Slide Series from Pemko is a hidden sliding door system made specifically for wood doors. It completely and effectively hides the hardware from view, regardless of whether your sliding barn door is open, closed, or moving. The nylon wheels with steel ball bearings provide a smoother performance, and the simple design makes your door seem to float as it moves smoothly over the door opening.

    Features:

    • Six-way adjustable top roller enables door to overcome common wall irregularities
    • Top roller allows for vertical, horizontal, and tiltadjustment of the door
    • Compatible with doors 32" - 48" wide
    • Adjustable top roller with nylon wheels and steel bearings
    • Accommodates 1/2", 1" and 1-1/2" clearances between wall and face of the door
    • Soft close and open
    • Three integrated safety features come standard and are hidden from view

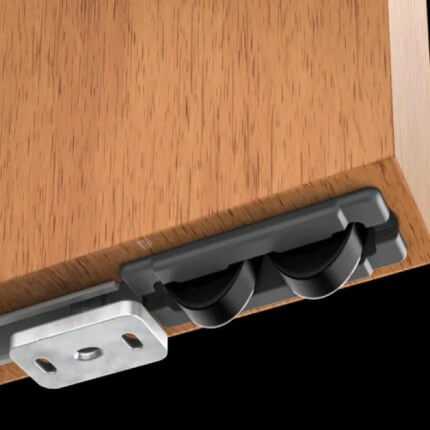

    • Four bottom rollers with steel bearings

    Benefits:

    • Designed to overcome common wall irregularities
    • Adjustable without having to drop the door
    • Covers a variety of door widths
    • Track can be cut in the field for custom door widths
    • Guides door smoothly and quietly
    • Adapts to different types of trim and molding around the door opening
    • Door eases into open and closed positions
    • Ensures safe operation of door
    • Non-marring, reduces friction when operating
    • Does not require floor-mounted tracks on hard smooth floor

     Hide Slide Kit Inclusison:

    • 1 Aluminum Track
    • 2 Soft Close Devices
    • 2 Backup Hard Stops
    • 2 Cable Clamps
    • 2 End Caps
    • 1 Flush Pull (HIDESLIDE/PULL-BSP)
    • 1 Adjustable Top Roller
    • 1 Safety Cable
    • 2 Bottom Rollers
    • 1 Bottom Guide
    • 1 Bottom Guide Channel Insert

    Recommended Applications:

    • Hospitality
    • Commercial
    • Healthcare
    • Multi-Family

    SOLD PER SET

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5-year limited guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

    Check out our LP200 Low Profile Concealed Single Sliding Door.

      • SKU
        PKHIDESLIDE/48
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      HIDESLIDE/48
    • About This Product
      • Door Type
        Single Door, Bi-parting
      • Wheel Type
        Solid Nylon
      • Series
        Hide Slide
      • Door Material
        Wood Doors
      • Mounting Type
        Sidewall Mount
      • Material
        Aluminum
    • Dimensions
      • Door Panel Weight
        176 lbs
      • Door Width
        32"-48"
      • Door Thickness
        1-3/4" to 2"
      • Track Length
        32'-48'
      • Door Height
        Minimum of 3" + Opening Height
    • Finishes
      • Finish
        Industrial Steel Zinc Coated Steel (IS)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty
