Pemko #XG2212PK773 Excessive Gap Solutions, Aluminum, Door Shoe, for Gaps up to 1-1/2"

PKXG2212_PK773 Excessive Gap Aluminum Door Shoe Sweep
Pemko Manufacturing

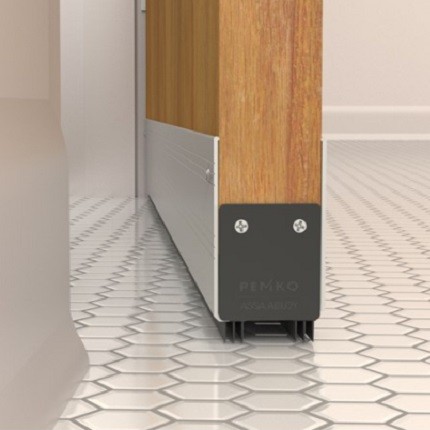

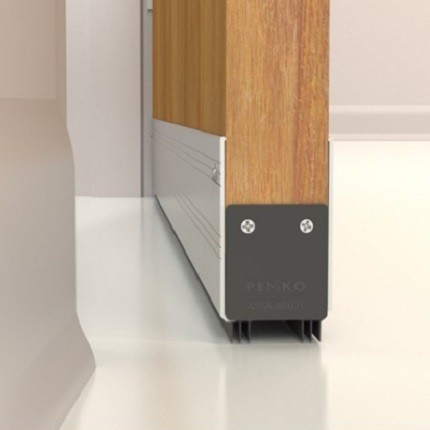

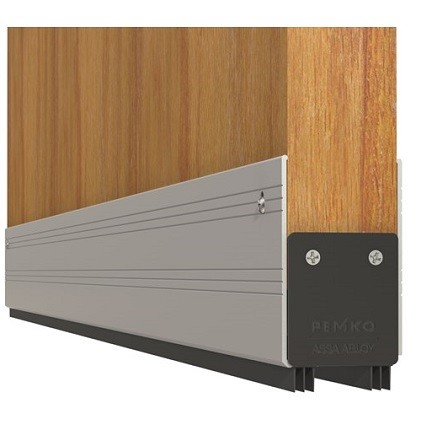

This Pemko Excessive Gap Door Bottom is designed to restore lost fire ratings resulting from large gaps under doors up to 1-1/2". The Pemko #XG2212 is a combination of Aluminum Door Shoe with Silicone Triple Fin Seals, Aluminum Backer, Intumescent interior and exterior strips, and End Caps.

It can be used on steel composite, hollow metal doors, wood and plastic-covered composite core doors, with no special preparation needed beforehand. Available in a variety of finishes and lengths.

PRICED PER ITEM

See tabs below for additional information
    • SKU
      PKXG2212APK773BL36
    • Market price:$401.63
      • save 10%
    • Starting price: Price: $361.46 per item


    This product helps bring fire doors back into compliance, resulting from large gaps under doors, up to 1-1/2". It's a quick and easy resolution to fire door inspection issues and eliminates the costly expense of replacing doors.

    See Excessive Gap Door Solution Brochure for more information.

    Pemko #XG2212 Combines:

    • Aluminum Door Shoe
    • (2) Triple Fin Silicone Seals
    • Aluminum Backer
    • HSS90150XG Interior Intumescent Strip
    • HSS2000 Exterior Intumescent Strip
    • End Caps

    Clearances: Can be used on clearances in excess of 3/4" and up to 1-1/2” for 90-minute rated openings.

    Door Type: It can be used on steel composite, hollow metal doors, wood and plastic-covered composite core doors, with no special preparation needed beforehand.

    Installation: No special preparation is needed on existing doors; it can easily be trimmed, drilled, or notched in the field for easy installation and maintenance.

    Replacements:

    • Replacement gasket is PK773BL.
    • Replacement end plate kit is K450XG.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For a similar door shoe sweep, see our Pemko #2212PK773 Door Shoe Sweep.

      • SKU
        PKXG2212APK773BL36
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • About this Product
      • Door Shoe Retainer Material
        Aluminum Alloy, Temper Retainer with PemkoPrene Gasket
      • Door Type
        Steel Composite, Metal Door, Wood & Plastic-covered Composite Core Doors
      • Seal Type
        PemkoPrene® Rubber Seal
      • Mounting
        Door Shoe Mount

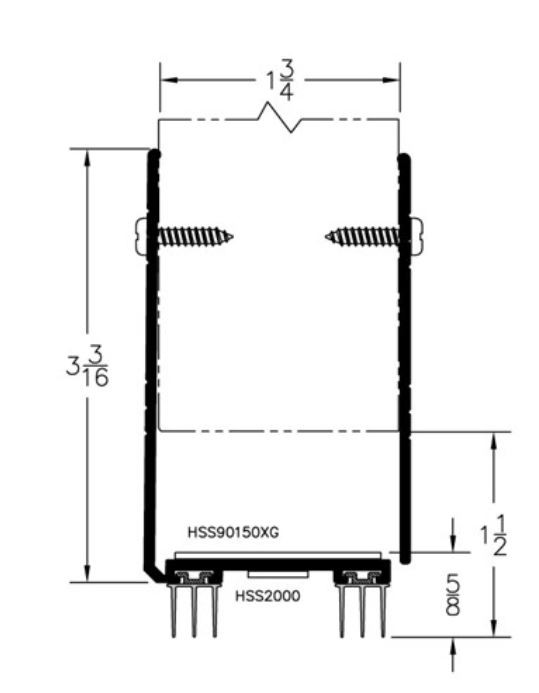

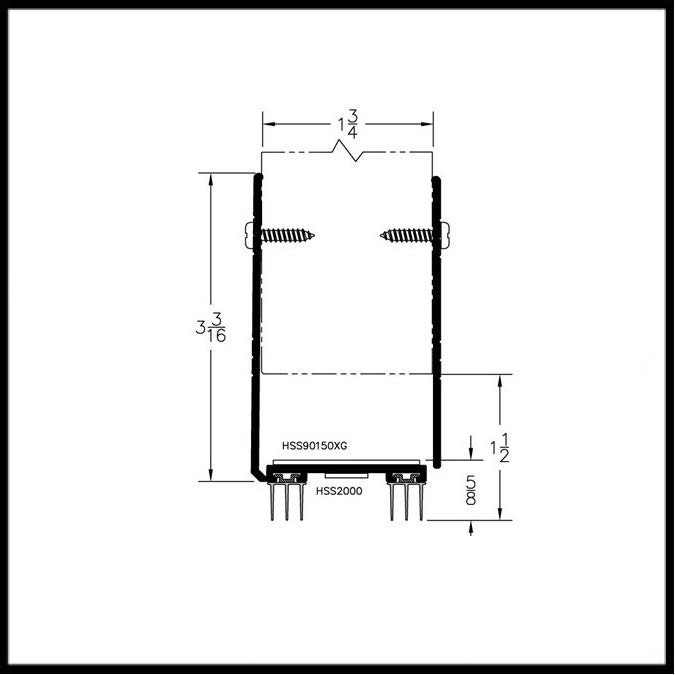

    • Dimensions
      • Door Seal Weight
        Estimated per foot: 0.45 lbs
      • Total Height
        3-3/16" Height
      • Length
        36" Length, 42" Length, 48" Length
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Installation Screws
        Provided with No. 6 x 5/8" PHSMS, Phillips
    • Special Features
      • Intumescent / FireStop
        Yes
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Black Suede Powder Coat, White Suede Powder Coat, Oil Rubbed Bronze, Equiv. (10BE)
    • Compliance Details
      • Compliance Details
        UL Classified, OSHA Compliant, Non-Combustible, NFPA80, HSS2000 & HSS90150XG High Performance Intumescent
      • Warranty
        5 Year Limited Warranty

    UL Classified: – Excessive clearance solutions for door and frame clearances when installed per the manufacturer’s instructions, intended for use with UL Classified steel composite, hollow metal doors, wood and plastic covered composite core doors with UL Listed fire door frames up to 1-1/2 hour - up to 1-1/2".

    NFPA80: Indicates that clearances (dimension from door edge to frame) around the top and vertical edges of a fire door are allowed to be: • 1/8" for wood doors • 1/8" +/- 1/16" for metal doors NFPA80 also indicates that the allowable clearance at the bottom of the door (dimension from bottom rail to top of finished floor) is allowed to be: • Up to ¾" maximum
