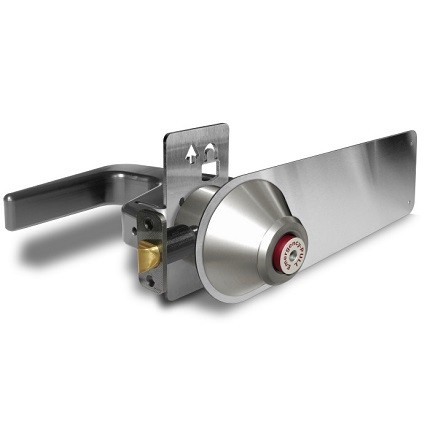

Restroom UP LoK UL-134 Ultimate Privacy Lock, Hands-Free Solution, For Single Occupancy Restrooms

Restrooms worldwide continue to evolve into cleaner and safer public infrastructure. The integration of electronic sensor technologies, such as faucets and hand driers, have made vast improvements by minimizing physical contact points. The restroom journey is a circular one that begins and ends with the door handle. In most single occupancy restrooms it is the lone obstacle in the way of completing a hands-free round trip. The Restroom UP LoK™ completes the hands-free circle.

This Ultimate Privacy door lock is the world's first and only completely hands-free solution for single occupancy restrooms!

Features:

• Total hands-free operation without the use of electronics or motors.
• Intuitive hands-free optional pulling, pushing, locking and unlocking.
• Silver lock with black handle.
• Nothing to grip or twist.
• Locked status indicator on both sides of the door.
• Fits nearly all existing commercial and residential restroom doors that have cylindrical lock preparation.
• Patent pending and fully compliant.
• Can be easily defeated from the ingress side of the door.
• Helps reduce the usage of disposable paper products and the associated trash can waste, while achieving better public health and hygiene.


Door Prep: 161 prep - cylindrical lock prep that has a 2-1/8-in hole and 2-3/4-in backset, where the door edge prep is 1-1/8 by 2-1/4 in.

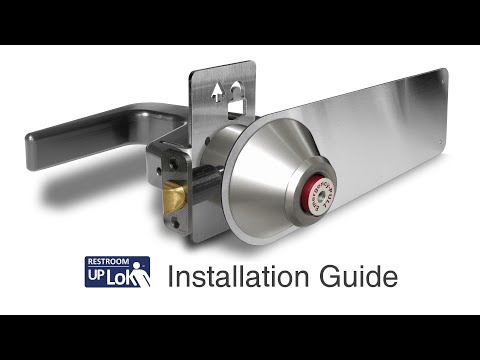

Installation: All original door handle/locking hardware should be completely removed from the door prior to installation. When installed correctly the UP handle should appear “backwards” to conventional grip and twist handles. For more details on how to install this lock, view video clip above.

Please note, Power Drill, 1/16″ hex head key, Phillips screwdriver, and a square, are required tools for installation and are not included with the product.

Operation: The field reversible Restroom UP LoK™ lets the user decide how they want to connect with the door.

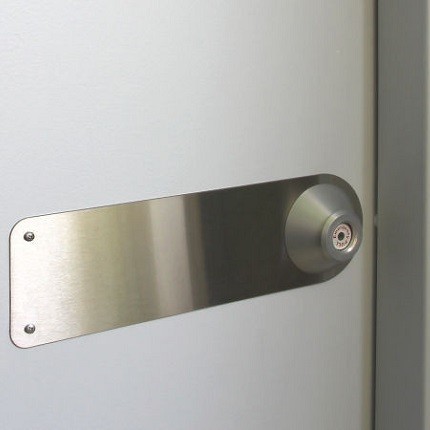

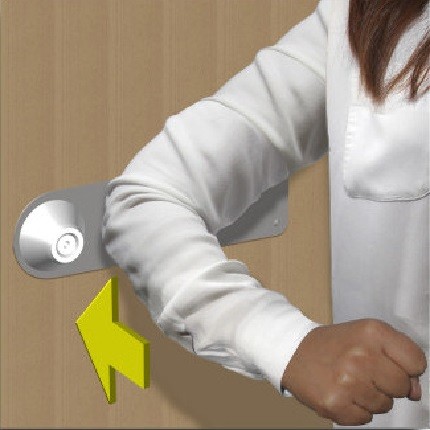

• For pushing, the entire face of the door is a potential push point by any part of the body.

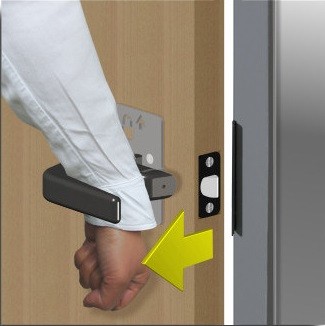

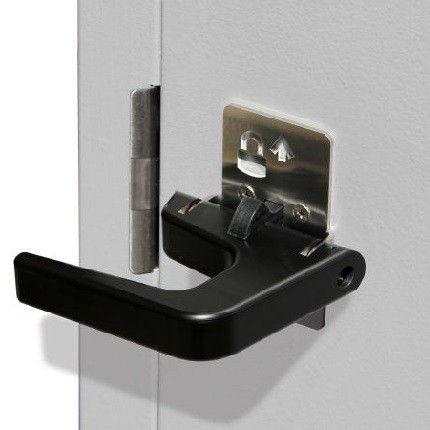

• For pulling, the unique “U” shaped handle welcomes a wrist or forearm.

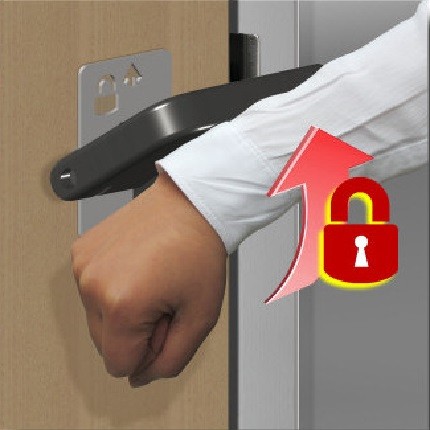

• For locking, raise the interior U-shape latch handle.

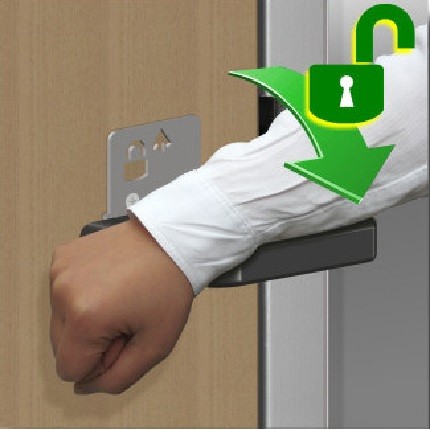

• For unlocking, bump the interior U-shape latch handle.

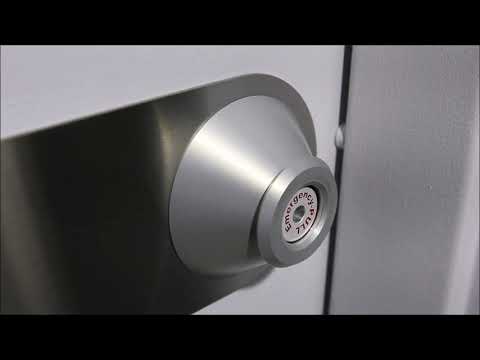

In case of emergency, the lock can be overrided from outside the restroom. For details and instructions, view the video clip above.

Product Comparison: Although automatic door operators are being used for more applications than ever before, automatic door operators aren’t suitable for every opening because of the nature of the opening or the cost. See our Product Comparison for more details on the UP Lock features.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a 5 year warranty against defects in materials and workmanship.
