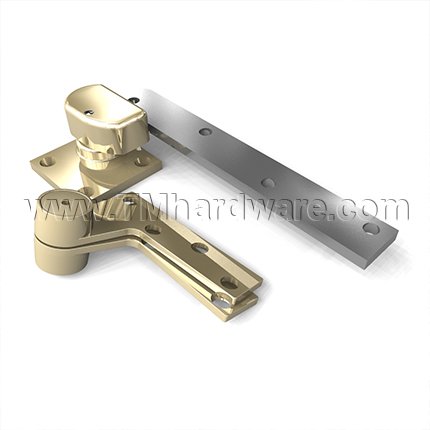

Rixson 147, Door Closer Pivot, Pivot Set, Standard-Duty

The 147 Door Pivot for Door Closer, is a light-weight pivot set designed for standard-duty interior and exterior doors and can support doors with up to 600 lbs. of weight.  This set includes 180 top pivot and is available in a variety of finishes. View the options and details below.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rixson 147, Door Closer Pivot, Pivot Set - QuickShip

Features:

• Exterior or interior doors
• Handed
• 180 top pivot included
• M19 intermediate pivot required (sold separately)
• • 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Bottom pivot mounts directly to floor
• Doors will swing 180°, trim permitting
• Uses same arm and cap as 27 floor closer
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30"              (762mm) of door height warrants another intermediate pivot
• Furnished with wood and machine screws

Optional Features

• Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard  (please state on the note)

PRICED PER SET

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
