Rixson 173, Door Closer Pivot, 3/4" Offset, Light Duty/Weight Pivot Set

Norton 173, Door Closer Pivot, 3/4" Offset, Light Duty/Weight Pivot Set, Bright Brass Finish
Rixson

The 173 Door Pivot for Door Closer, is a light-weight pivot set designed for very light-duty interior doors and can support doors with up to 250 lbs. of weight.  This set includes 180 top pivot and is available in a variety of finishes. View the options and details below.

PRICED PER SET

See tabs below for additional information
    • SKU
      RX-173-605
    • Market price:$519.80
      • save 25%
    • Starting price: Price: $389.85 per set


    The 173 Door Pivot for Door Closer, is a light-weight pivot set designed for very light-duty interior doors and can support doors with up to 250 lbs. of weight.  This set includes 180 top pivot and is available in a variety of finishes. View the options and details below.

    Features:

    • Interior doors
    • Weight 150 lbs.

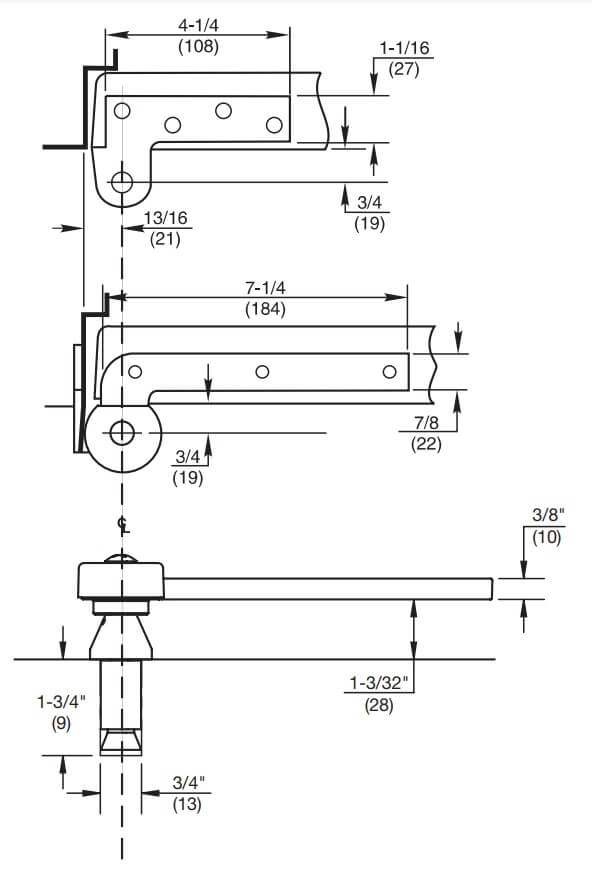

    • Door sizes up to 3'0" x 8'0" x 1-3/4" (914x2438x44mm)
    • Handed
    • 180 top pivot included
    • 19 intermediate pivot recommended for all doors over 6'8" (2032mm) (sold separately)
    • 3/4" (19mm) offset only (measured from centerline of pivot to face of door)
    • Door edges must be beveled 1/8" in 2"

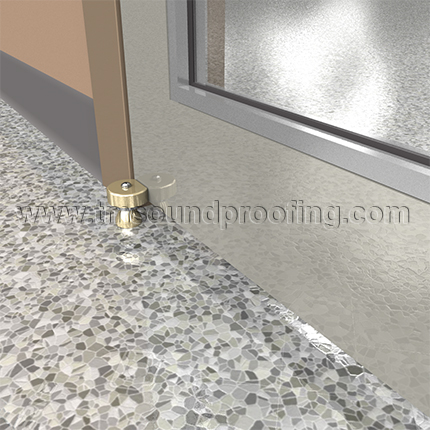

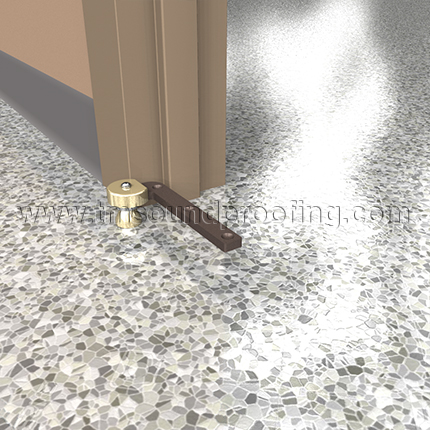

    • Bottom pivot mounts directly to concrete floor
    • 3/8" (10mm) vertical adjustment
    • No spindle extensions available
    • Door will swing 180°, trim permitting
    • Uses same arm and cap as 117 pivot set
    • Non-ferrous base metal
    • Furnished with wood and metal screws
    • Available in plated finishes

    Optional Features

    • Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard  (please state on the note)

    PRICED PER SET

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 117, Door Closer Pivot, Light Duty

      • SKU
        RX-173-605
    • QuickShip
      No
    • Manufacturer
      Rixson
    • MPN
      EH117-1/4
    • Description
      • Series
        Norton 117-1/4 Series
      • Handing
        Right Handed, Left Handed
    • Door Description
      • Door Weight
        Up to 250 LB
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626)
    • Compliance Details
      • Warranty
        2 Year Limited Warranty
