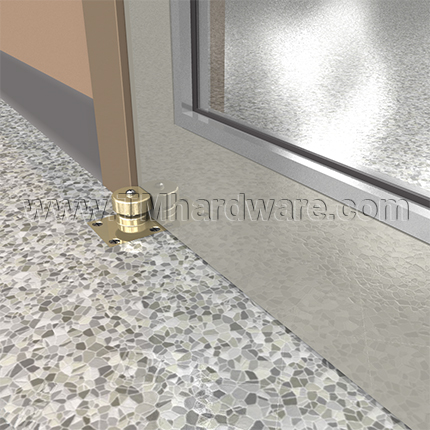

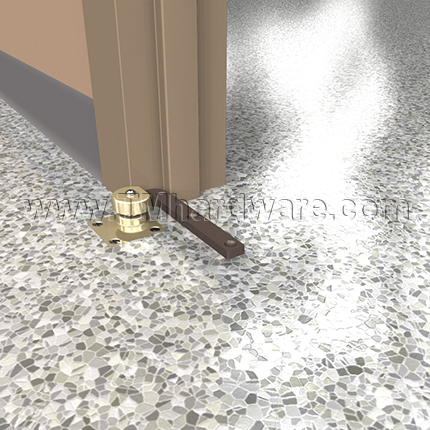

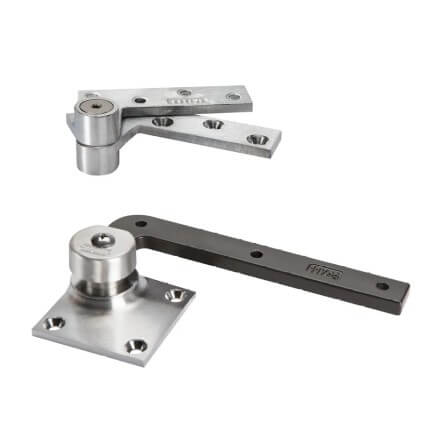

Rixson 117, Door Closer Pivot, Light Duty

The 117 Door Pivot for Door Closer, is a light-duty pivot set designed for interior doors and can support doors with up to 300 lbs. of weight.  This set includes 180 top pivot and is available in a variety of finishes. View the options and details below.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rixson 117, Door Closer Pivot - QuickShip

Features:

• Interior doors
• Weight up to 300lbs.
• Door width up to 3'6" (1067mm)
• Handed
• 180 top pivot included; 119 intermediate pivot recommended (sold separately)

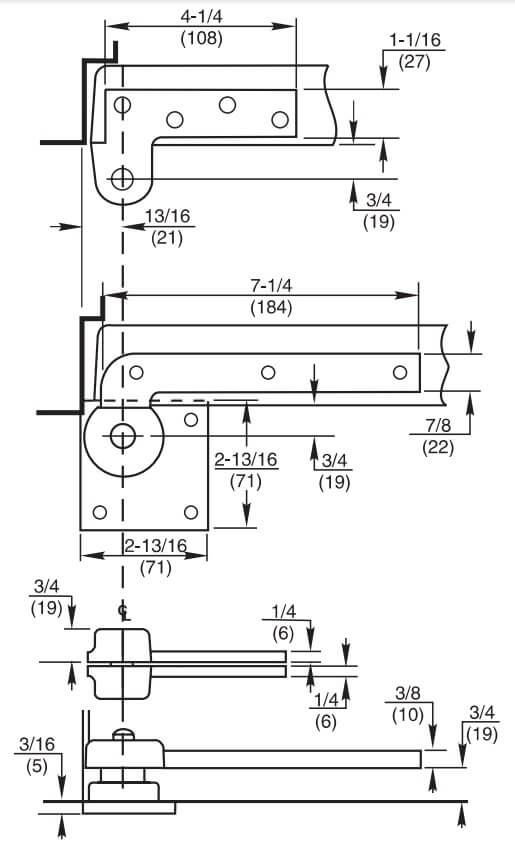

• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2
• Bottom pivot mortised into floor
• Non-ferrous base material
• Doors will swing 180°, trim permitting
• Doors up to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
• Furnished with wood and machine screws

Optional Features

• Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard  (please state on the note)

PRICED PER SET

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

Click here to view Rixson 117-1/4, Door Closer Pivot, Jamb Attached Pivot Set. 3/4" Offset, Light Duty
