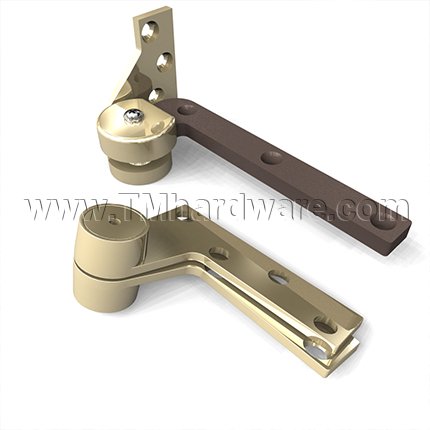

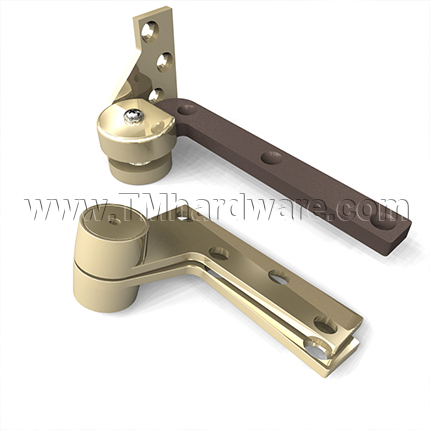

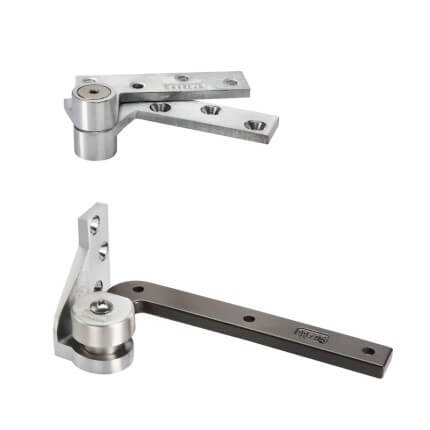

Rixson 117-1/4, Door Closer Pivot, Jamb Attached Pivot Set. 3/4" Offset, Light Duty

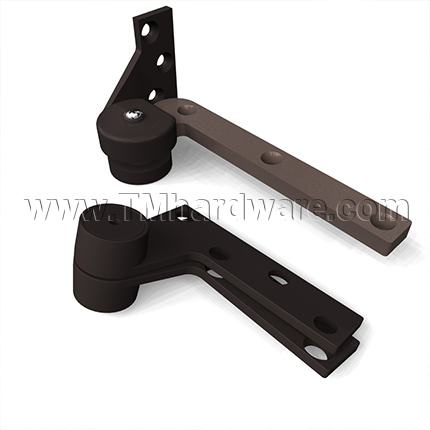

The 117-14 Door Pivot for Door Closer, is a light-duty pivot set designed for interior doors and can support doors with up to 250 lbs. of weight.  This set includes 180 top pivot and is available in a variety of finishes. View the options and details below.

Features:

• Interior doors
• Weight up to 250lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
• Door width up to 3'6" (1067mm)
• Handed
• 180 top pivot included; 119 intermediate pivot recommended (sold separately)
• Bottom pivot mortised into side jamb

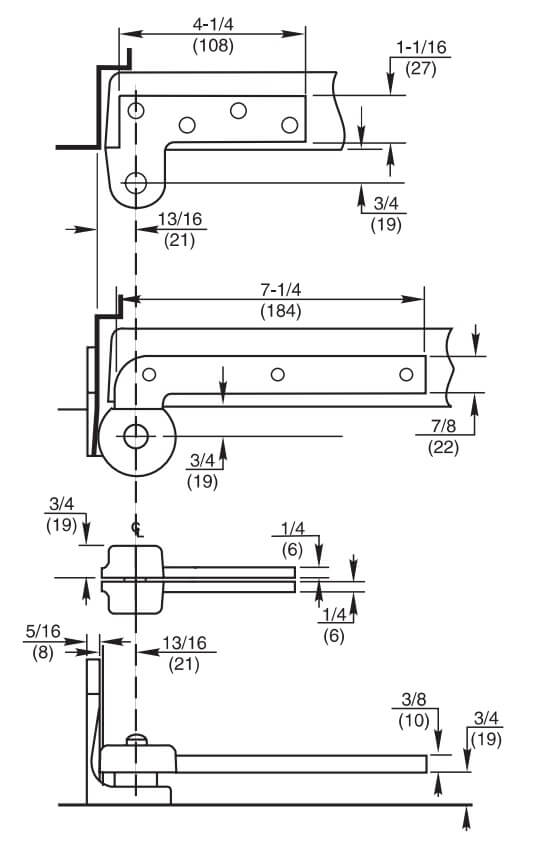

• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Weight of door borne by floor
• Not available for fire-rated doors
• Non-ferrous base material
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot

Optional Features

• Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard  (please state on the note)

PRICED PER SET

This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
