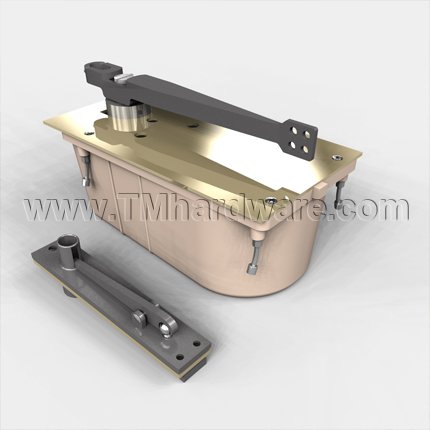

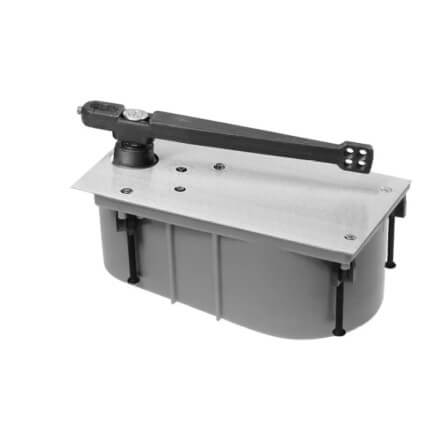

Rixson 28 Series, Floor Door Closer, Center Hung, Single Acting

Norton 28 Series, Floor Door Closer, Center Hung, Single Acting, Non-hold Open, Bright Brass Finish
Rixson

For optimal mechanical support and control of a door, the Rixson 28 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. Built with a centering arm and movable screws to support doors up to 350 pounds, whether they are external or internal. For threshold applications, this makes it possible to remove the closer without having to demount the door.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      RX-28N-605
    • Market price:$2,931.22
      • save 25%
    • Starting price: Price: $2,198.42 per item
    Additional discounts will be applied when added to cart!


    For optimal mechanical support and control of a door, the Rixson 28 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. Built with a centering arm and movable screws to support doors up to 350 pounds, whether they are external or internal. For threshold applications, this makes it possible to remove the closer without having to demount the door.

    Features:

    • Single Acting, Handed
    • Exterior or Interior Doors
    • 340 top pivot included
    • Centering arm with adjusting screws in face of door
    • Separate and independent valves for closing speed, latch speed and backcheck

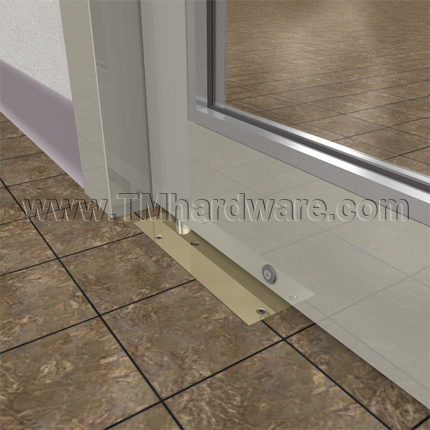

    • Available with floor plate or threshold installation (floor plate shown)
    • Cycolac, rustproof cement case
    • Not allowed for fire rated doors
    • With 587 Arm Variants Available
      • designed to eliminate visible adjusting screws on face of door; arm bolt locks arm to closer spindle; adjustments made through heel of door

    Benefits:

    • Heavy duty closer constructed with robust materials and internal components for long life and consistent operation
    • Aesthetically appealing way to support and control the door
    • Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
    • Built-in positive dead stop prevents door from swinging beyond the desired opening degree
    • Concealment in-floor provides vandal resistance
    • Multiple valves provide precision adjustment and enhanced control
    • Weight of door is supported by floor closer

    Optional Features:

    • Delayed action option –  (non-hold open closers only)
    • Cold weather fluid option – (not available for closers with delayed action)
    • Sealed closer option
    • Extended spindles available in 1/2" increments up to 2" longer than standard (please state on the note)

    Certification:

    • ANSI/BHMA A156.4, Grade 1
    • Buy American Act
    • Certain models meet ANSI A117.1 (PH prefix)

    PRICED PER UNIT

    This product has a 10-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 27 Series, Floor Door Closer, Single Acting, 180° Opening, Heavy Duty

      • SKU
        RX-28N-605
    • QuickShip
      No
    • Manufacturer
      Rixson
    • Optional Feature
      Standard, Delayed Action (DA), Cold Weather Fluid (CFW)
    • Description
      • Series
        Norton 28 Series
      • Closer Performance
        Heavy Duty
      • BHMA Grade
        Grade 1
      • Handing
        Right Handed, Left Handed
    • Door Description
      • Door Weight
        Up to 350 LB
      • Door Opening Degree
        85°, 90°, 95°, 105°
    • Features
      • Function
        Non-hold open, Selective Hold Open, Non-hold Open, w/ 554 Arm, Selective Hold Open, w/ 554 Arm
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Dark Satin Bronze, Equiv (613e), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Warranty
        10 Year Limited Warranty
