Rixson 30 and 40 Series, Floor Door Closer, Center Hung, Double Acting

For optimal mechanical support and control of a door, the Rixson 30 and 40 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This works perfectly for standard door frame installation for interior or exterior doors weighing up to 300lbs

Features:

• Double acting, non-handed
• Interior or exterior doors
• 340 top pivot included
• Maximum door opening 103°
• Centering arm with adjusting screws in face of door (critical for double acting doors)
• Adjustable closing speed valves for each direction of door swing
• Mechanism returns door to center
• Auxiliary door stop required, overhead or floor type
• Not allowed for fire rated doors
• Available with floor plate or threshold installation
• Furnished with wood and machine screws
• Door weight

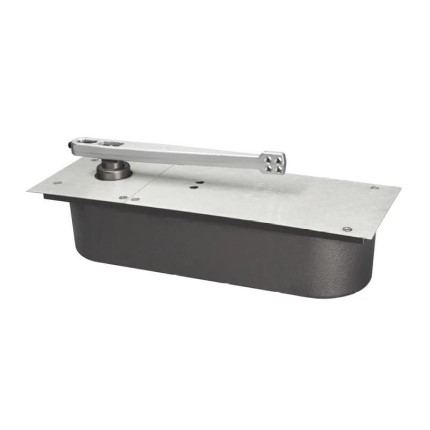

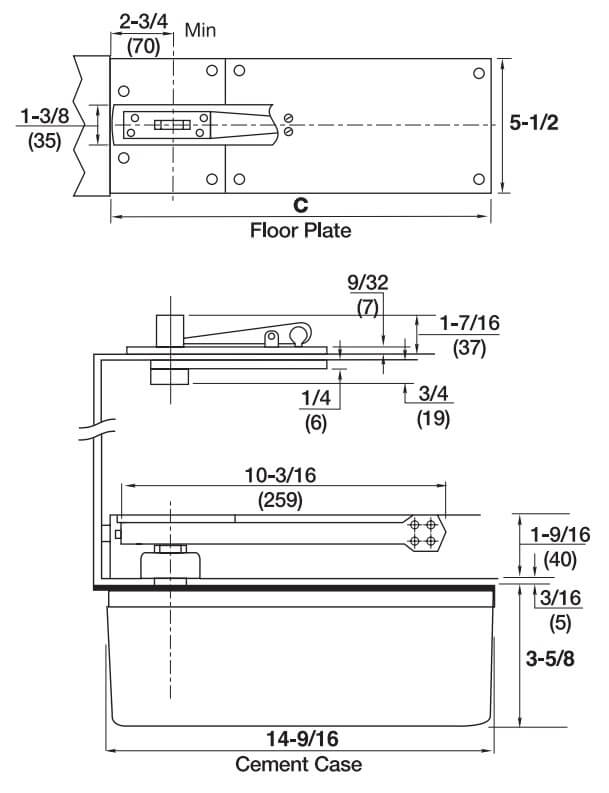

  • 30 Series - 200 Lbs.

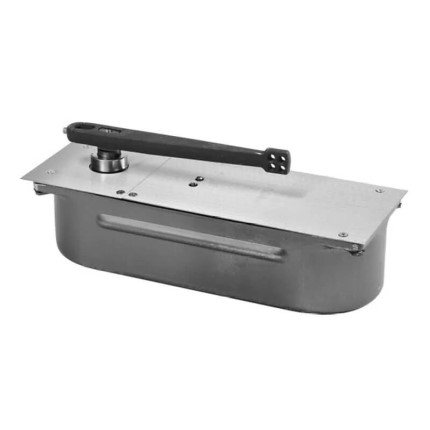

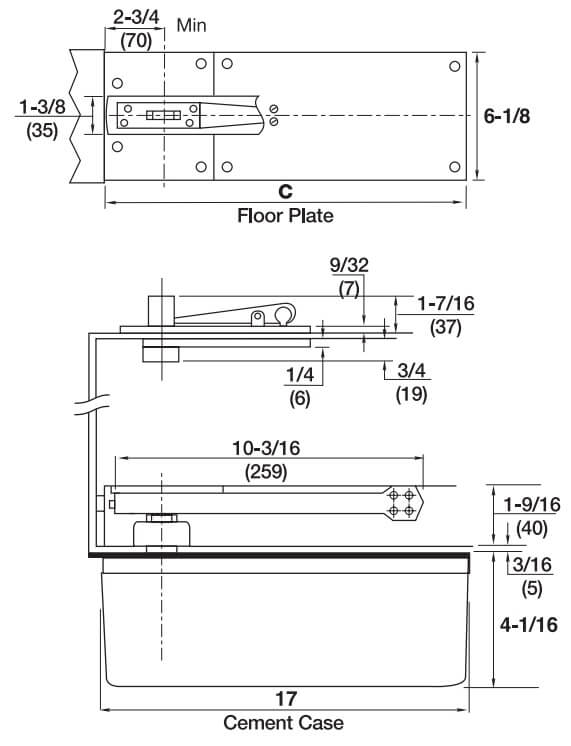

  • 40 Series - 300 Lbs.

Benefits:

• Aesthetically appealing way to support and control the door
• Constructed with robust materials and internal components for long life and consistent operation
• Weight of door is supported by floor closer

Optional Features:

• Delayed action option –  (non-hold open closers only)
• Cold weather fluid option – (not available for closers with delayed action)
• Sealed closer option
• Extended spindles available in 1/2" increments up to 2" longer than standard (please state on the note)

Certification:

• Certain models meet ANSI A117.1 (PH prefix)

PRICED PER UNIT

This product has a 10-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
