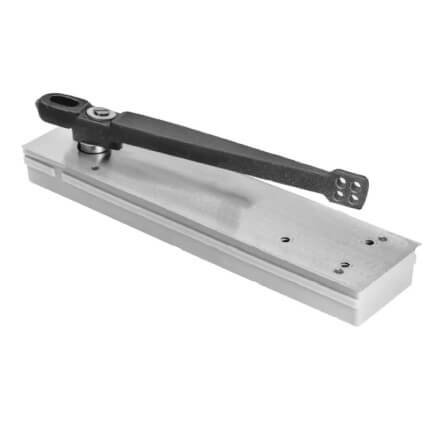

Rixson 50 Series, Door Closer, Center Hung, Single Acting

Norton 50 Series, Door Closer, Center Hung, Single Acting, 36" Door Width, Non-hold Open w/ Backcheck, Bright Brass Finish
Rixson

For optimal mechanical support and control of a door, the Rixson 50 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This works perfectly for standard door frame installation for interior doors up to 250lbs. with moderate traffic.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      RX-5013NBC-605
    • Market price:$2,927.83
      • save 25%
    • Starting price: Price: $2,195.87 per item
    Additional discounts will be applied when added to cart!


    For optimal mechanical support and control of a door, the Rixson 50 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This works perfectly for standard door frame installation for interior doors up to 250lbs. with moderate traffic.

    Features:

    • Single acting, handed, interior doors

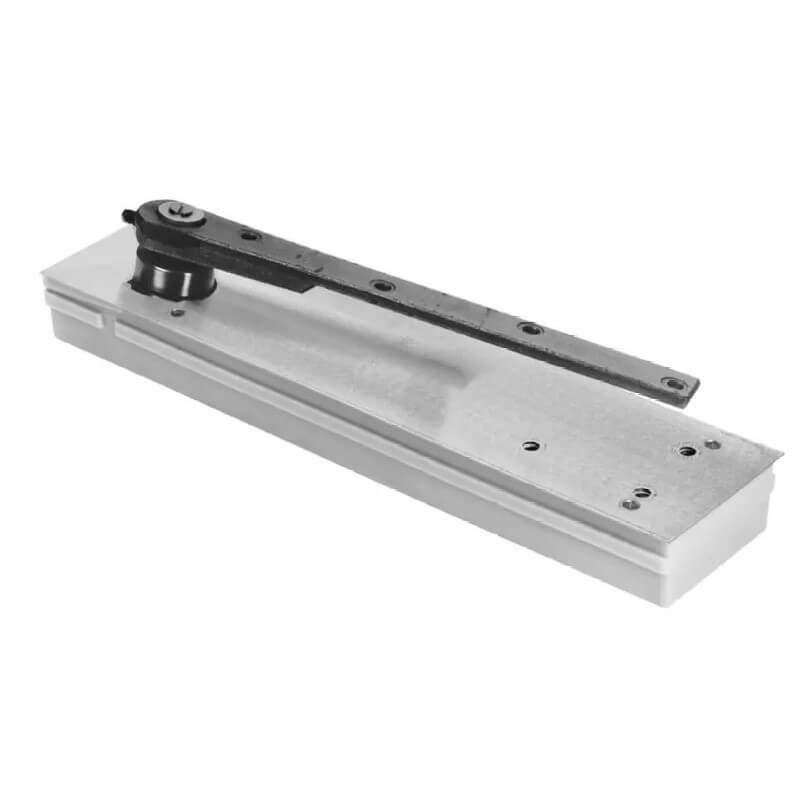

    • 554 concealed arm is designed to eliminate visible adjusting screws on face of door; arm bolt locks arm to closer spindle; adjustments made through heel of door
    • 340 top pivot included
    • Centering arm with adjusting screws in face of door
    • Separate and independent valves for closing speed, latch speed, and backcheck
    • Interchangeable spindle adapters
    • Available with floor plate or threshold installation
    • Cycolac, rust-proof cement case
    • Furnished with wood and machine screws

    Benefits:

    • Ideal for upper levels of multi-story buildings due to shallow depth design
    • Aesthetically appealing way to support and control the door
    • Centering arm allows adjustment through face of door
    • Concealment in-floor provides vandal resistance
    • Multiple valves provide enhanced control
    • Constructed with robust materials and internal components
    • Weight of door is supported by floor closer

    Optional Features:

    • Delayed action option –  (non-hold open closers only) Closer will not have backcheck
    • Extended spindles available in 1/2" increments up to 2" longer than standard (please state on the note)
    • Automatic Hold Open specify 90°, 105° , (Option not applicable for Non-hold open)
    • Arm reinforcement bracket for wood doors prefix
    • Frame stop required on lock edge; if not supplied by frame manufacturer, Norton Rixson 60131 is recommended

    Certification:

    • Buy American Act

    PRICED PER UNIT

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson F53 and F5310 Series, Door Closer, Independently Hung

      • SKU
        RX-5013NBC-605
    • QuickShip
      No
    • Manufacturer
      Rixson
    • Door Width
      36" (914mm), 42" (1067mm), 48" (1219mm)
    • Description
      • Series
        Norton 50 Series
      • Handing
        Right Handed, Left Handed
    • Door Description
      • Door Weight
        Up to 250 LB
      • Door Opening Degree
        90°, 105°
    • Features
      • Function
        Non-hold Open w/ Backcheck, Automatic Hold Open w/ Backcheck, 554 Arms, Non-hold Open w/ Backcheck, 554 Arms, Automatic Hold Open w/ Backcheck
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Dark Satin Bronze, Equiv (613e), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Warranty
        2 Year Limited Warranty
