Rixson 996M Electromagnetic Door Holder, Wall Mounted, Adjustable Armature, Surface Wiring

Rixson 996M Electromagnetic Door Holder, Wall Mounted, Adjustable Armature, Surface Wiring, Dark Satin Bronze, Equiv Finish
Rixson

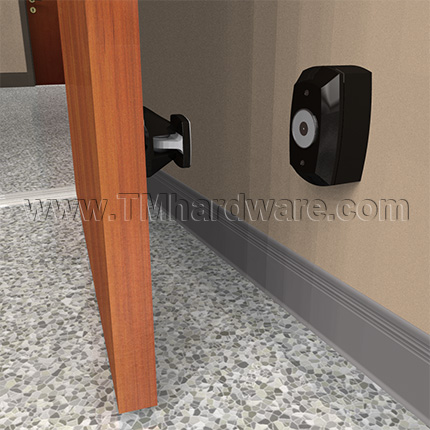

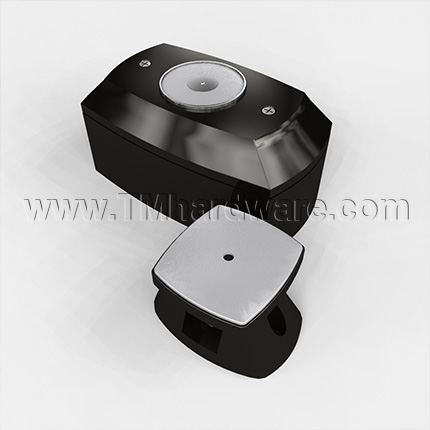

The wall-mounted 996M electromagnetic door holder from Rixson features an adjustable armature. Their principal function is to maintain the open position of fire and smoke barrier doors until a remote smoke detector or other switching device activates them.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rixson 996M Electromagnetic Door Holder - QuickShip

PRICED PER UNIT

See tabs below for additional information
    • Weight
      4 lbs
    • SKU
      RX-996M-613e
    • Market price:$838.46
      • save 25%
    • Starting price: Price: $628.85 per set


    The wall-mounted 996M electromagnetic door holder from Rixson features an adjustable armature. Their principal function is to maintain the open position of fire and smoke barrier doors until a remote smoke detector or other switching device activates them.

    Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rixson 996M Electromagnetic Door Holder - QuickShip

    Features:

    • Wall mount
    • Surface wiring

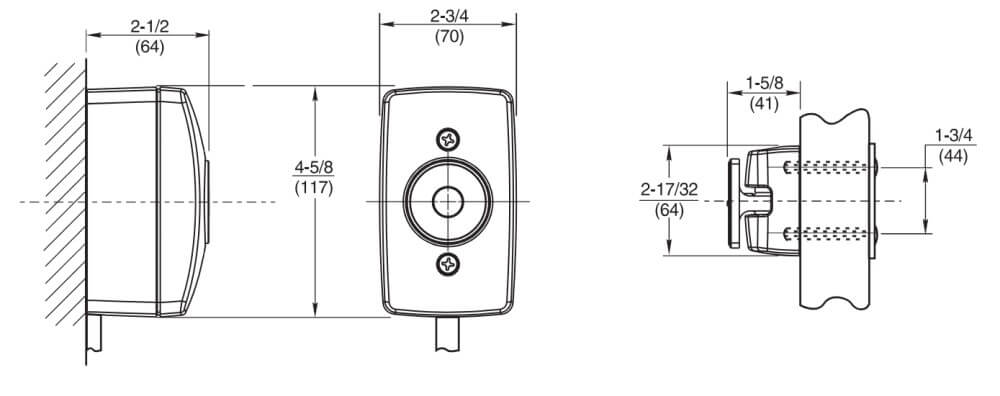

    • Total projection: 4-1/8"
    • Mounting requirements: 1-1/2" deep adapter housing
    • Wall must be properly reinforced
    • Tri-volt (120VAC, 24VAC/DC, 12VDC)
    • 25-40 lbs. holding force
    • For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC, 240VAC

    Benefits:

    • Doors remains open unless electromagnetic holder is released by alarm or smoke detector
    • Fail safe operation; power failure releases door to close

    Certification:

    • ANSI/BHMA A156.15, Grade 1
    • CAL FIRE, 3550-0047:0001
    • UL-cUL Listed

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

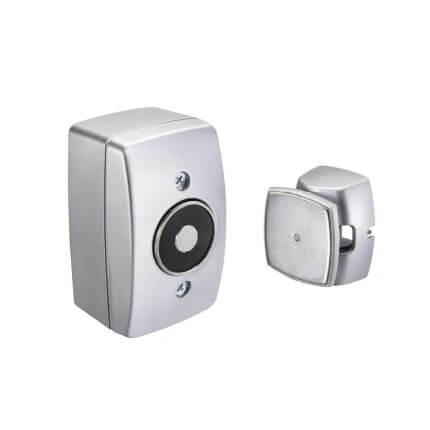

    Click here to view Rixson 994M Electromagnetic Door Holder, Wall Mounted Adjustable Armature

      • Weight
        4 lbs
      • SKU
        RX-996M-613e
    • QuickShip
      No
    • Manufacturer
      Rixson
    • Voltage
      120VAC, 24VAC/DC, 12VDC
    • Description
      • Series
        Electromagnetic Door Holder/Releases
      • BHMA Grade
        Grade 1
      • Mounting Type
        Wall Mounted
    • Finishes
      • Finish
        Dark Satin Bronze, Equiv (613e), Dull Bronze Painted (691), Black Painted (693), Gold Painted (696), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Aluminum Painted (689), Dark Bronze Painted (690)
    • Compliance Details
      • Compliance Details
        Ul-cUL Listed, CAL FIRE, 3550-0047:0001
      • ANSI Designation
        ANSI/BHMA A156.15, Grade 1
      • Warranty
        2 Year Limited Warranty
