Rixson H40 Series, Floor Door Closer, Center Hung, Double Acting

Rixson 40H Series, Floor Door Closer, Center Hung, Double Acting, Non-hold Open, Bright Brass Finish
Rixson

For optimal mechanical support and control of a door, the Rixson EH28 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This works perfectly for thick, extra heavy door installation for interior or exterior doors weighing up to 1000 lbs.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      RX-H40N-605
    • Market price:$6,880.57
      • save 25%
    • Starting price: Price: $5,160.43 per item
    Additional discounts will be applied when added to cart!


    For optimal mechanical support and control of a door, the Rixson EH28 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This works perfectly for thick, extra heavy door installation for interior or exterior doors weighing up to 1000 lbs.

    Features:

    • Double-acting, non-handed
    • Interior or exterior doors (primary means of egress should not use double-acting closers) weighing up to 1000lbs.
    • H340 top pivot included
    • For thick, extra heavy doors (2" min. thickness)
    • Adjustable closing speed valves for each direction of door swing
    • Mechanism returns door to center
    • Auxiliary door stop required, overhead or floor type
    • Not allowed for fire rated doors
    • Available with floor plate or threshold installation
    • Steel cement case
    • Door sizes up to 4'0" x 8'6" (1219 x 2591mm)
    • With 587 Arm Variants Available
      • Special side load arm for 1-3/4" thick doors
      • Allows pivot point to be moved away from pivot edge of door – minimum 2-3/4" backset

    Benefits:

    • Aesthetically appealing way to support and control the door
    • Constructed with robust materials and internal components for long life and consistent operation
    • Weight of door is supported by floor closer
    • Thrust bearing for greater load capacity

    Optional Features:

    • Cold weather fluid option – (not available for closers with delayed action)
    • Sealed closer option
    • Extended spindles available in 1/2" increments up to 2" longer than standard (please state on the note)
    • Door Opening Degree Option - this only applies to automatic hold open variants, please disregard if choosing non-hold variants

    Certification:

    • Certain models meet ANSI A117.1 (PH prefix)

    PRICED PER UNIT

    This product has a 10-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 30 and 40 Series, Floor Door Closer, Center Hung, Double Acting

      • SKU
        RX-H40N-605
    • QuickShip
      No
    • Manufacturer
      Rixson
    • MPN
      H40
    • Description
      • Series
        Norton H40 Series
      • Handing
        Left Handed
    • Door Description
      • Door Weight
        Up to 1000 LB
      • Door Opening Degree
        90°, 100°
    • Features
      • Function
        Non-hold open, Automatic Hold Open, Non-hold Open, w/ 587 Arms, Automatic Hold Open, w/ 587 Arms
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Dark Satin Bronze, Equiv (613e), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Warranty
        10 Year Limited Warranty

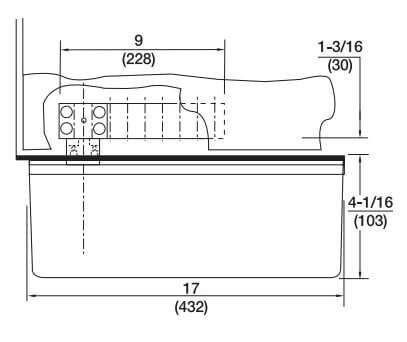

    H40 with 587 Arm
