Rixson HM51 Series, Door Closer, Hollow Metal Door And Frame Prep

Rixon HM51 Series, Door Closer, Hollow Metal Door And Frame Prep, 36" Door Width, Non-hold Open w/ Backcheck, Bright Brass Finish
Rixson

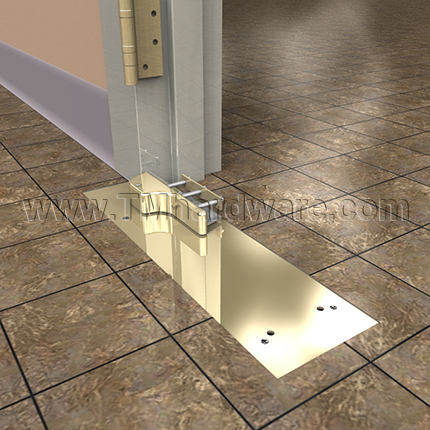

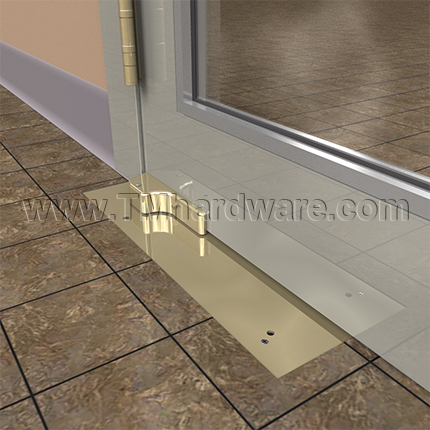

For optimal mechanical support and control of a door, the Rixson HM51 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This works perfectly for hollow metal door and frame installation for interior doors weighing up to 250lbs.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      RX-HM5103NBC-605
    • Market price:$3,968.56
      • save 25%
    • Starting price: Price: $2,976.42 per item
    Additional discounts will be applied when added to cart!


    For optimal mechanical support and control of a door, the Rixson HM51 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This works perfectly for hollow metal door and frame installation for interior doors weighing up to 250lbs.

    Features:

    • Single acting, handed
    • Interior doors (1-3/4" hollow metal doors & frames)

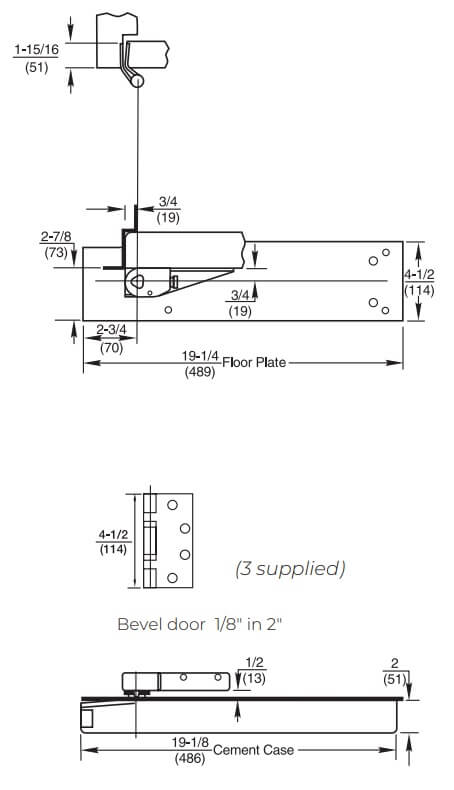

    • Designed for stock hollow metal doors and frames with standard weight 4-1/2" hinge preparation
    • Surface mounted bottom arm with thru bolts
    • Doors will swing 5° beyond hold open point
    • Separate independent valves for closing speed, latch speed, and backcheck
    • Available with floor plate or threshold installation
    • Interchangeable spindle adapters
    • Cycolac, rust proof cement case

    Benefits:

    • Aesthetically appealing way to support and control the door
    • Constructed with robust materials and internal components
    • Concealment in-floor provides vandal resistance
    • Multiple valves provide enhanced control
    • Ideal for upper levels of multi-story buildings due to shallow depth design
    • Weight of door is supported by floor closer

    Optional Features:

    • Delayed action option –  (non-hold open closers only) Closer will not have backcheck
    • Extended spindles available in 1/2" increments up to 2" longer than standard (please state on the note)
    • Automatic Hold Open specify 90°, 105° , (Option not applicable for Non-hold open)

    Certification:

    • Certain models UL Listed (F prefix)

    PRICED PER UNIT

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson Q51 Series, Door Closer, 3/4" Offset, Quick Install

      • SKU
        RX-HM5103NBC-605
    • QuickShip
      No
    • Manufacturer
      Rixson
    • Door Width
      36" (914mm), 42" (1067mm), 48" (1219mm)
    • Description
      • Series
        Norton 50 Series
      • Handing
        Right Handed, Left Handed
    • Door Description
      • Door Weight
        Up to 250 LB
      • Door Opening Degree
        N/A, 90°, 105°
    • Features
      • Function
        Non-hold Open w/ Backcheck, Automatic Hold Open w/ Backcheck, Fire Rated, Non-hold Open w/ Backcheck
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Dark Satin Bronze, Equiv (613e), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Warranty
        2 Year Limited Warranty
