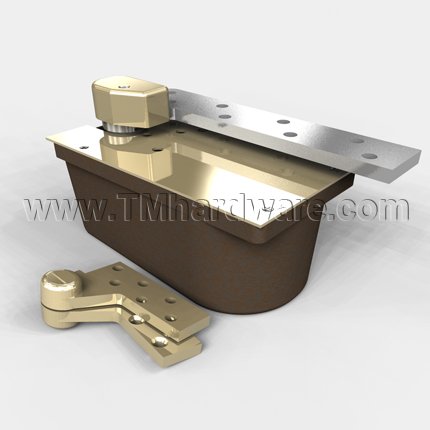

Rixson L27 Series, Floor Door Closer, 3/4" Offset, Extra Heavy Duty, Lead Lined, 1-3/4" Door

Rixson L27 Series, Floor Door Closer, 3/4" Offset, Extra Heavy Duty, Lead Lined, 1-3/4" Door, Non-hold open, Bright Brass Finish
Rixson

For optimal mechanical support and control of a door, the Rixson L27 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This door closer suited for lead-lined interior or external doors weighing up to 1500 pounds, heavy door weights, and high traffic usage.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      RX-L27N-605
    • Market price:$4,417.17
      • save 25%
    • Starting price: Price: $3,312.88 per item
    Additional discounts will be applied when added to cart!


    For optimal mechanical support and control of a door, the Rixson L27 Series, Floor Door Closer is one of the best options. For enduring performance and dependability, it is made to comply with the laws of physics. The floor and bottom arm support the door's weight. This door closer suited for lead-lined interior or external doors weighing up to 1500 pounds, heavy door weights, and high traffic usage.

    Features:

    • Exterior or interior doors
    • Single acting, handed
    • L180 top pivot included
    • Separate independent valves for closing speed, latch speed, and backcheck
    • Vertical door adjustment
    • Available with floor plate or threshold installation
    • Cast iron cement case
    • Heavy-duty bottom arm and top pivot with screw holes spaced to straddle lead lining, or for extra heavy or very high traffic doors
    • For arch top doors or applications where an L180 top pivot cannot be used, supply at least two each ML19-load bearing intermediate pivots, mounted together at the top of the vertical edge

    Benefits:

    • Aesthetically appealing way to support and control the door
    • Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
    • Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
    • Built-in positive dead stop prevents door from swinging beyond the desired opening degree
    • Multiple valves provide precision adjustment and enhanced control
    • Weight of door is supported by floor closer
    • Additional thrust bearing for greater load capacity

    Optional Features:

    • Delayed action option –  (non-hold open closers only)
    • Cold weather fluid option – (not available for closers with delayed action)
    • Sealed closer option
    • Extended spindles available in 1/2" increments up to 2" longer than standard (please state on the note)
    • Opening Degree Option is not applicable on functions with an existing degree
    • ML19 intermediate pivot(s) required (order separately)

    Certification:

    • ANSI/BHMA A156.4, Grade 1
    • Buy American Act
    • Certain models UL Listed
    • Certain models meet ANSI A117.1

    PRICED PER UNIT

    This product has a 10-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Rixson 427 Series, Floor Door Closer, 3/4" Offset, Heavy Duty

      • SKU
        RX-L27N-605
    • QuickShip
      No
    • Manufacturer
      Rixson
    • MPN
      L27
    • Optional Feature
      Standard, Delayed Action (DA), Cold Weather Fluid (CFW)
    • Description
      • Series
        Norton L27 Series
      • Closer Performance
        Heavy Duty
      • BHMA Grade
        Grade 1
      • Handing
        Right Handed, Left Handed
    • Door Description
      • Door Weight
        Up to 1500 LB
      • Door Opening Degree
        85°, 90°, 95°, 105°
    • Features
      • Function
        Non-hold open, Selective Hold Open, fire-rated, Non-hold Open, 180° opening, Non-hold Open, 180° opening, Automatic Hold Open, Fire-rated, 180° opening, Non-hold Open
    • Finishes
      • Finish
        Bright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Dark Satin Bronze, Equiv (613e), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP)
    • Compliance Details
      • Warranty
        10 Year Limited Warranty
